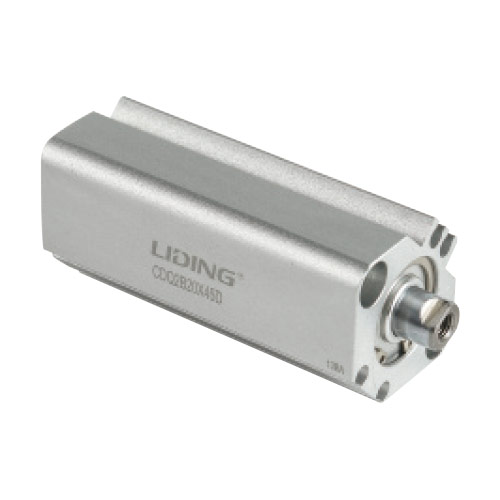

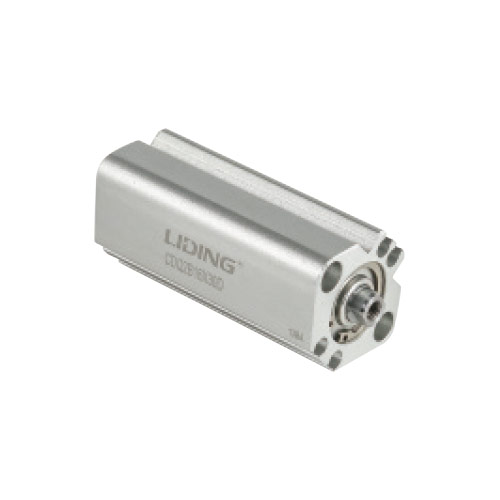

CQ2 Series Standard Cylinder
Product Details

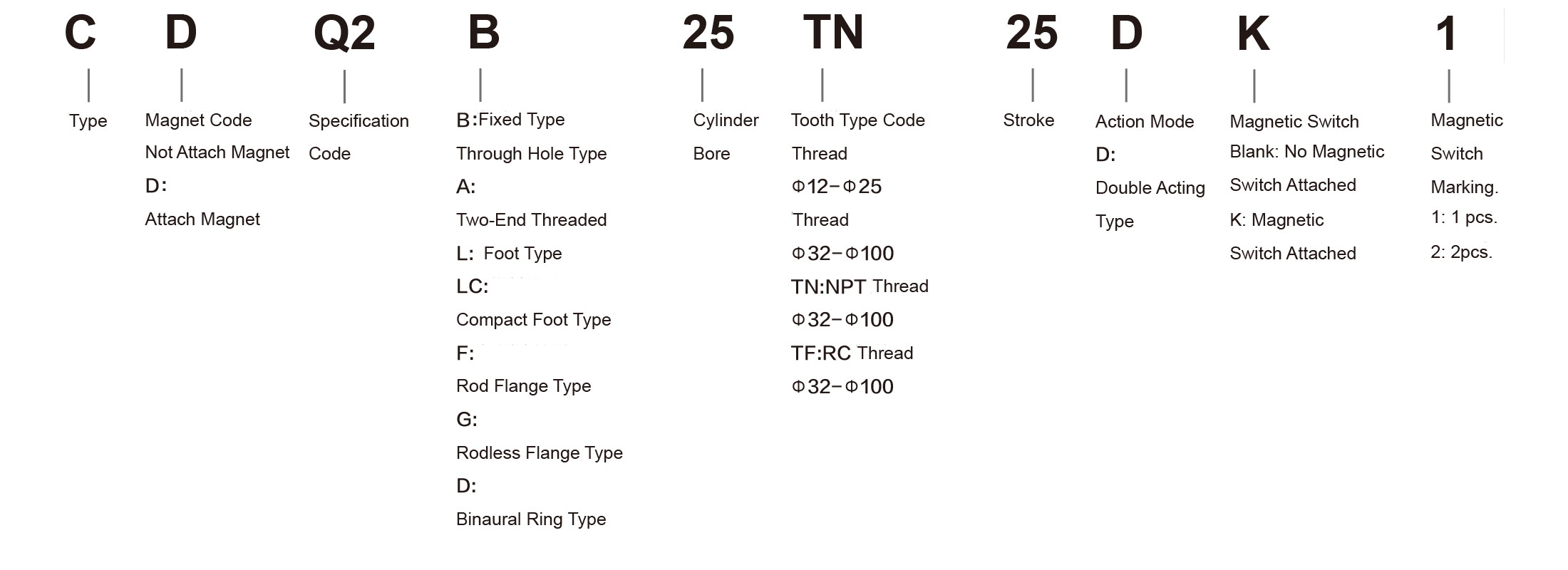

Ordering Code
Specification
| Bore (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Motion Pattern | Double Action | |||||||||
| Working Medium | Air | |||||||||
| Ensured Pressure Resistance | 1.5MPa | |||||||||
| Max. OperatingVoltage | I.OMPa | |||||||||
| Min. OperatingVoltage | 0.07MPa | 0.05MPa | ||||||||
| Operating Temperature Range | Nonmagnetic switch-10～70°C 1With magnetic switch-10～60°C | |||||||||
| Operating Speed Range | 50～500mm/s | |||||||||
| Joint Pipe Bore | M5 | 1/8 | 1/4 | 3/8 | ||||||
Stroke
| Bore（mm） | Standard Stroke | |||||||||||
| 12、16 | 5 | 10 | 15 | 20 | 25 | 30 | ||||||
| 20、25 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | ||
| 32、40 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 |
| 50、 63、 80、 100 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 75 | 100 | |

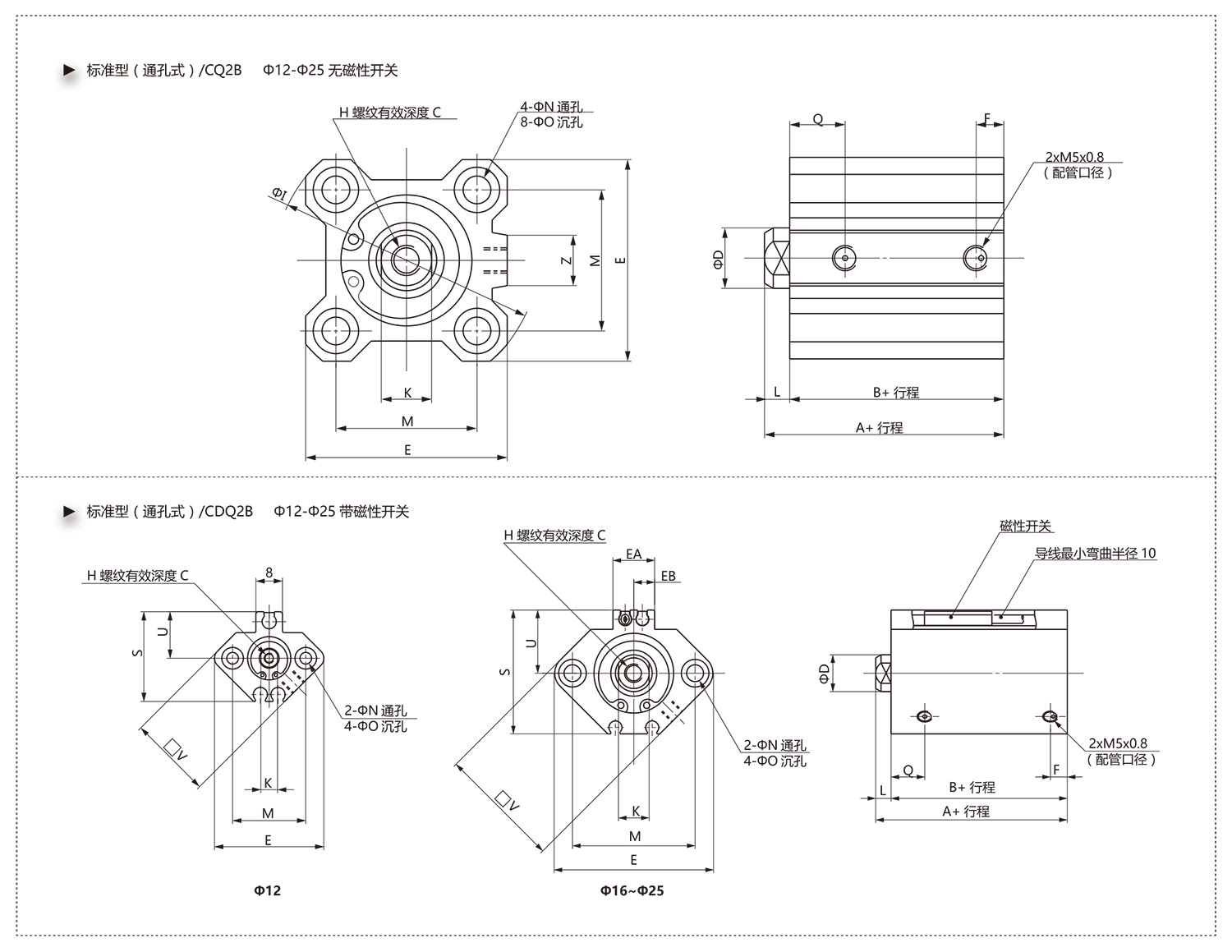

Overall Dimension
Dimension Sheet
|
CQ2B Φ12-Φ25 No magnetic switch |
||||||||||||||||
|
Bore (mm) |
Travel range (mm) |
A |
B |
C |
D |
E |
F |
H |
I |
K |
L |
M |
N |
O |
Q |
Z |
|
12 |
5-30 |
20.5 |
17 |
6 |
6 |
25 |
5 |
M3x0.5 |
32 |
5 |
3.5 |
15.5 |
3.5 |
6.5 Deep 3.5 |
7.5 |
|
|
16 |
5-30 |
22 |
18.5 |
8 |
8 |
29 |
5.5 |
M4x0.7 |
38 |
6 |
3.5 |
20 |
3.5 |
6.5 Deep 3.5 |
8 |
10 |
|
20 |
5-50 |
24 |
19.5 |
7 |
10 |
36 |
5.5 |
M5x0.8 |
47 |
8 |
4.5 |
25.5 |
5.5 |
9 Deep 7 |
9 |
10 |
|
25 |
5-50 |
27.5 |
22.5 |
12 |
12 |
40 |
5.5 |
M6x1.0 |
52 |
10 |
5 |
28 |
5.5 |
9 Deep 7 |
11 |
10 |
|
CDQ2B Φ12-Φ25 No magnetic switch |
||||||||||||||||||||
|
Bore (mm) |
Travel range (mm) |
A |
B |
C |
D |
E |
EA |
EB |
F |
H |
I |
K |
L |
M |
N |
O |
Q |
S |
U |
V |
|
12 |
5-30 |
31.5 |
28 |
6 |
6 |
33 |
— |
— |
6.5 |
M3x0.5 |
32 |
5 |
3.5 |
22 |
3.5 |
6.5 Deep 3.5 |
11 |
27.5 |
14 |
25 |
|
16 |
5-30 |
34 |
30.5 |
8 |
8 |
37 |
13.2 |
6.6 |
5.5 |
M4x0.7 |
38 |
6 |
3.5 |
28 |
3.5 |
6.5 Deep 3.5 |
10 |
29.5 |
15 |
29 |
|
20 |
5-50 |
36 |
31.5 |
7 |
10 |
47 |
13.6 |
6.8 |
5.5 |
M5x0.8 |
47 |
8 |
4.5 |
36 |
5.5 |
9 Deep 7 |
10.5 |
35.5 |
18 |
36 |
|
25 |
5-50 |
37.5 |
32.5 |
12 |
12 |
52 |
13.6 |
6.8 |
5.5 |
M6x1.0 |
52 |
10 |
5 |
40 |
5.5 |
9 Deep 7 |
11 |
40.5 |
21 |
40 |

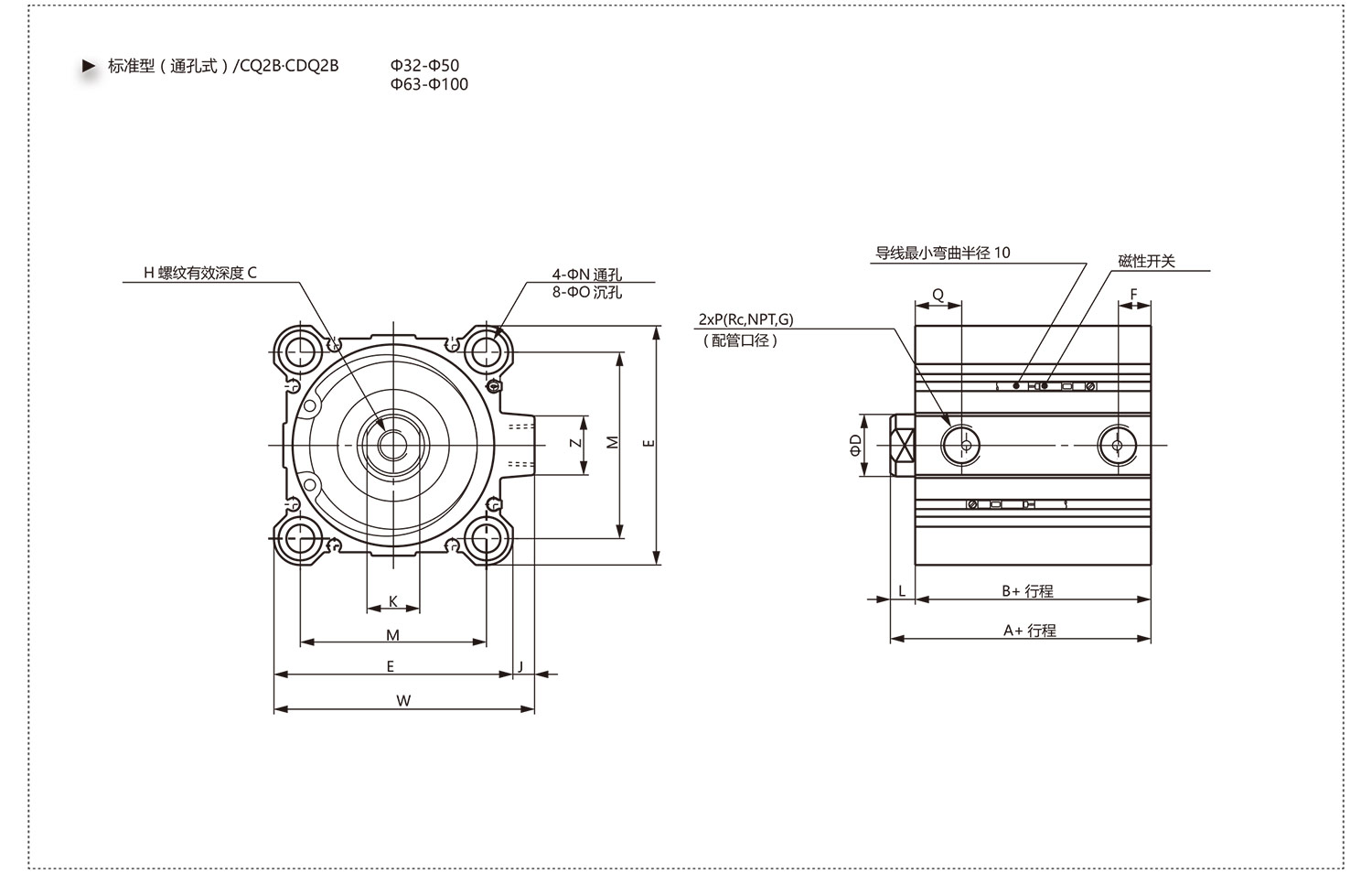

Overall Dimension
Dimension Sheet
|
Type |
Standard Type |
||||||||||||||||||||||
|
Bore (mm) |
Travel Range (mm) |
Non-Magnetic Switch |
Magnetic Switch |
C |
D |
E |
H |
J |
K |
L |
M |
N |
0 |
W |
Z |
||||||||
|
A |
B |
F |
P |
Q |
A |
|
F |
P |
Q |
||||||||||||||
| 32 |
5 |
30 |
23 |
5.5 |
M5x0.8 |
11.5 |
40 |
33 |
7.5 |
1/8 |
10.5 |
13 |
16 |
45 |
M8x1.25 |
4.5 |
14 |
7 |
34 |
5.5 |
9深7 |
49.5 |
14 |
| 10-50 | |||||||||||||||||||||||
|
75,100 |
40 | 33 |
7.5 |
1/8 |
10.5 |
||||||||||||||||||
| 40 |
5-50 |
36.5 |
29.5 |
8 |
1/8 |
11 |
46.5 |
39.5 |
8 |
1/8 |
11 |
13 |
16 |
52 |
M8x1.25 |
5 |
14 |
7 |
40 |
5.5 |
9深7 |
57 |
15 |
|
75,100 |
46.5 |
39.5 | |||||||||||||||||||||
| 50 |
10-50 |
38.5 |
30.5 |
10.5 |
1/4 |
10.5 |
48.5 |
40.5 |
10.5 |
1/4 |
10.5 |
15 |
20 |
64 |
M 10x1.5 |
7 |
17 |
8 |
50 |
6.6 |
11深8 |
71 |
19 |
|
75,100 |
48.5 |
40.5 | |||||||||||||||||||||
| Type | Standard Type | |||||||||||||||||||
| Bore (mm) | Travel Range (mm) | Non-Magnetic Switch | Magnetic Switch | C | D | E | F | H | J | K | L | M | N | 0 | P | Q | W | Z | ||
| A | B | A | B | |||||||||||||||||
| 63 | 10～50 | 44 | 36 | 54 | 46 | 15 | 20 | 77 | 10.5 | M10x1.5 | 7 | 17 | 8 | 60 | 9 | 14 Deep 10.5 | 1/4 | 15 | 84 | 19 |
| 75.1 | 54 | 46 | ||||||||||||||||||
| 80 | 10～50 | 53.5 | 43.5 | 21 | 53.5 | 21 | 25 | 98 | 12.5 | M16x2.0 | 6 | 22 | 10 | 77 | 11 | 17.5 Deep 13.5 | 3/8 | 16 | 104 | 25 |
| 75.1 | 63.5 | 53.5 | ||||||||||||||||||
| 100 | 10～50 | 53.5 | 53 | 27 | 63 | 27 | 30 | 117 | 13 | M20x2.5 | 6.5 | 27 | 12 | 94 | 11 | 17.5 Deep 13.5 | 3/8 | 23 | 123.5 | 25 |
| 75.100 | 75 | 63 | ||||||||||||||||||
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China CQ2 Series Standard Cylinder Suppliers and CQ2 Series Standard Cylinder company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our CQ2 Series Standard Cylinder are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
