Integrated Machine Series Special Cylinder MAC16x160-S-F1 Suppliers

Integrated Machine Series Special Cylinder MAC16x160-S-F1

Integrated Machine Series Special Cylinder MAC16x160-S-F1

Product Details

0
Views: 854

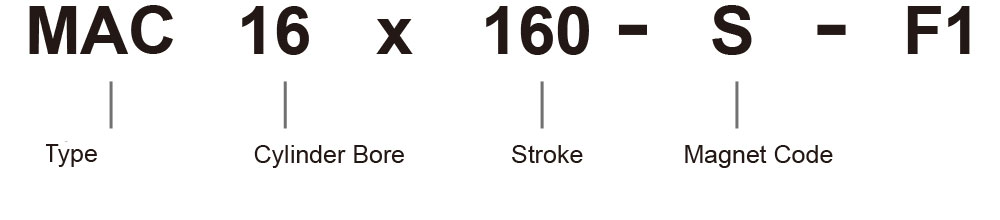

Ordering Code







Specification



Bore (mm) 16
Motion Pattern Double Action
Working Medium Air
Buffer Form Buffer Spacer
OperatingVoltage Range 1~9Kgf/cm2
Ensured Pressure Resistance 13.5Kgf/cm2
Operating Temperature Range 0~70℃
Operating Speed Range 500~800mm/s
Pipe Outer Diameter Φ3.17mm
Joint Pipe Bore M5x0.8

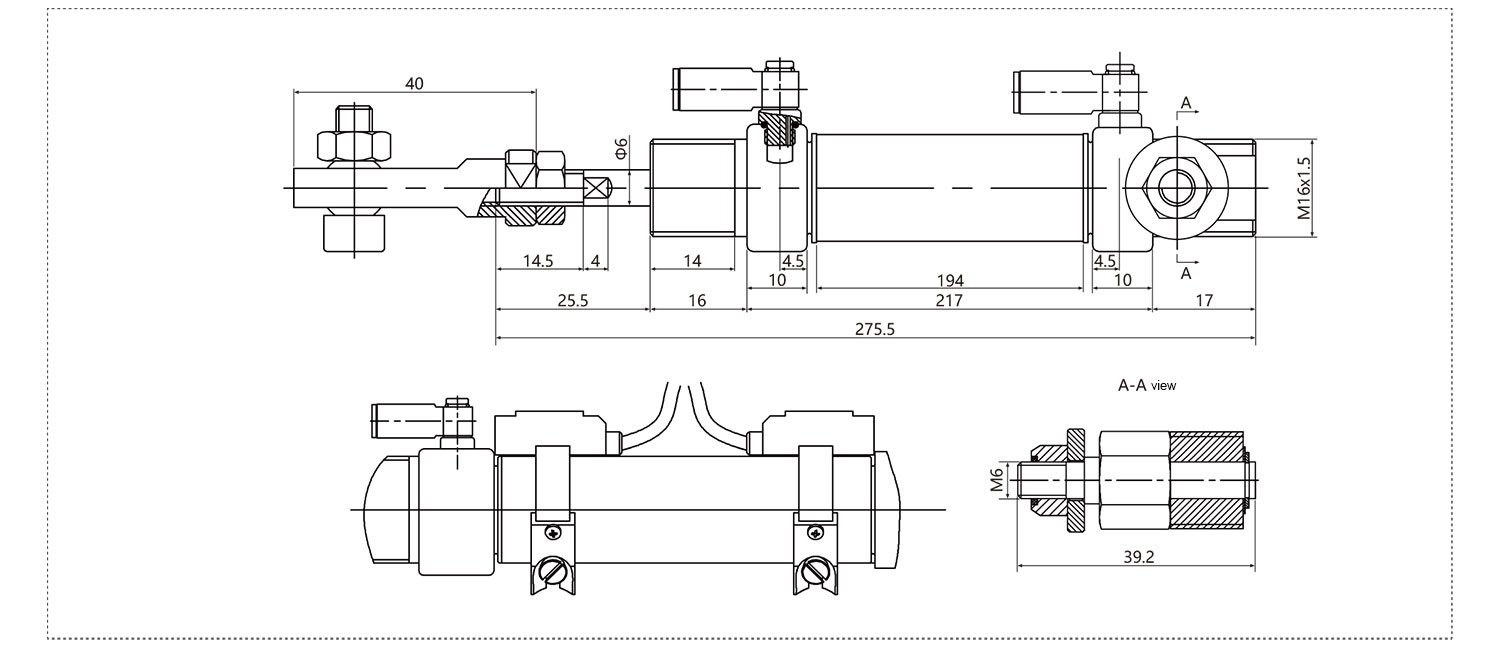

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Integrated Machine Series Special Cylinder MAC16x160-S-F1 Suppliers and Integrated Machine Series Special Cylinder MAC16x160-S-F1 company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Integrated Machine Series Special Cylinder MAC16x160-S-F1 are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
