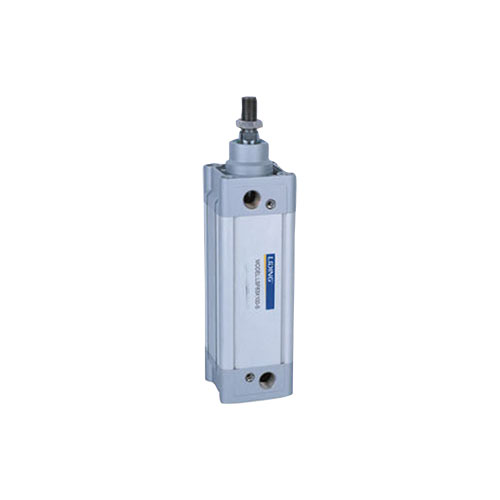

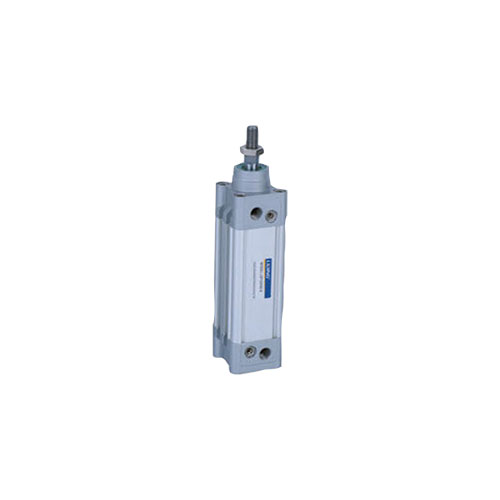

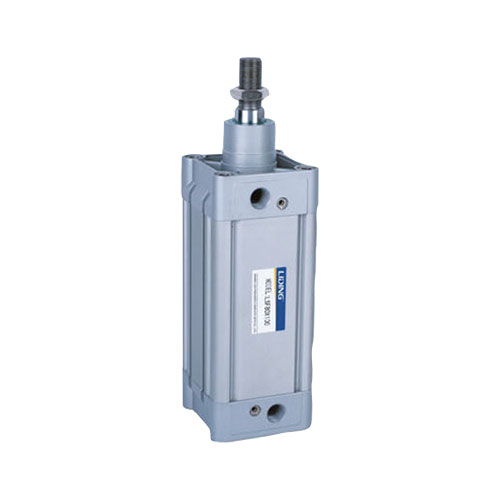

LSF Series Standard Cylinder（ISO15552:2004)
Product Details

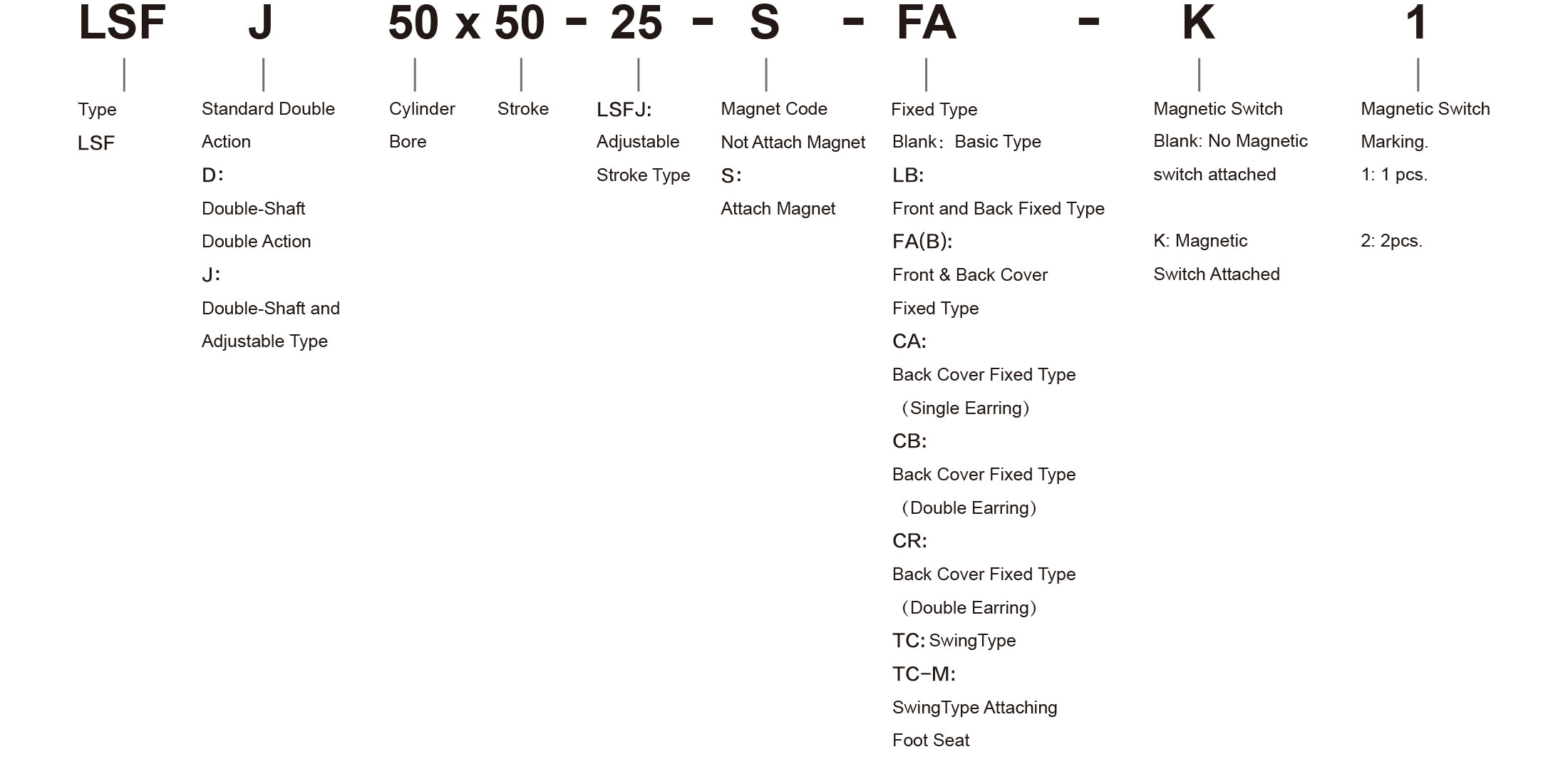

Ordering Code
Specification
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Motion Pattern | Double Action | |||||
| Working Medium | Air | |||||
| ※Fixed Type | Basic Type. FA Type. FB Type. CA Type. CB Type.CR Type. LB Type. Type. TC-M Type | |||||
| OperatingVoltage Range | 1～9Kgf/cm² | |||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | |||||
| Operating Temperature Range | 0～70°C | |||||
| Operating Speed Range | 500～800mm/s | |||||
| Buffer Form | Adjustable Buffer | |||||
| Buffer T ravel | 24 | 32 | ||||
| Joint Pipe Bore | G1/8 | G1/4 | G3/8 | G1/2 | ||
※LSFD、LSFJ Fixed Type：FA 、 FB 、 LB 、 TC 、 TC-M

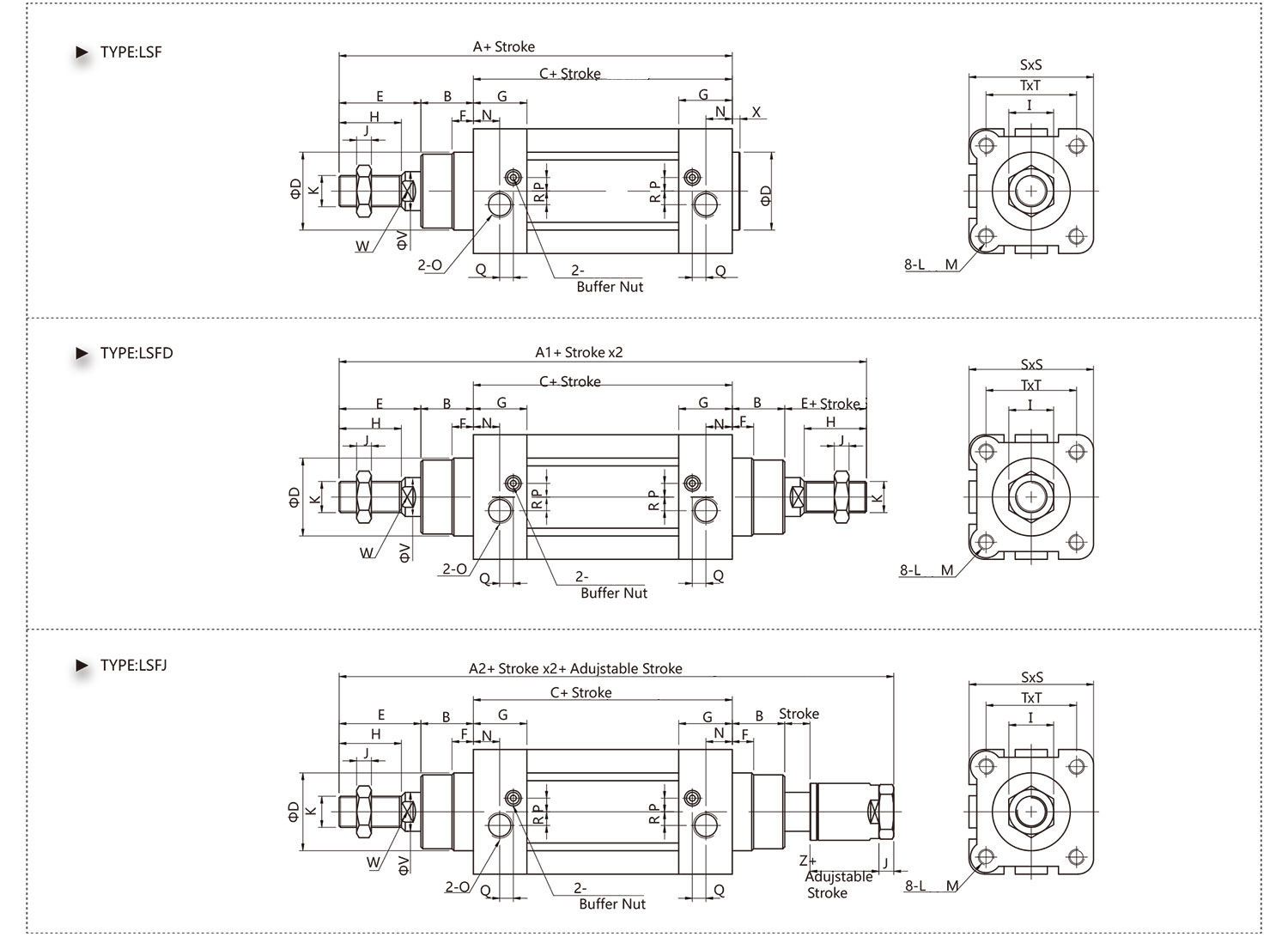

Overall Dimension
Dimension Sheet
| Symbol/Bore(mm) | A | A1 | A2 | B | C | D | E | F | G | H | I | J | K | L |
| 32 | 142 | 190 | 185 | 16 | 94 | 30 | 32 | 10 | 25 | 22 | 17 | 6 | M10x1.25 | M6 |
| 40 | 159 | 213 | 207 | 20 | 105 | 35 | 34 | 10 | 29.5 | 24 | 17 | 7 | M12x1.25 | M6 |
| 50 | 175 | 244 | 233 | 27 | 106 | 40 | 42 | 10 | 32 | 32 | 23 | 8 | M16x1.5 | M8 |
| 63 | 190 | 258 | 247 | 26 | 122 | 45 | 42 | 10 | 36 | 32 | 23 | 8 | M16x1.5 | M8 |
| 80 | 214 | 301 | 288 | 35 | 127 | 45 | 52 | 10 | 37 | 40 | 30 | 10 | M20x1.5 | M10 |
| 100 | 229 | 321 | 308 | 40 | 137 | 55 | 52 | 10 | 39 | 40 | 30 | 10 | M20x1.5 | M10 |
| 125 | 277 | 394 | 378 | 46 | 160 | 60 | 71 | 10 | 43.5 | 54 | 41 | Ho | M27x2 | M12 |
| Symbol/Bore(mm) | M | N | O | P | Q | R | S | T | V | W | X | Z |
| 32 | 12 | 15 | G1/8 | 5 | 3 | 6.5 | 45 | 32.5 | 12 | 10 | 4 | 21 |
| 40 | 12 | 17.5 | G1/4 | 7 | 3 | 7 | 52 | 38 | 16 | 13 | 4 | 21 |
| 50 | 12 | 21 | G1/4 | 7 | 3 | 9 | 64 | 46.5 | 20 | 17 | 4 | 23 |
| 63 | 12 | 23 | G3/8 | 8 | 5 | 9 | 75 | 56.5 | 20 | 17 | 4 | 23 |
| 80 | 15 | 24 | G3/8 | 10 | 5 | 12 | 93 | 72 | 25 | 22 | 5 | 29 |
| 100 | 15 | 26 | G1/2 | 10 | 5 | 14 | 112 | 89 | 25 | 22 | 6 | 29 |
| 125 | 20 | 29 | G1/2 | 10 | 5 | 14 | 134 | 110 | 32 | 27 | 7 | 40.5 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LSF Series Standard Cylinder（ISO15552:2004) Suppliers and LSF Series Standard Cylinder（ISO15552:2004) company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LSF Series Standard Cylinder（ISO15552:2004) are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
