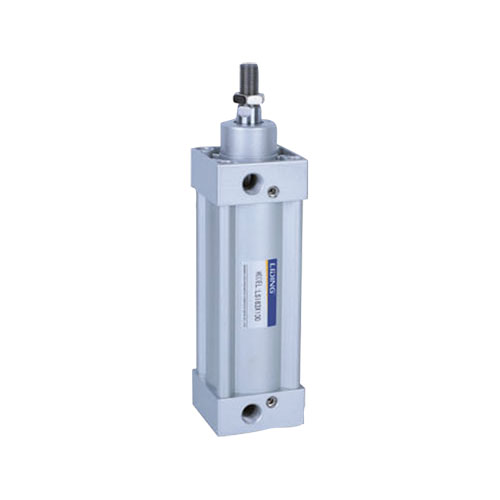

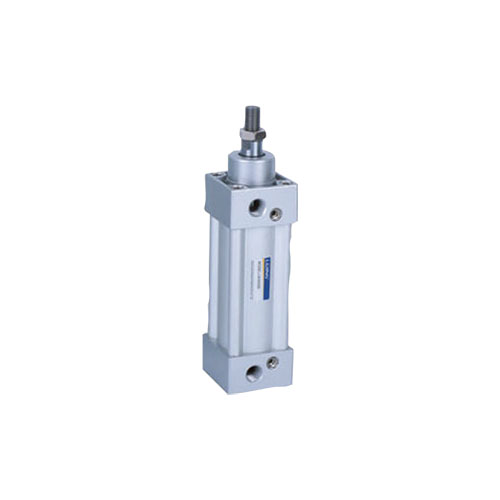

LSI Series Standard Cylinder
Product Details

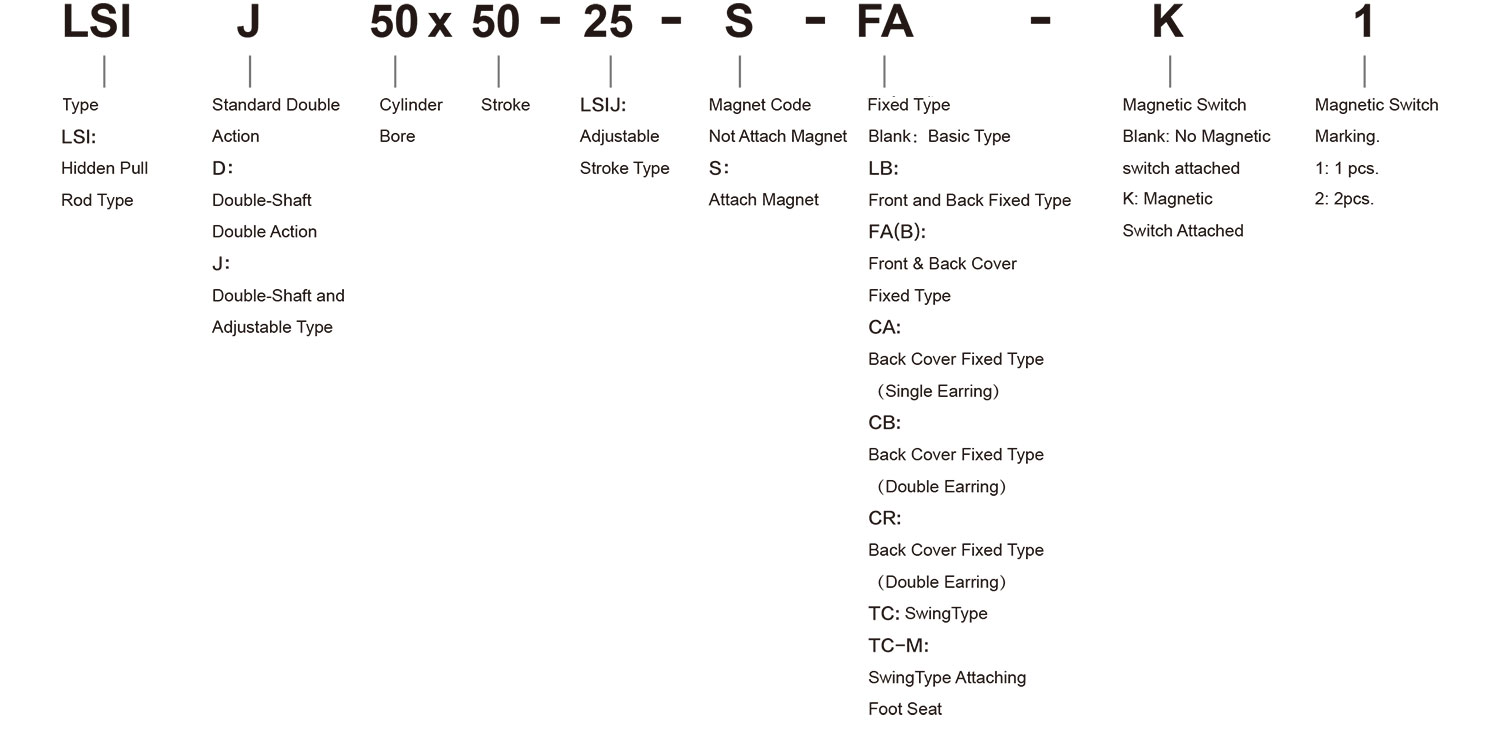

Ordering Code
Specification
Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 |
Motion Pattern | Double Action | ||||||||
Working Medium | Air | ||||||||
※Fixed Type | Basic Type' FA Type. FB Type. CA Type, CB Type. CR Type, LB M/LB Type. TC Type. TOM Type | ||||||||
OperatingVoltage Range | 1~9Kgf/cm² | ||||||||
Ensured Pressure Resistance | 13.5Kgf/cm² | ||||||||
Operating Temperature Range | 0~70℃ | ||||||||
Operating Speed Range | 500~800mm/s | ||||||||
Buffer Form | Adjustable Buffer | ||||||||
Buffer T ravel | 24 | 32 | |||||||
Joint Pipe Bore | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 |
※LSID、LSIJ Fixed Type:FA 、 FB 、 LB 、 TC 、 TC-M

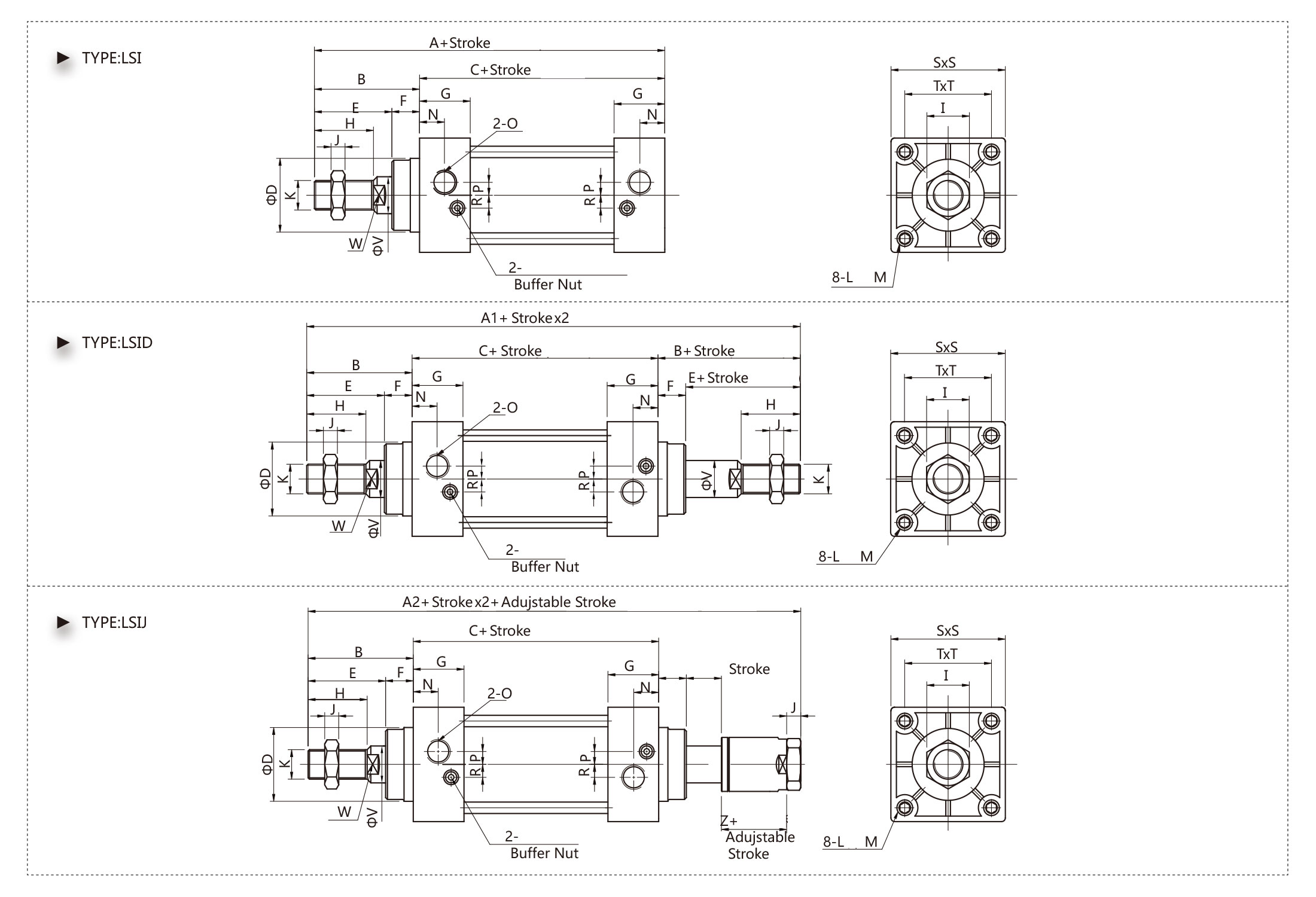

Overall Dimension
Dimension Sheet
Symbol/Bore(mm) | A | A1 | A2 | B | C | D | E | F | G | H | I | J | K | L |
32 | 142 | 190 | 187 | 48 | 94 | 30 | 33 | 15 | 26 | 19.5 | 17 | 6 | M10x1.25 | M6 |
40 | 159 | 213 | 207 | 54 | 105 | 35 | 37 | 17 | 26 | 21 | 17 | M12x1.25 | M6 | |
50 | 175 | 244 | 233 | 69 | 106 | 40 | 45 | 24 | 29.5 | 29 | 23 | 8 | M16x1.5 | M8 |
63 | 190 | 259 | 250 | 69 | 121 | 45 | 45 | 24 | 29.5 | 29 | 23 | 8 | M16x1.5 | M8 |
80 | 214 | 300 | 286 | 86 | 128 | 45 | 56 | 30 | 35 | 40 | 30 | M20x1.5 | M10 | |
100 | 229 | 320 | 308 | 91 | 138 | 55 | 59 | 32 | 35 | 40 | 30 | 10 | M20x1.5 | M10 |
125 | 279 | 398 | 372.5 | 119 | 160 | 60 | 74 | 45 | 46 | 54 | 41 | 13.5 | M27x2 | M12 |
160 | 332 | 484 | 448 | 152 | 180 | 65 | 94 | 58 | 50 | 72 | 55 | 18 | M36x2 | M16 |
200 | 347 | 514 | 472 | 167 | 180 | 107 | 60 | 50 | 55 | 18 | M36x2 | M16 |
Symbol/Bore(mm) | M | O | P | R | S | T | V | W | Z |
32 | 13 | G1/8 | 4 | 6.5 | 46 | 32.5 | 12 | 10 | 21 |
40 | 14 | G1/4 | 4 | 9 | 52 | 38 | 16 | 14 | 21 |
50 | 15.5 | G1/4 | 5 | 10.5 | 65 | 46.5 | 20 | 17 | 23 |
63 | 16.5 | G3/8 | 9 | 12 | 75 | 56.5 | 20 | 17 | 23 |
80 | 19 | G3/8 | 11.5 | 14 | 95 | 72 | 25 | 22 | 29 |
100 | 19 | G1/2 | 17 | 15 | 114 | 89 | 25 | 22 | 29 |
125 | 23 | G1/2 | 14 | 14 | 140 | 110 | 32 | 27 | 35 |
160 | 25 | G3/4 | 15 | 20 | 180 | 140 | 40 | 36 | 40 |
200 | 25 | G3/4 | 15 | 20 | 220 | 175 | 40 | 36 | 40 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LSI Series Standard Cylinder Suppliers and LSI Series Standard Cylinder company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LSI Series Standard Cylinder are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
