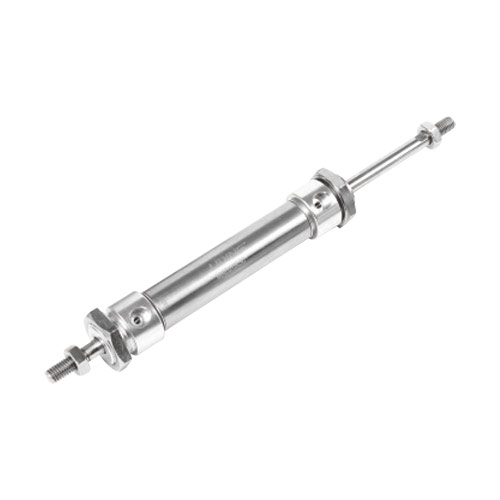

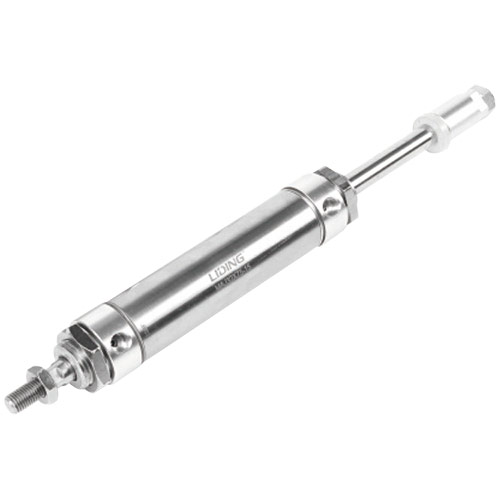

MA Series Stainless Steel Mini Cylinder
Product Details

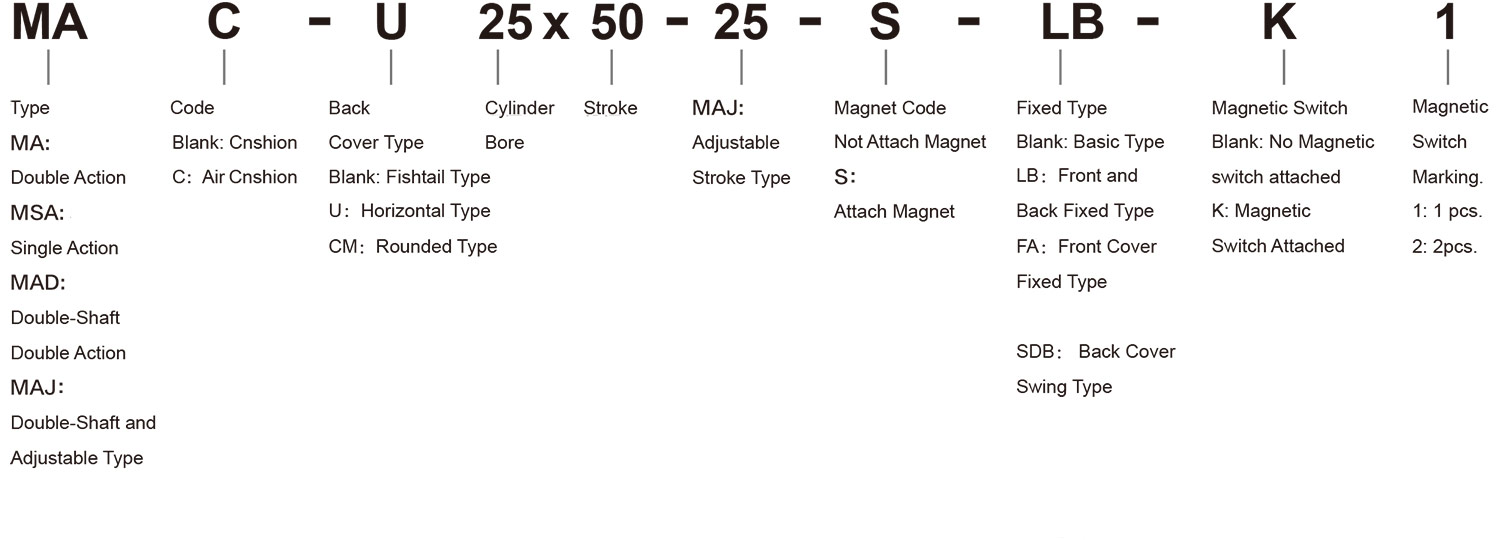

Ordering Code
Specification
| Bore (mm) | 16 | 20 | 25 | 32 | 40 |
| Motion Pattern | Double Action | ||||
| Working Medium | Air | ||||
| ※Fixed Type | BasicType、FAType、LB Type、SDBType | ||||
| OperatingVoltage Range | 1～9Kgf/cm² | ||||
| Ensured Pressure Resisteince | 13.5Kgf/cm² | ||||
| Operating Temperature Range | 0～70℃ | ||||
| Operating Speed Range | 500～800mm/s | ||||
| Buffer Form | Buffer Spacer | ||||
| Joint Pipe Bore | M5x0.8 | G1/8 | |||
Cylinder Theory Output Sheet
| Cylinder I.D. (mm) | 16 | 20 | 25 | 32 | 40 | |||||||||||
| Motion Pattern | Singl- Eaction |
Double Action | mh Singl- Eaction |
Double Action | mh Singl- Eaction |
Double Action | Singl- Eaction |
Double Action | Singl- Eaction |
Double Action | ||||||
| Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
|||||||
| Compression Area (cm²) | 2.01 | 2.01 | 1.81 | 3.14 | 3.14 | 2.64 | 4.9 | 4.9 | 4.12 | 8.04 | 8.04 | 6.9 | 12.56 | 12.56 | 10.55 | |
| Air Pressure (Kgf/cm2) | 1 | － | 2.01 | 1.81 | － | 3.14 | 2.64 | － | 4.9 | 4.12 | － | 8.04 | 6.9 | － | 12.56 | 10.55 |
| 2 | － | 4.02 | 3.62 | 1.57 | 6.28 | 5.28 | 2.45 | 9.8 | 8.24 | 4.02 | 16.08 | 13.8 | 6.28 | 25.12 | 21.1 | |
| 3 | 2.01 | 6.03 | 5.43 | 4.71 | 9.42 | 7.92 | 7.35 | 14.7 | 12.36 | 12.06 | 24.12 | 20.7 | 18.84 | 37.68 | 31.65 | |
| 4 | 4.02 | 8.04 | 7.24 | 7.85 | 12.56 | 10.56 | 12.25 | 19.6 | 16.48 | 20.1 | 32.16 | 27.6 | 31.4 | 50.24 | 42.2 | |
| 5 | 6.03 | 10.05 | 9.05 | 10.99 | 15.7 | 13.2 | 17.15 | 24.5 | 20.6 | 28.14 | 40.2 | 34.5 | 43.96 | 62.8 | 52.75 | |
| 6 | 8.04 | 12.06 | 10.86 | 14.13 | 18.84 | 15.84 | 22.05 | 29.4 | 24.72 | 36.18 | 48.24 | 41.4 | 56.52 | 75.36 | 63.3 | |
| 7 | 10.04 | 14.07 | 12.67 | 17.27 | 21.98 | 18.48 | 26.95 | 34.3 | 28.84 | 44.22 | 56.28 | 48.3 | 69.08 | 87.92 | 73.85 | |
| 8 | － | － | － | 20.41 | 25.12 | 21.12 | 31.85 | 39.2 | 32.96 | 52.26 | 64.32 | 55.2 | 81.64 | 100.48 | 84.4 | |
| 9 | － | － | － | 23.55 | 28.26 | 23.76 | 36.75 | 44.1 | 37.08 | 60.3 | 72.36 | 62.1 | 94.2 | 113.04 | 94.95 | |
Stroke
|
Bore (mm) |
Standard Stroke |
Max. Stroke |
Permissible Stroke |
|||||||||||||
|
16 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
|
|
|
|
|
|
300 |
500 |
|
20 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
|
|
|
|
500 |
650 |
|
25 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
500 |
650 |
|
32 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
500 |
650 |
|
40 |
25 |
50 |
75 |
100 |
125 |
150 |
175 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
500 |
650 |

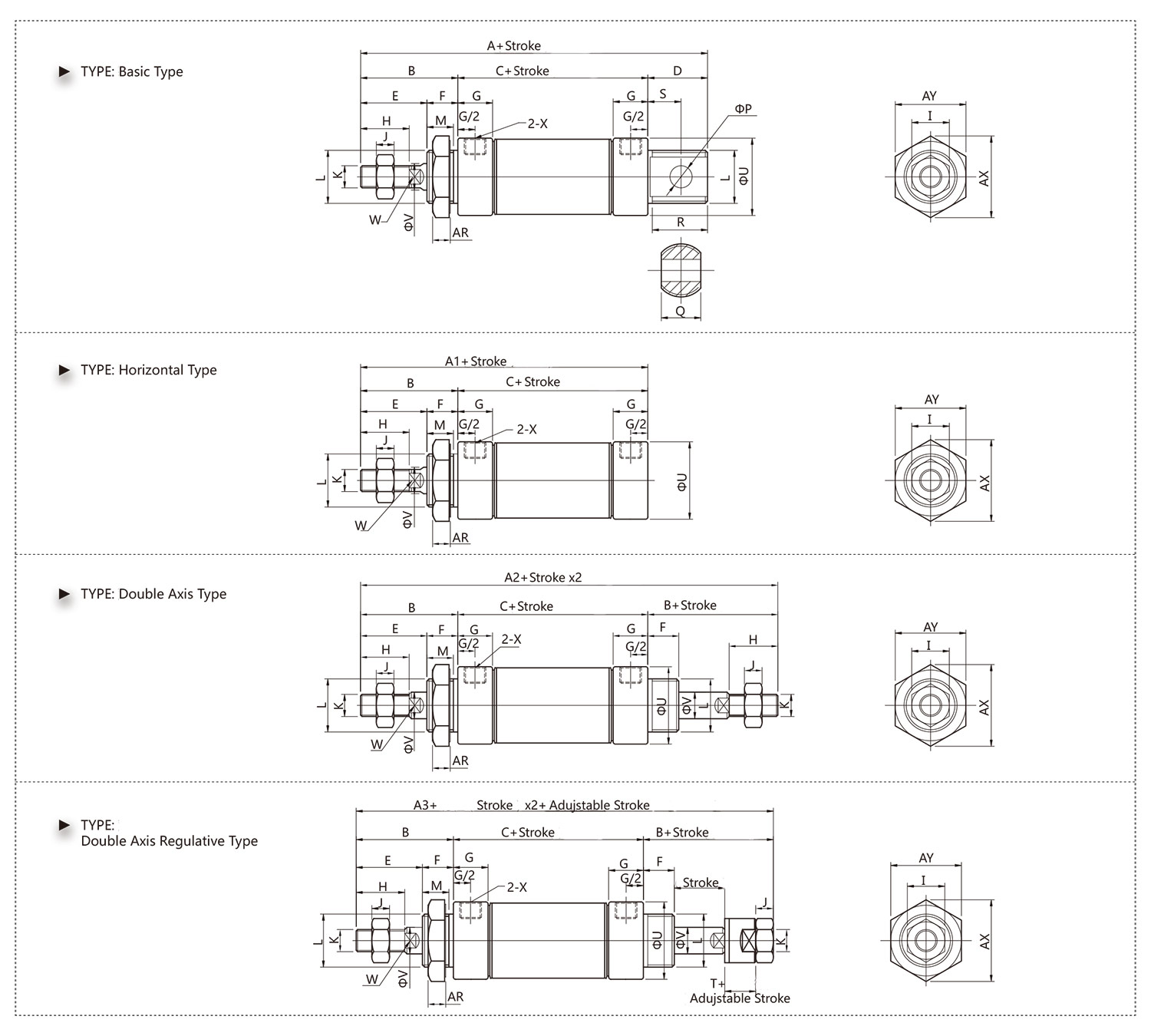

Overall Dimension
Dimension Sheet
|
Symbol/Bore(mm) |
A |
A1 |
A2 |
A3 |
B |
C |
D |
E |
F |
G |
H |
翁 |
J |
K |
|
16 |
114 |
98 |
136 |
135 |
38 |
60 |
16 |
22 |
16 |
10 |
16 |
10 |
5 |
M6 |
|
20 |
137 |
116 |
156 |
153 |
40 |
76 |
21 |
28 |
12 |
16 |
20 |
12 |
6 |
M8 |
|
25 |
141 |
120 |
164 |
161 |
44 |
76 |
21 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
|
32 |
147 |
120 |
164 |
161 |
44 |
76 |
27 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
|
40 |
149 |
122 |
168 |
164 |
46 |
76 |
27 |
32 |
14 |
16.7 |
24 |
17 |
7 |
M 12x1.25 |
|
Symbol/Bore(mm) |
L |
M |
P |
Q |
R |
S |
T |
U |
V |
W |
X |
AR |
AX |
AY |
|
16 |
M 16x1.5 |
14 |
6 |
12 |
14 |
9 |
16 |
21 |
6 |
5 |
M5 |
6 |
25 |
22 |
|
20 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
19 |
27 |
8 |
6 |
G1/8 |
7 |
33 |
29 |
|
25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
21 |
30 |
10 |
8 |
G1/8 |
7 |
33 |
29 |
|
32 |
M24x2 |
12 |
10 |
16 |
25 |
15 |
21 |
35 |
12 |
10 |
G1/8 |
8 |
37 |
32 |
|
40 |
M30x2 |
12 |
12 |
20 |
25 |
15 |
21 |
41.8 |
16 |
14 |
G1/8 |
9 |
47 |
41 |

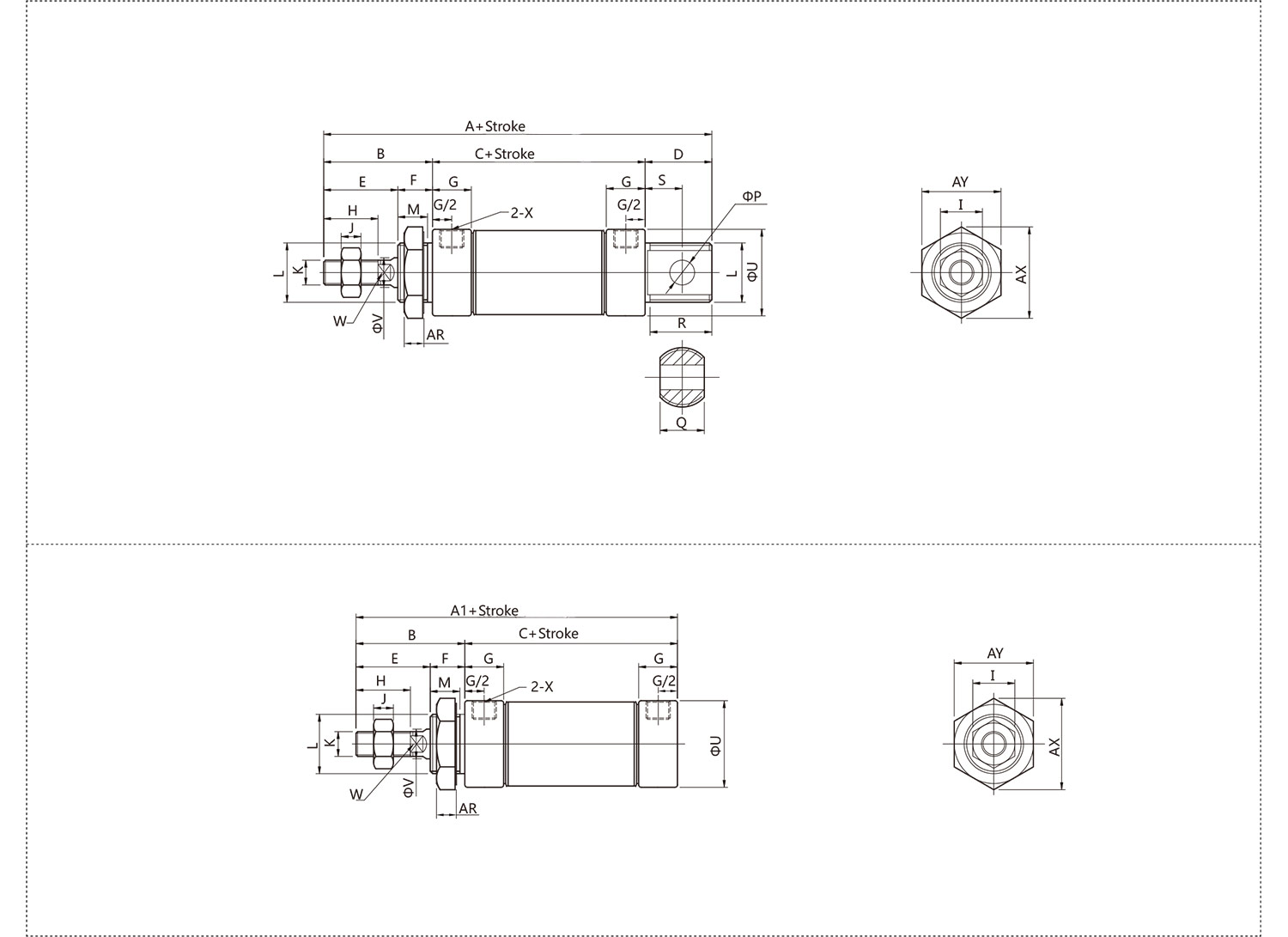

Overall Dimension
Dimension Sheet
| Symbol/Bore(mm) | A | A1 | B | 51-100 | D | E | F | G H | I | J | K | |||
| 0-50 | 51-100 | 0-50 | 51-100 | 0-50 | 51-100 | |||||||||
| 16 | 114 | 139 | 98 | 123 | 38 | 60 | 85 | 16 | 22 | 16 | 10 I 16 | 10 | 5 | M6 |
| 20 | 137 | 162 | 116 | 141 | 40 | 76 | 101 | 21 | 28 | 12 | 16 20 | 12 | 6 | M8 |
| 25 | 141 | 166 | 145 | 44 | 76 | 101 | 21 | 30 | 14 | 16 22 | 17 | 6 | M10x1.25 | |
| 32 | 147 | 172 | 120 | 145 | 44 | 76 | 101 | 27 | 30 | 14 | 16 22 | 17 | 6 | M10x1.25 |
| 40 | 149 | 174 | 122^ | 147 | 46 | 76 | 101 | 32 | 14 | 16.7 24 | 17 | 7 | M12x1.25 | |
| Symbol/Bore(mm) | L | M | P | Q | R | S | U | V | W | X | AR | AX | AY |
| 16 | M 16x1.5 | 14 | 6 | 12 | 14 | 9 | 21 | 6 | 5 | M5 | 6 | 25 | 22 |
| 20 | M22x1.5 | 10 | 8 | 16 | 19 | 12 | 27 | 8 | 6 | G1/8 | 7 | 33 | 29 |
| 25 | M22x1.5 | 12 | 8 | 16 | 19 | 12 | 30 | 10 | 8 | G1/8 | 7 | 33 | 29 |
| 32 | M24x2 | 12 | 10 | 16 | 25 | 15 | 35 | 12 | 10 | G1/8 | 8 | 37 | 32 |
| 40 | M30x2 | 12 | 12 | 20 | 25 | 15 | 41.8 | 16 | 14 | G1/8 | 9 | 47 | 41 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Stainless Steel Mini Cylinder Manufacturers and Stainless Steel Mini Cylinder factory,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Stainless Steel Mini Cylinders are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
