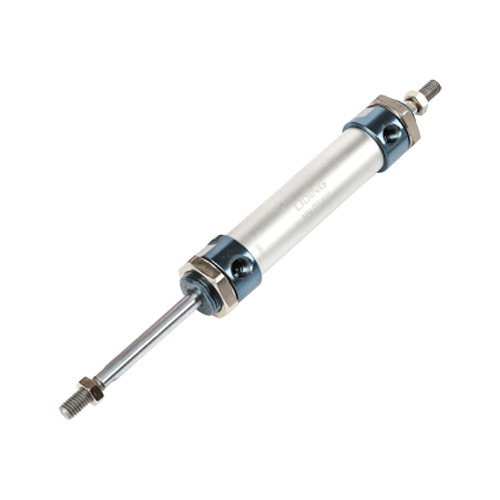

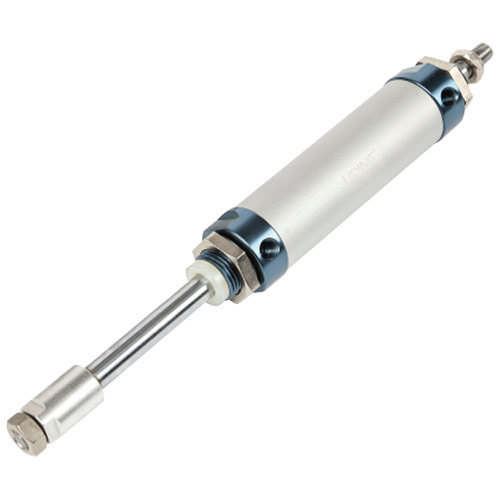

MAL Series Aluminium Mini Cylinder
Product Details

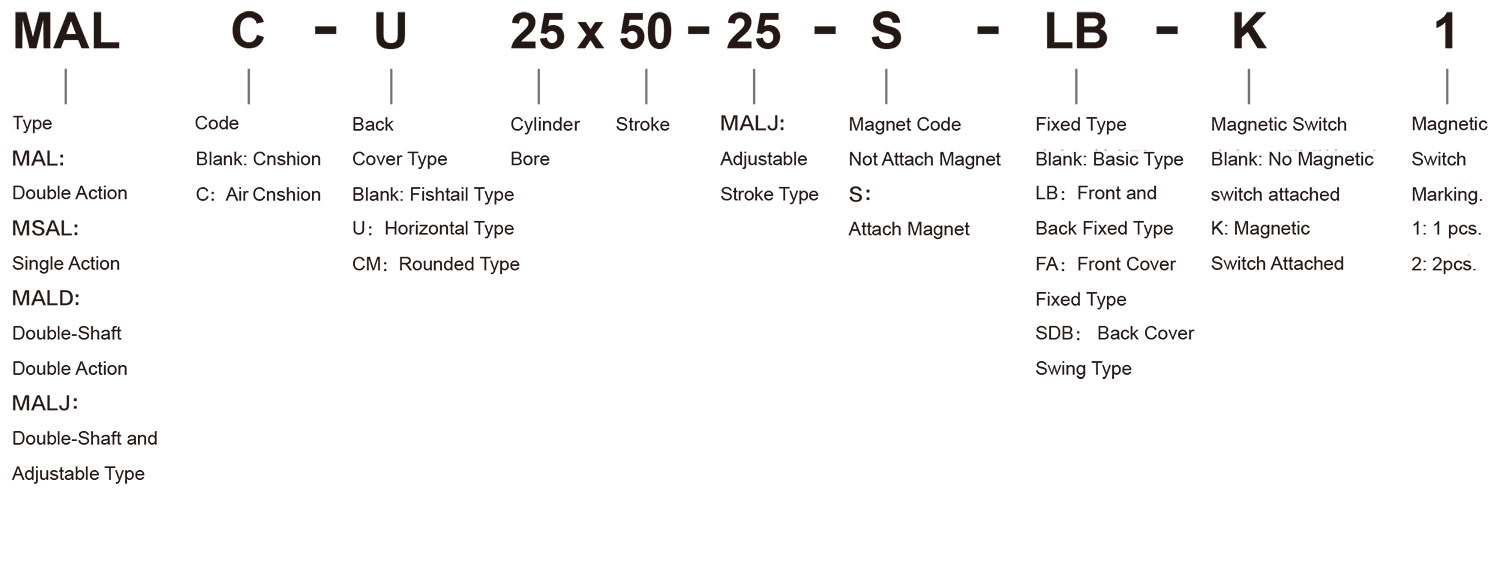

Ordering Code
Specification
| Bore (mm) | 16 | 20 | 25 | 32 | 40 |
| Motion Pattern | Double Action | ||||
| Working Medium | Air | ||||
| ※Fixed Type | Basic Type FA Type LB Type SDBType | ||||
| OperatingVoltage Range | 1～9Kgf/cm² | ||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||||
| Operating Temperature Range | 0～70°C | ||||
| Operating Speed Range | 500～800mm/s | ||||
| Buffer Form | Buffer Spacer | ||||
| Joint Pipe Bore | M5x0.8 | G1/8 | |||
Cylinder Theory Output Sheet
| Cylinder I.D. (mm) | 16 | 20 | 25 | 32 | 40 | |||||||||||
| Motion Pattern | Singl- Eaction |
Double Action | mh Singl- Eaction |
Double Action | mh Singl- Eaction |
Double Action | Singl- Eaction |
Double Action | Singl- Eaction |
Double Action | ||||||
| Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
Extrusion Side |
Pull Side |
|||||||
| Compression Area (cm²) | 2.01 | 2.01 | 1.81 | 3.14 | 3.14 | 2.64 | 4.9 | 4.9 | 4.12 | 8.04 | 8.04 | 6.9 | 12.56 | 12.56 | 10.55 | |
| Air Pressure (Kgf/cm2) | 1 | － | 2.01 | 1.81 | － | 3.14 | 2.64 | － | 4.9 | 4.12 | － | 8.04 | 6.9 | － | 12.56 | 10.55 |
| 2 | － | 4.02 | 3.62 | 1.57 | 6.28 | 5.28 | 2.45 | 9.8 | 8.24 | 4.02 | 16.08 | 13.8 | 6.28 | 25.12 | 21.1 | |
| 3 | 2.01 | 6.03 | 5.43 | 4.71 | 9.42 | 7.92 | 7.35 | 14.7 | 12.36 | 12.06 | 24.12 | 20.7 | 18.84 | 37.68 | 31.65 | |
| 4 | 4.02 | 8.04 | 7.24 | 7.85 | 12.56 | 10.56 | 12.25 | 19.6 | 16.48 | 20.1 | 32.16 | 27.6 | 31.4 | 50.24 | 42.2 | |
| 5 | 6.03 | 10.05 | 9.05 | 10.99 | 15.7 | 13.2 | 17.15 | 24.5 | 20.6 | 28.14 | 40.2 | 34.5 | 43.96 | 62.8 | 52.75 | |
| 6 | 8.04 | 12.06 | 10.86 | 14.13 | 18.84 | 15.84 | 22.05 | 29.4 | 24.72 | 36.18 | 48.24 | 41.4 | 56.52 | 75.36 | 63.3 | |
| 7 | 10.04 | 14.07 | 12.67 | 17.27 | 21.98 | 18.48 | 26.95 | 34.3 | 28.84 | 44.22 | 56.28 | 48.3 | 69.08 | 87.92 | 73.85 | |
| 8 | － | － | － | 20.41 | 25.12 | 21.12 | 31.85 | 39.2 | 32.96 | 52.26 | 64.32 | 55.2 | 81.64 | 100.48 | 84.4 | |
| 9 | － | － | － | 23.55 | 28.26 | 23.76 | 36.75 | 44.1 | 37.08 | 60.3 | 72.36 | 62.1 | 94.2 | 113.04 | 94.95 | |
Stroke
| Bore (mm) | Standard Stroke | Max. Stroke | PermissiWe Stroke | |||||||||||||
| 16 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 300 | 500 | ||||||
| 20 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 500 | 650 | ||||
| 25 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
| 32 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
| 40 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 500 | 650 |
※Please contact with our company if your cylider stroke is special.

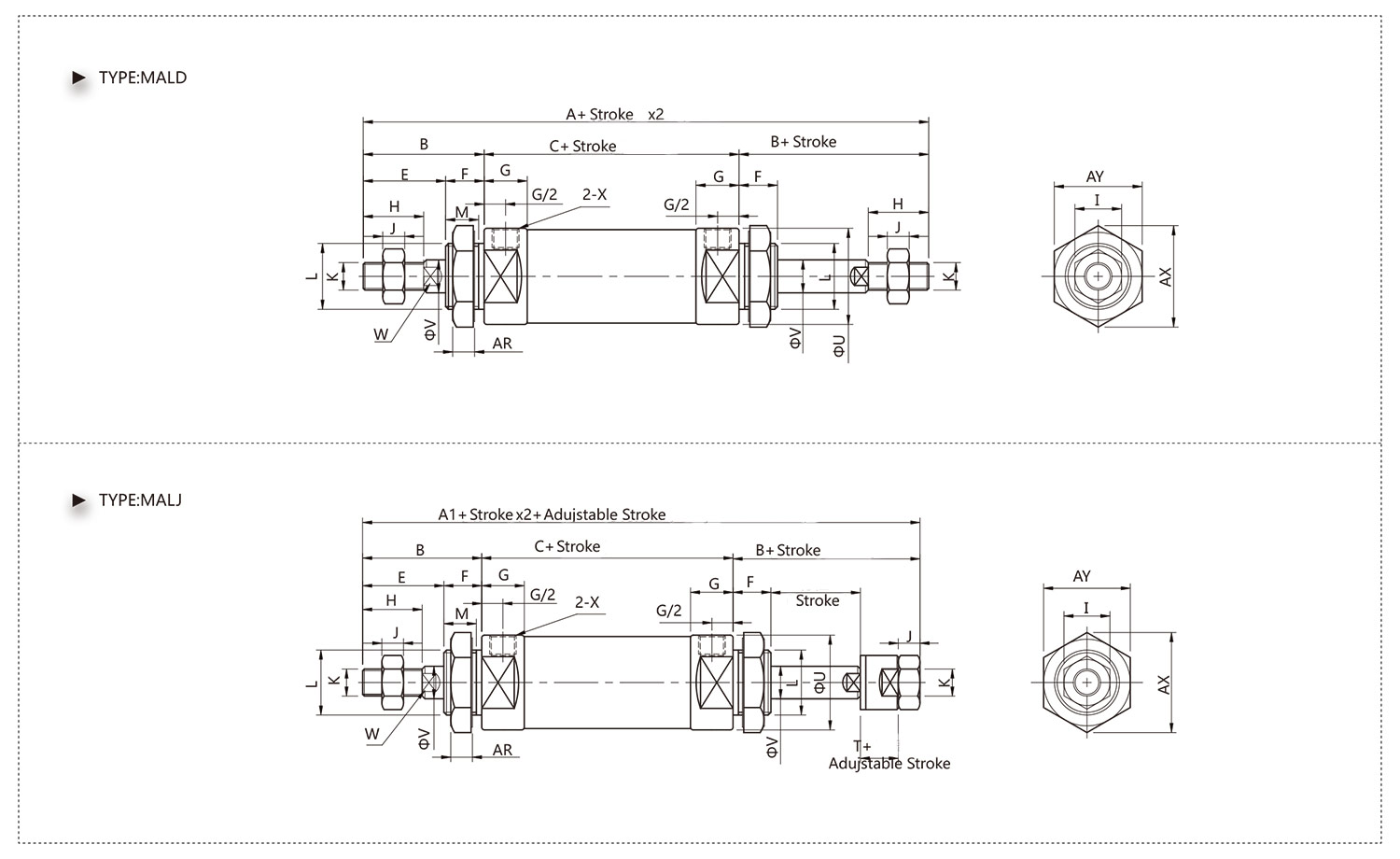

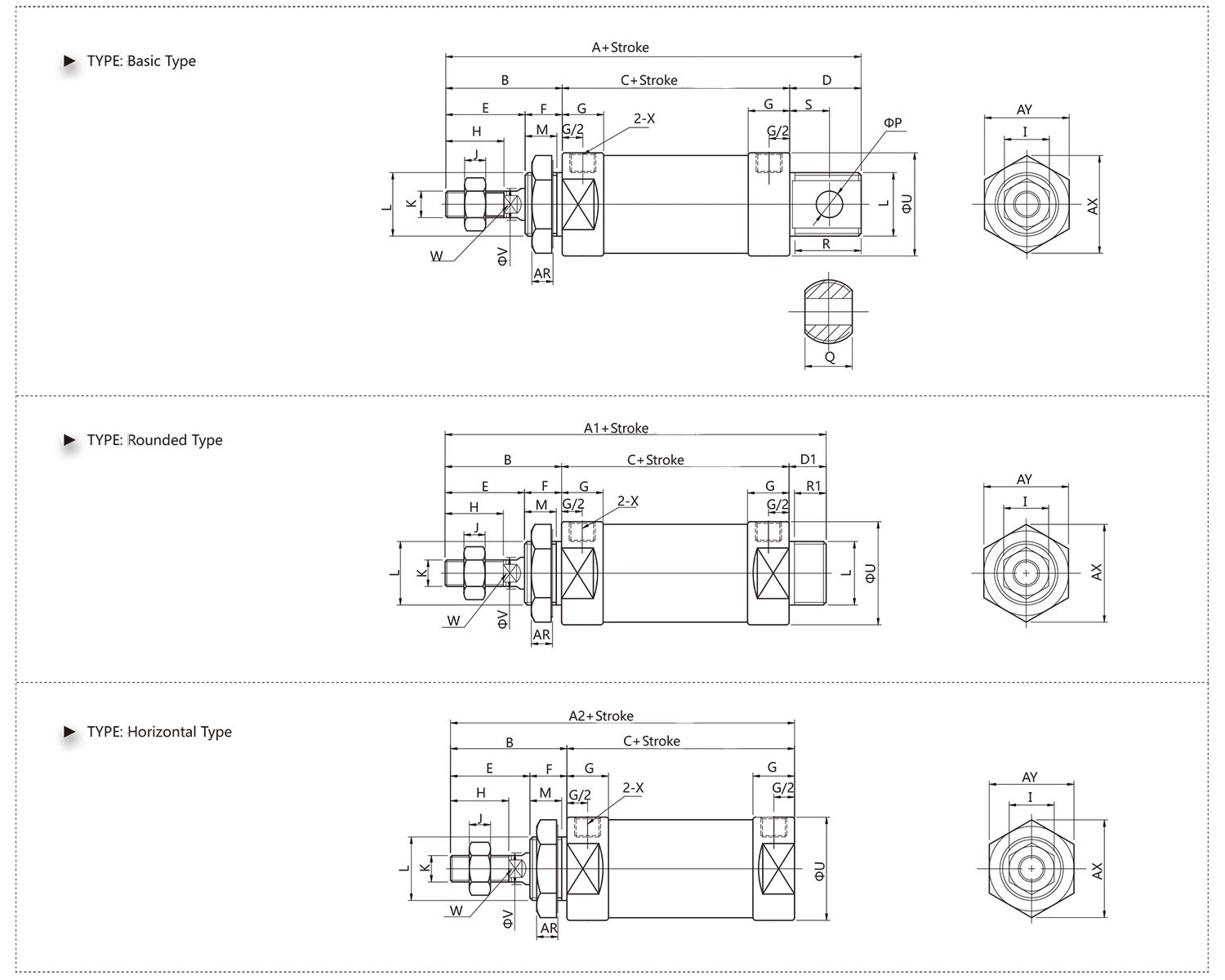

Overall Dimension
Dimension Sheet
| Symbol/Bore(mm) | A | A1 | B | 51-100 | D | E | F | G H | I | J | K | |||
| 0-50 | 51-100 | 0-50 | 51-100 | 0-50 | 51-100 | |||||||||
| 16 | 114 | 139 | 98 | 123 | 38 | 60 | 85 | 16 | 22 | 16 | 10 I 16 | 10 | 5 | M6 |
| 20 | 137 | 162 | 116 | 141 | 40 | 76 | 101 | 21 | 28 | 12 | 16 20 | 12 | 6 | M8 |
| 25 | 141 | 166 | 145 | 44 | 76 | 101 | 21 | 30 | 14 | 16 22 | 17 | 6 | M10x1.25 | |
| 32 | 147 | 172 | 120 | 145 | 44 | 76 | 101 | 27 | 30 | 14 | 16 22 | 17 | 6 | M10x1.25 |
| 40 | 149 | 174 | 122^ | 147 | 46 | 76 | 101 | 32 | 14 | 16.7 24 | 17 | 7 | M12x1.25 | |
| Symbol/Bore(mm) | L | M | P | Q | R | R1 | S | U | V | W | X | AR | AX | AY |
| 16 | M 16x1.5 | 14 | 6 | 12 | 14 | 9 | 9 | 23 | 6 | 5 | M5 | 6 | 25 | 22 |
| 20 | M22x1.5 | 10 | 8 | 16 | 19 | 12 | 12 | 30 | 8 | 6 | G1/8 | 7 | 33 | 29 |
| 25 | M22x1.5 | 12 | 8 | 16 | 19 | 12 | 12 | 34 | 10 | 8 | G1/8 | 7 | 33 | 29 |
| 32 | M24x2 | 12 | 10 | 16 | 25 | 12 | 15 | 39 | 12 | 10 | G1/8 | 8 | 37 | 32 |
| 40 | M30x2 | 12 | 12 | 20 | 25 | 12 | 15 | 49 | 16 | 14 | G1/4 | 9 | 47 | 41 |

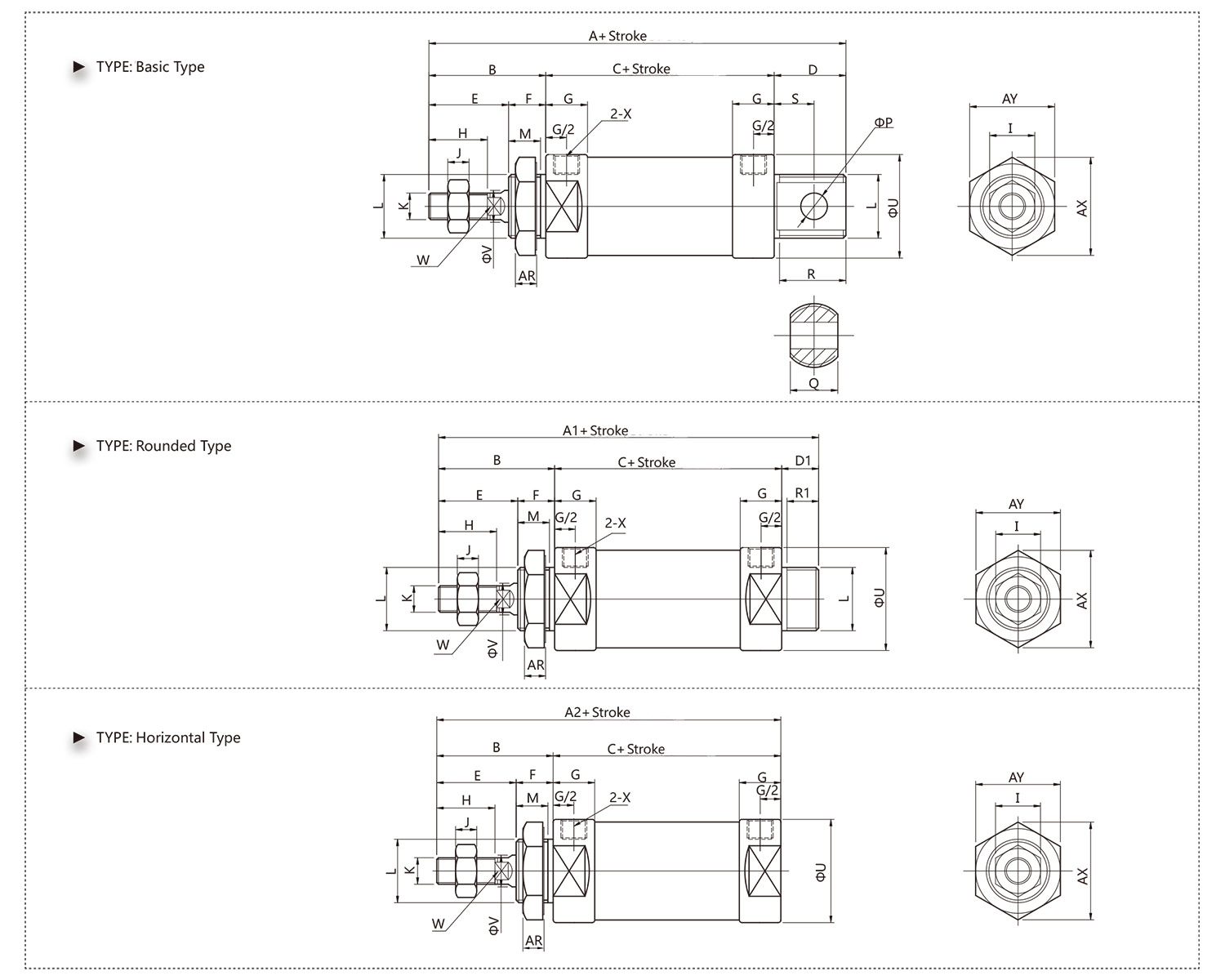

Overall Dimension
Dimension Sheet
|
Symbol/Bore(mm) |
A |
A1 |
A1 |
B |
C |
D |
D1 |
E |
F |
G |
H |
I |
J |
||||
|
0-50 |
51-100 |
0-50 |
51-100 |
0-50 |
51-100 |
0-50 |
51-100 | ||||||||||
|
20 |
131 |
156 |
124 |
147 |
110 |
135 |
40 |
70 |
95 |
21 |
14 |
28 |
12 |
16 |
20 |
12 |
6 |
|
25 |
135 |
160 |
128 |
153 |
114 |
139 |
44 |
70 |
95 |
21 |
14 |
30 |
14 |
16 |
22 |
17 |
6 |
|
32 |
141 |
166 |
128 |
153 |
114 |
139 |
44 |
70 |
95 |
27 |
14 |
30 |
14 |
16 |
22 |
17 |
6 |
|
40 |
165 |
190 |
152 |
177 |
138 |
163 |
46 |
92 |
117 |
27 |
14 |
32 |
14 |
22 |
24 |
17 |
7 |
|
Symbol/Bore(mm) |
K |
L |
M |
P |
Q |
R |
R1 |
S |
U |
V |
W |
X |
AR |
AX |
AY |
|
20 |
M8 |
M22x1.5 |
10 |
8 |
16 |
19 |
12 |
12 |
30 |
8 |
6 |
G1/8 |
7 |
33 |
29 |
|
25 |
M10x1.25 |
M22x1.5 |
12 |
8 |
16 |
19 |
12 |
12 |
34 |
10 |
8 |
G1/8 |
7 |
33 |
29 |
|
32 |
M 10x1.25 |
M24x2 |
12 |
10 |
16 |
25 |
12 |
15 |
39 |
12 |
10 |
G1/8 |
8 |
37 |
32 |
|
40 |
M10x1.25 |
M30x2 |
12 |
12 |
20 |
25 |
12 |
15 |
49 |
16 |
14 |
G1/4 |
9 |
47 |
41 |
Overall Dimension
Dimension Sheet
|
Bore (mm) |
A |
A1 |
B |
C |
E |
F |
G |
H |
I |
J |
K |
L |
M |
T |
U |
V |
W |
X |
AR |
AX |
AY |
|
20 |
150 |
147 |
40 |
70 |
28 |
12 |
16 |
20 |
12 |
6 |
M8 |
M22 x 1.5 |
10 |
19 |
30 |
8 |
6 |
G1/8 |
7 |
33 |
29 |
|
25 |
158 |
155 |
44 |
70 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
M22 x 1.5 |
12 |
21 |
34 |
10 |
8 |
G1/8 |
7 |
33 |
29 |
|
32 |
158 |
155 |
44 |
70 |
30 |
14 |
16 |
22 |
17 |
6 |
M10x1.25 |
M24x2.0 |
12 |
21 |
39 |
12 |
10 |
G1/8 |
8 |
37 |
32 |
|
40 |
182 |
180 |
46 |
90 |
32 |
14 |
22 |
24 |
17 |
7 |
M12x1.25 |
M30x2.0 |
12 |
21 |
49 |
16 |
14 |
G1/4 |
9 |
47 |
41 |
