MD Series Standard Cylinder
Product Details

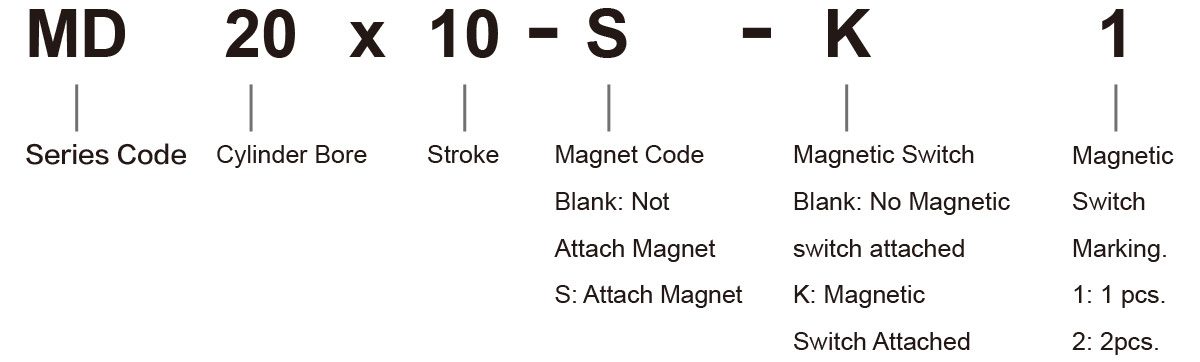

Ordering Code
Synopsis
This is a special compact cylinder with multi-position installation. The cylinder body has a variety of fixing modes. The product is easy to install and occupies less space.

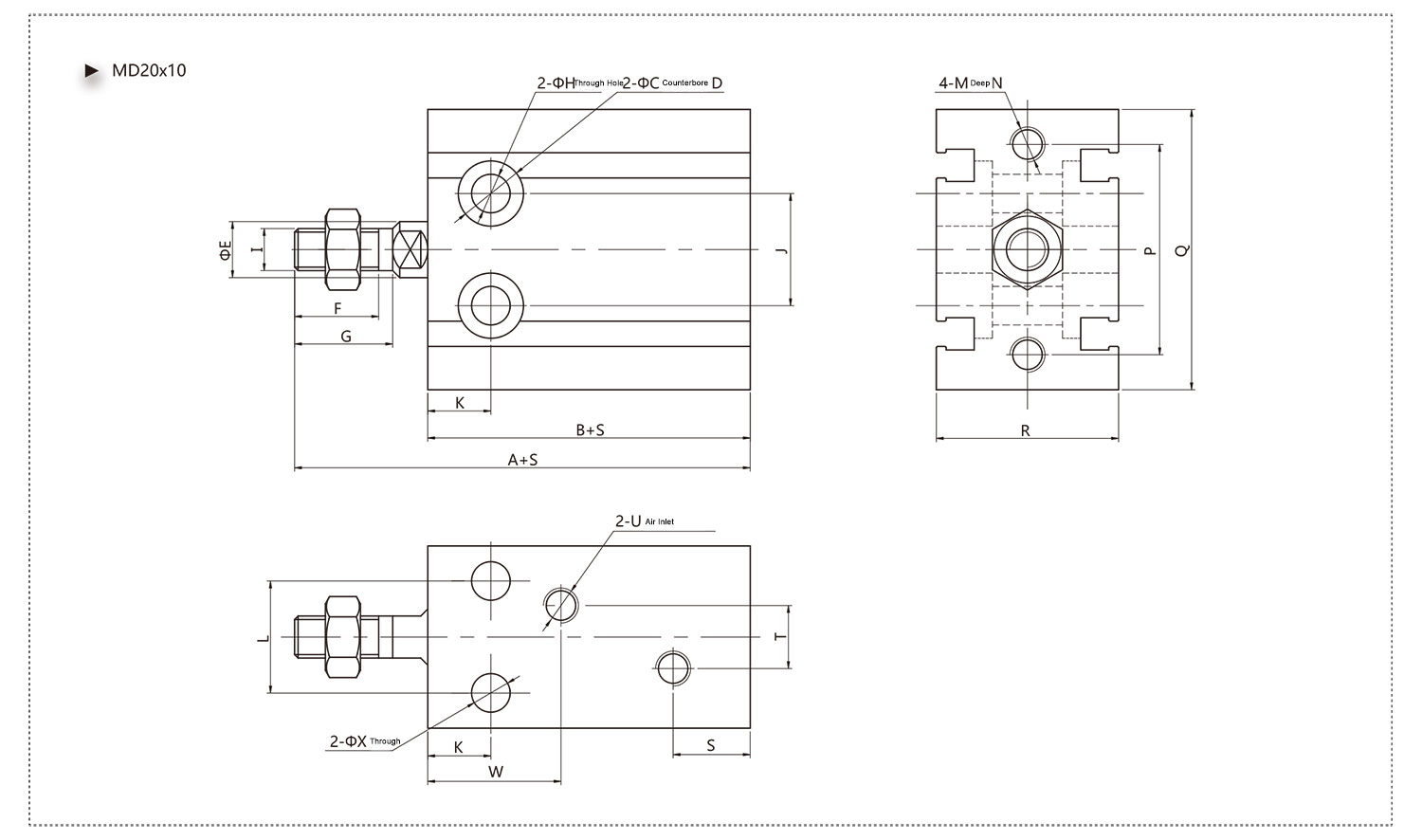

Overall Dimension
Specification
| Model | Standerard Type | Attach Mangnet | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U | ||
| Bor | A | B | A | B | |||||||||||||||||||
| 16 | 46 | 30 | 56 | 40 | Φ7.6 | 6.5 | Φ6 | 11 | 12.5 | Φ4.5 | M5 | 14 | 7 | 12 | M4 | 5 | 14.5 | 25 | 32 | 20 | 10 | 3 | M5 |
| 20 | 55 | 36 | 65 | 46 | Φ9.3 | 8 | Φ8 | 12 | 14 | Φ5.5 | M6 | 16 | 9 | 16 | M5 | 7.5 | 19 | 30 | 40 | 26 | 11 | 9 | M5 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China MD Series Standard Cylinder Suppliers and MD Series Standard Cylinder company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our MD Series Standard Cylinder are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
