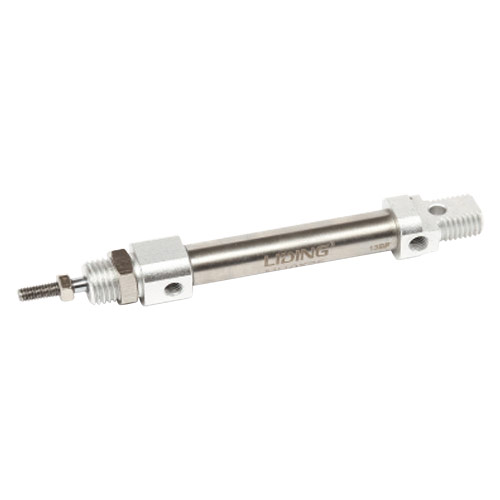

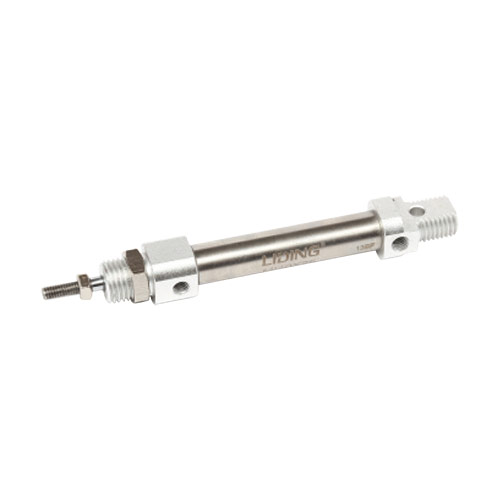

MI Series Stainless Steel Mini Cylinder
Product Details

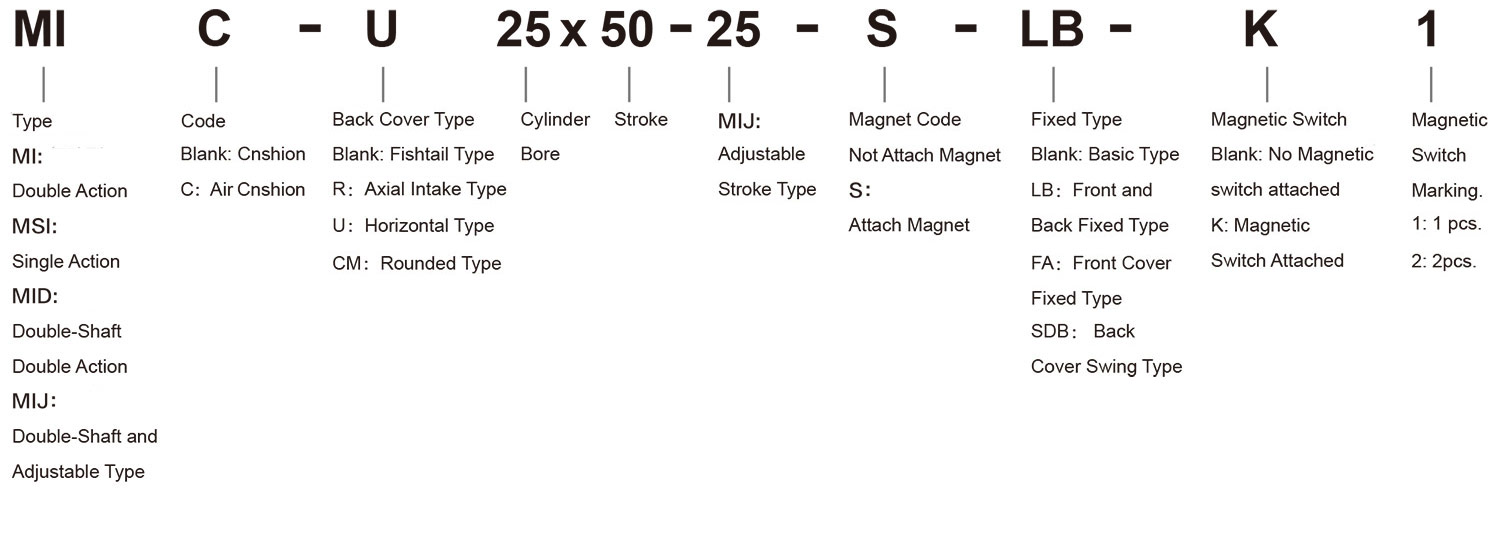

Ordering Code
Specification
| Bore (mm) | 12 | 16 | 20 |
| Motion Pattern | Double Action | ||
| Working Medium | Air | ||
| ※Fixed Type | Basic Type FA Type LB Type SDBType | ||
| OperatingVoltage Range | 1～9Kgf/cm² | ||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||
| Operating Temperature Range | 0～70°C | ||
| Operating Speed Range | 500～800mm/s | ||
| Buffer Form | Buffer Spacer | ||
| Joint Pipe Bore | M5 | ||

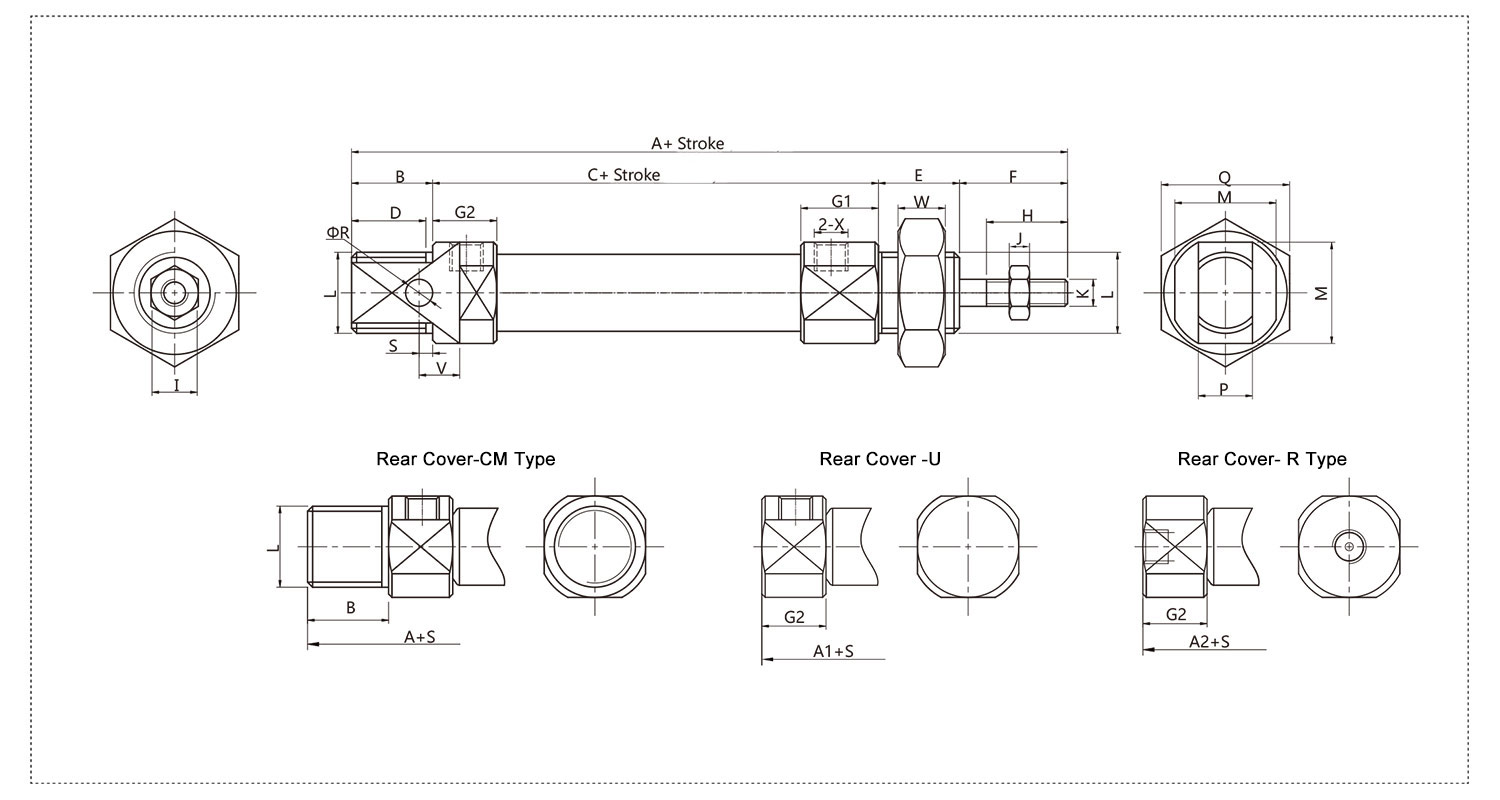

Overall Dimension
Dimension Sheet
| Bore (mm) | A | A1 | A2 | B | C | D | E | F | G1 | G2 | H | I | J | K | L | M | P | Q | R | S | V | W | X |
| 10 | 86 | 74 | 74 | 12 | 46 | 11 | 12 | 16 | 11.5 | 9.5 12 | 12 | 7 | 3 | M4 | M12x1.25 | 15 | 8 | 19 | 4 | 2 | 6 | 7 | M5 |
| 12 | 105 | 88 | 88 | 17 | 50 | 16 | 17 | 21 | 12.5 | 10.5 | 15 | 10 | 4.6 | M6 | M16x1.5 | 18 | 12 | 24 | 6 | 3 | 9 | 8 | M5 |
| 16 | 111 | 94 | 94 | 17 | 56 | 16 | 17 | 21 | 12.5 | 10.5 | 15 | 10 | 4.6 | M6 | M16x1.5 | 20 | 12 | 24 | 6 | 4 | 9 | 8 | M5 |
| 20 | 126 | 106 | 106 | 20 | 62 | 18.5 | 20 | 24 | 14.5 | 14.5 | 20 | 12 | 6 | M8 | M22x1.5 | 25 | 16 | 29 | 8 | 9 | 12 | 7 | PT1/8 |
| 25 | 126 | 115 | 114.5 | 22 | 65 | 20.5 | 22 | 28 | 16 | 16 | 22 | 17 | 6 | M10 | M22x1.5 | 30 | 16 | 29 | 8 | 11 | 12 | 7 | PT1/8 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China MI Series Stainless Steel Mini Cylinder Suppliers and MI Series Stainless Steel Mini Cylinder company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our MI Series Stainless Steel Mini Cylinder are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
