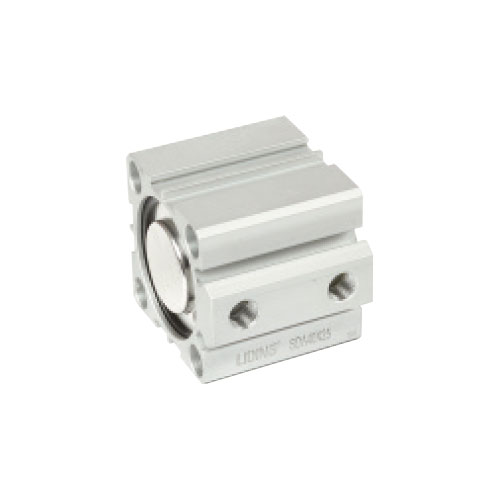

SDA Series Thin Type Cylinder
Product Details

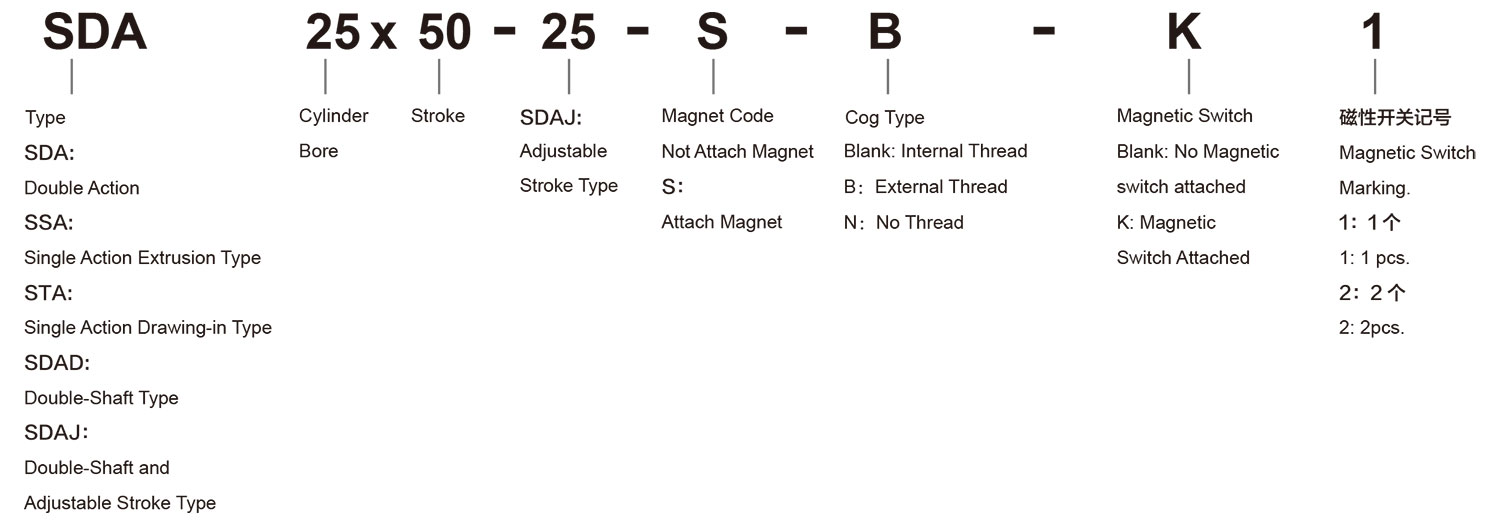

Ordering Code
Specification
| Bore（mm） | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
| Motion Pattern | Double Action | ||||||||||
| Single Action Extrusion Type or Single Drawing-in Type | |||||||||||
| Working Medium | Air | ||||||||||
| OperatingVoltage Range | Double Action | 1-10Kgf/cm2 | |||||||||
| Operat'ngVoltage Range | Single Action | 1 -9Kgf/cm2 | |||||||||
| Ensured Pressure Resistance | 13.5Kgf/cm2 | ||||||||||
| Operating Temperature Range | 0~70°C | ||||||||||
| Operating Speed Range | Double Action | 30～500mm/s | 30～350mm/s | 30～250mm/s | |||||||
| Single Action | 100～500mm/s | － | |||||||||
| Joint Pipe Bore | M5x0.8 | G1/8 | G1/4 | G3/8 | |||||||
Stroke
| Bore (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | ||
| Double Action |
Not Attach Mangnet | Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
very 5mm Is Grouped As One Grade |
|||||
| Attach Mangnet | Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
very 5mm Is Grouped As One Grade |
100mm | Every 5mm Is Grouped As One Grade |
Every 5mm Is Grouped As One Grade |
||||||
| Single Action | Not Attach Mangnet | 5～30mm Every 5mm Is Grouped As One Grade |
||||||||||
| Attach Mangnet | 5～30mm Every 5mm Is Grouped As One Grade |
|||||||||||
| Max. Stroke | 60mm | 5～30mm | 120mm | 130mm | ||||||||

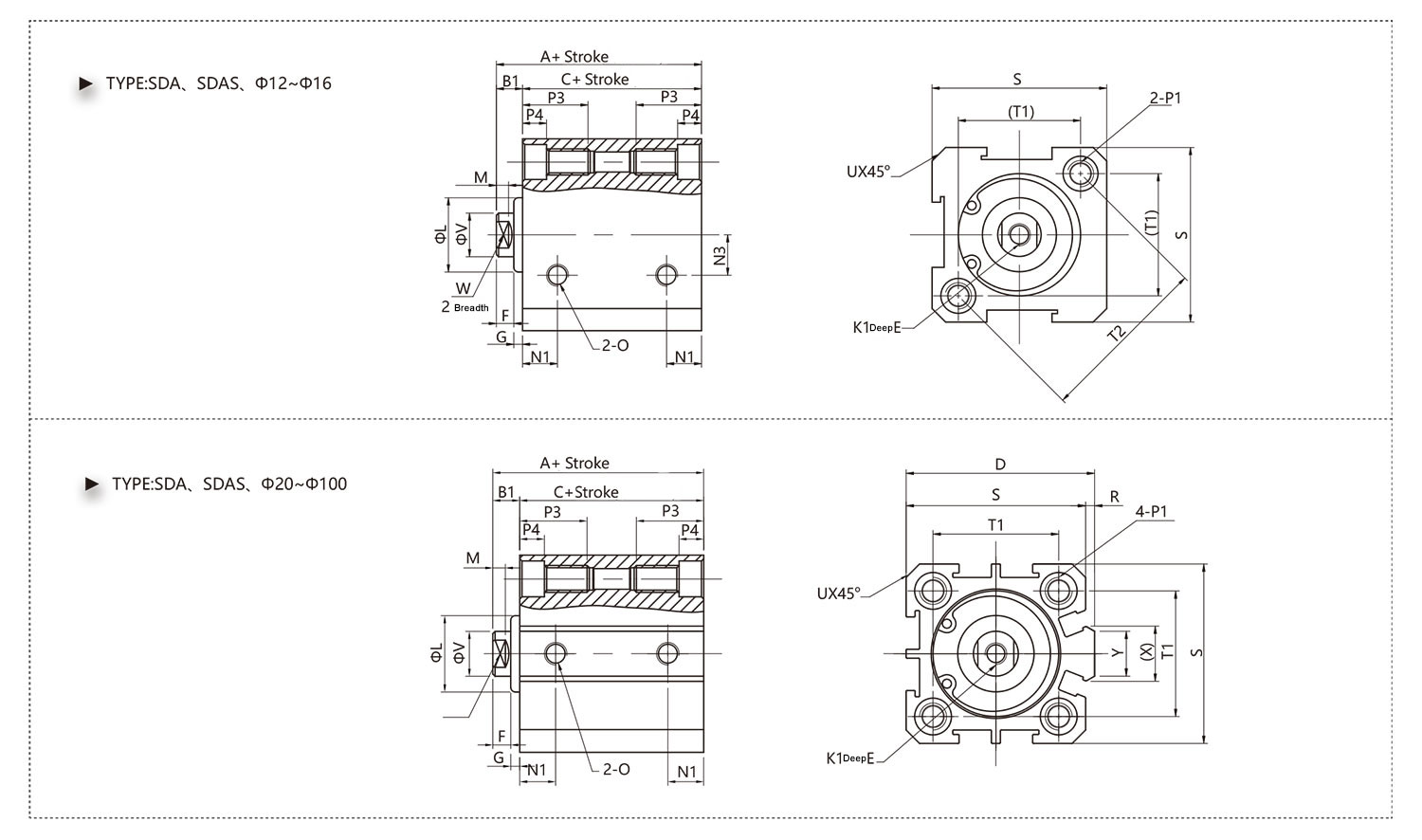

Overall Dimension
Dimension Sheet
|
Type |
Standard Typ |
Magnetized Type |
D |
E
|
F |
G |
K1 |
L |
M N1 |
N3 |
||||||
|
Bore (mm) |
A |
B1 |
C |
A |
B1 |
C |
Stroke≤ 10 |
Stroke >10 | ||||||||
|
12 |
22 |
5 |
17 |
32 |
5 |
27 |
|
6 |
4 |
1 |
M3 |
10.2 |
2.8 |
6.3 |
6 |
|
|
16 |
24 |
5.5 |
18.5 |
34 |
5.5 |
28.5 |
|
6 |
4 |
1.5 |
M3 |
11 |
2.8 |
7.3 |
6.5 |
|
|
20 |
25 |
5.5 |
19.5 |
35 |
5.5 |
29.5 |
36 |
8 |
4 |
1.5 |
M4 |
15 |
2.8 |
7.5 |
- |
|
|
25 |
27 |
6 |
21 |
37 |
6 |
31 |
42 |
10 |
4 |
2 |
M5 |
17 |
2.8 |
8 |
- |
|
|
32 |
31.5 |
7 |
24.5 |
41.5 |
7 |
34.5 |
50 |
12 |
4 |
3 |
M6 |
22 |
2.8 |
9 |
- |
|
|
40 |
33 |
7 |
26 |
43 |
7 |
36 |
58.5 |
12 |
4 |
3 |
M8 |
28 |
2.8 |
10 |
- |
|
|
50 |
37 |
9 |
28 |
47 |
9 |
38 |
71.5 |
15 |
5 |
4 |
M10 |
38 |
2.8 |
10.5 |
- |
|
|
63 |
41 |
9 |
32 |
51 |
9 |
42 |
84.5 |
15 |
5 |
4 |
M10 |
40 |
2.8 |
11.8 |
- |
|
|
80 |
52 |
11 |
41 |
62 |
11 |
51 |
104 |
15 |
20 |
6 |
5 |
M14x1.5 |
45 |
4 |
14.5 |
- |
|
100 |
63 |
12 |
51 |
73 |
12 |
61 |
124 |
18 |
20 |
7 |
5 |
M18x1.5 |
55 |
4 |
20.5 |
- |
|
Bore (mm) |
O |
P1 |
P3 |
P4 |
R |
S |
T1 |
T2 |
U |
V | W |
X |
Y |
||
| Double Side | Cog | Through Hole | |||||||||||||
|
12 |
M5x0.8 |
Φ6.5 |
M5 |
Φ4.2 |
12 |
4.5 |
- |
25 |
16.2 |
23 |
1.6 |
6 |
5 |
- |
- |
|
16 |
M5x0.8 |
Φ6.5 |
M5 |
Φ4.2 |
12 |
4.5 |
- |
29 |
19.8 |
28 |
1.6 |
6 |
5 |
- |
- |
|
20 |
M5x0.8 |
Φ6.5 |
M5 |
Φ4.2 |
14 |
4.5 |
2 |
34 |
24 |
- |
2.1 |
8 |
6 |
11.3 |
10 |
|
25 |
M5x0.8 |
Φ8.2 |
M6 |
Φ4.6 |
16 |
5.5 |
2 |
40 |
28 |
- |
2.1 |
10 |
8 |
12 |
10 |
|
32 |
G1/8 |
Φ8.2 |
M6 |
Φ4.6 |
16 |
5.5 |
6 |
44 |
34 |
- |
2.2 |
12 |
10 |
18.3 |
15 |
|
40 |
G1/8 |
Φ10 |
M8 |
Φ6.5 |
20 |
7.5 |
6.5 |
52 |
40 |
- |
2.3 |
16 |
14 |
21.3 |
16 |
|
50 |
G1/4 |
Φ11 |
M8 |
Φ6.5 |
25 |
8.5 |
9.5 |
62 |
48 |
- |
3.2 |
20 |
17 |
30 |
20 |
|
63 |
G1/4 |
Φ11 |
M8 |
Φ6.5 |
25 |
8.5 |
9.5 |
75 |
60 |
- |
3.2 |
20 |
- |
28.7 |
20 |
|
80 |
G3/8 |
Φ14 |
M12 |
Φ9.2 |
25 |
10.5 |
10 |
94 |
74 |
- |
3.7 |
25 |
22 |
36 |
26 |
|
100 |
G3/8 |
Φ17.5 |
M14 |
Φ11.3 |
30 |
13 |
10 |
114 |
90 |
- |
3.7 |
32 |
27 |
35 |
26 |

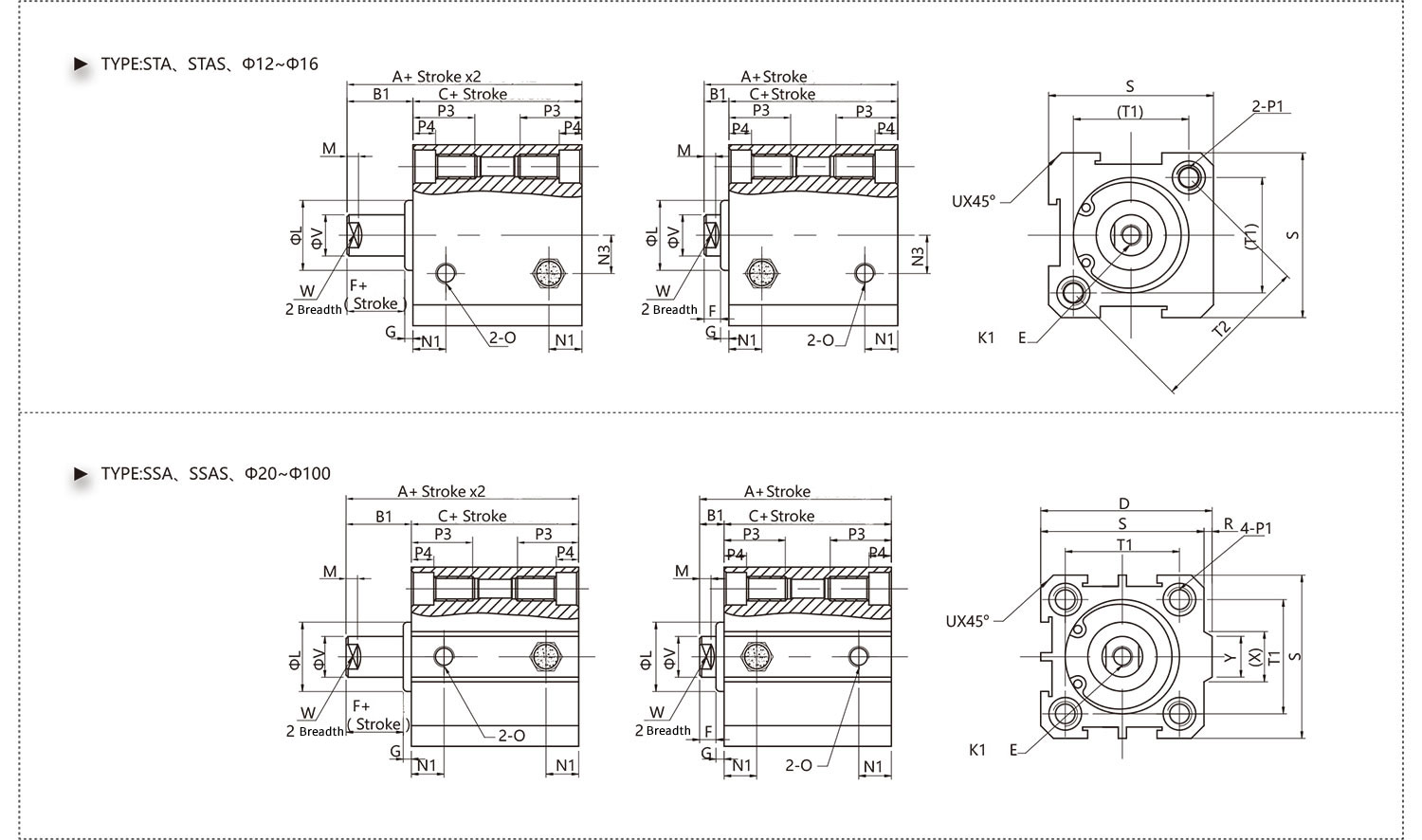

Overall Dimension
Dimension Sheet
| Type | Standard Type | Magnetized Type | D | E | F | G | K1 | L | M | N1 | N3 | ||||||||
| Bore(mm) | A | B1 | C | A | B1 | C | |||||||||||||
| ≦10 | >10 | ≤10 | >10 | ≤10 | >10 | ≤10 | >10 | ||||||||||||
| 12 | 32 | 42 | 5 | 27 | 37 | 42 | 52 | 5 | 37 | 47 | － | 6 | 4 | 1 | M3 | 10.2 | 2.8 | 6.3 | 6 |
| 16 | 34 | 44 | 5.5 | 28.5 | 38.5 | 44 | 54 | 5.5 | 38.5 | 48.5 | － | 6 | 4 | 1.5 | M3 | 11 | 2.8 | 7.3 | 6.5 |
| 20 | 35 | 45 | 5.5 | 29.5 | 39.5 | 45 | 55 | 5.5 | 39.5 | 49.5 | 36 | 8 | 4 | 1.5 | M4 | 15 | 2.8 | 7.5 | － |
| 25 | 37 | 47 | 6 | 31 | 41 | 47 | 57 | 6 | 41 | 51 | 42 | 10 | 4 | 2 | M5 | 17 | 2.8 | 8 | － |
| 32 | 41.5 | 51.5 | 7 | 34.5 | 44.5 | 51.5 | 61.5 | 7 | 44.5 | 54.5 | 50 | 12 | 4 | 3 | M6 | 22 | 2.8 | 9 | － |
| 40 | 43 | 53 | 36 | 46 | 53 | 63 | 7 | 46 | 56 | 58.5 | 12 | 4 | 3 | M8 | 28 | 2.8 | 10 | － | |
| Bore (mm) | O | P1 | P3 | P4 | R | S | T1 | T2 | U | V | W | X | Y | ||
| Double Side Cog Through Hole | Gog | Through Hole | |||||||||||||
| 12 | M5 | Ø6.5 | M5 | Ø4.2 | 12 | 4.5 | — | 25 | 16.2 | 23 | 1.6 | 6 | 5 | — | — |
| 16 | M5 | Ø6.5 | M5 | Ø4.2 | 12 | 4.5 | — | 29 | 19.8 | 28 | 1.6 | 6 | 5 | — | — |
| 20 | M5 | Ø6.5 | M5 | Ø4.2 | 14 | 4.5 | 2 | 34 | 24 | — | 2.1 | 8 | 6 | 11.3 | 10 |
| 25 | M5 | Ø8.2 | M6 | Ø4.6 | 15 | 5.5 | 2 | 40 | 28 | — | 2.1 | 10 | 8 | 12 | 10 |
| 32 | G1/8 | Ø8.2 | M6 | Ø4.6 | 16 | 5.5 | 6 | 44 | 34 | — | 2.2 | 12 | 10 | 18.3 | 15 |
| 40 | G1/8 | Ø10 | M8 | Ø6.5 | 20 | 7.5 | 6.5 | 52 | 40 | — | 2.3 | 16 | 14 | 21.3 | 16 |

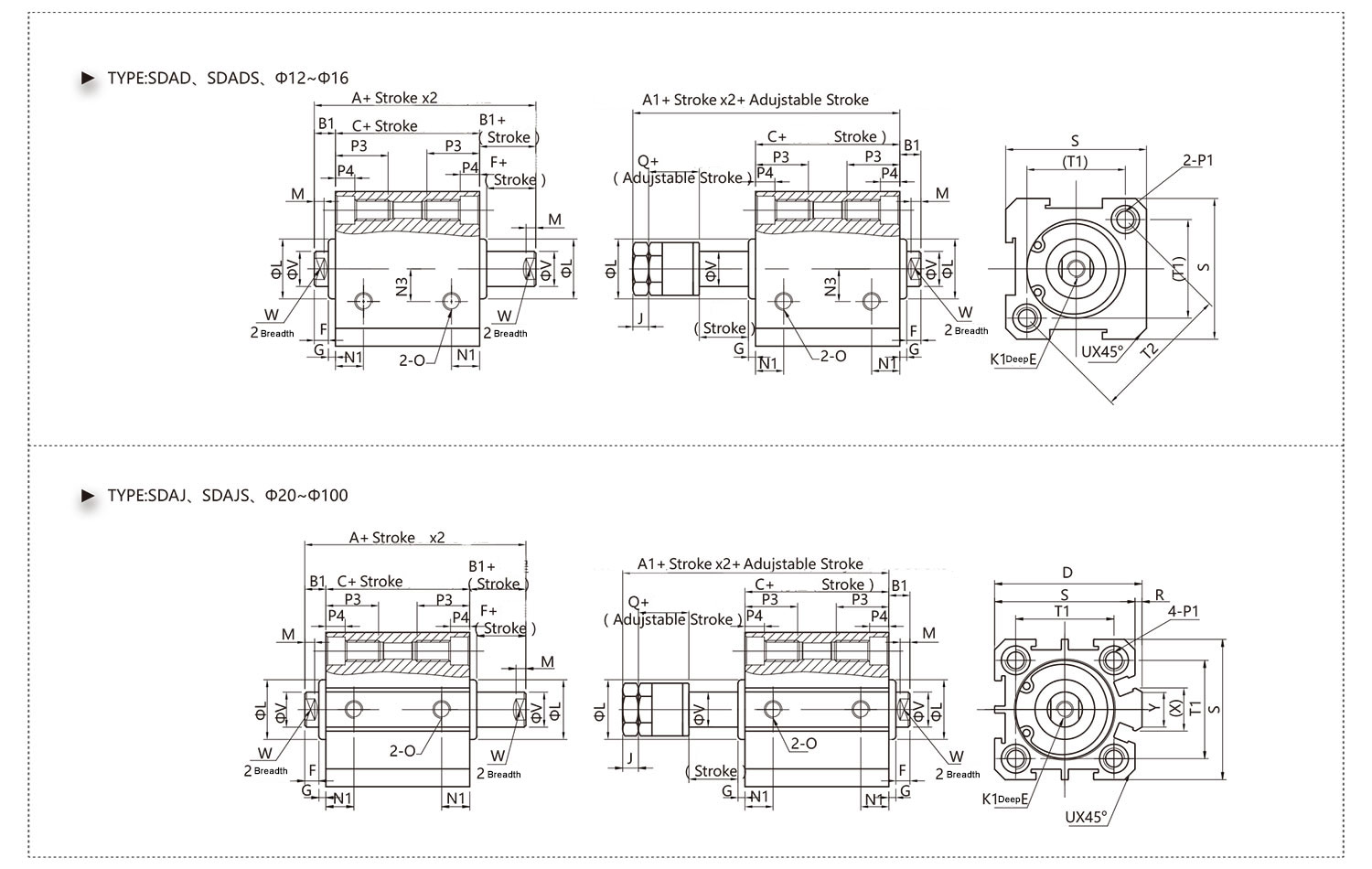

Overall Dimension
Dimension Sheet
|
Type |
Standard Type |
Magnetized Type |
D |
E |
F |
G J |
K1 |
L |
M N1 |
|||||||||
|
Bore (mm) |
A |
A1 |
B1 | C |
A |
A1 |
B1 |
C |
Stroke≤ 10 | Stroke >10 | ||||||||
|
12 |
27 |
40 |
5 |
17 |
37 |
50 |
5 |
27 |
— |
6 |
4 |
1 |
4 |
M3 |
10.2 |
2.8 |
6.3 |
|
|
16 |
29.5 |
42.5 |
5.5 |
18.5 |
39.5 |
52.5 |
5.5 |
28.5 |
— |
6 |
4 |
1.5 |
4 |
M3 |
11 |
2.8 |
7.3 |
|
|
20 |
30.5 |
47.5 |
5.5 |
19.5 |
40.5 |
57.5 |
5.5 |
29.5 |
36 |
8(Stroke=5、E=5.5) |
4 |
1.5 |
5 |
M4 |
15 |
2.8 |
7.5 |
|
|
25 |
33 |
55 |
6 |
21 |
43 |
65 |
6 |
31 |
42 |
10(Stroke=5、E=7) |
4 |
2 |
6 |
M5 |
17 |
2.8 |
8 |
|
|
32 |
38.5 |
61.5 |
7 |
24.5 |
48.5 |
71.5 |
7 |
34.5 |
50 |
8 |
12 |
4 |
3 |
6 |
M6 |
22 |
2.8 |
9 |
|
40 |
40 |
65 |
|
26 |
50 |
75 |
7 |
36 |
58.5 |
9 |
12 |
4 |
3 |
8 |
M8 |
28 |
2.8 |
10 |
|
50 |
46 |
73 |
9 |
28 |
56 |
83 |
9 |
38 |
71.5 |
11 |
15 |
5 |
4 |
11 |
M10 |
38 |
2.8 |
10.5 |
|
63 |
50 |
77 |
9 |
32 |
60 |
87 |
9 |
42 |
84.5 |
11 |
15 |
5 |
4 |
11 |
M10 |
40 |
2.8 |
11.8 |
|
80 |
63 |
94 |
11 |
41 |
73 |
104 |
11 |
61 |
104 |
14 |
20 |
6 |
5 |
13 |
M 14x1.5 |
45 |
4 |
14.5 |
|
100 |
75 |
105 |
12 |
51 |
85 |
115 |
12 |
61 |
124 |
18 |
20 |
7 |
5 |
13 |
M18x1.5 |
55 |
4 |
20.5 |
| Bore (mm) | N3 | O | P1 | P3 | PA | Q | R | s | D | B | U | V | W | X | Y | ||
| Double Side Cog Through Hole | Gog | Through Hole | |||||||||||||||
| 12 | 6 | M5 | Ø6.5 | M5 | Ø4.2 | 12 | 4.5 | 13 | — | 25 | 16.2 | 23 | 1.6 | 6 | 5 | — | — |
| 16 | 6.5 | M5 | Ø6.5 | M5 | Ø4.2 | 12 | 4.5 | 13 | — | 29 | 19.8 | 28 | 1.6 | 6 | 5 | — | — |
| 20 | — | M5 | Ø6.5 | M5 | Ø4.2 | 14 | 4.5 | 16 | 2 | 34 | 24 | — | 2.1 | 8 | 6 | 11.3 | 10 |
| 25 | — | M5 | Ø8.2 | M6 | Ø4.6 | 15 | 5.5 | 19 | 2 | 40 | 28 | — | 3.1 | 10 | 8 | 12 | 10 |
| 32 | — | G1/8 | 8.2 | M6 | Ø4.6 | 16 | 5.5 | 21 | 6 | 44 | 34 | — | 2.2 | 12 | 10 | 18.3 | 15 |
| 40 | — | G1/8 | Ø10 | M8 | Ø6.5 | 20 | 7.5 | 21 | 6.5 | 52 | 40 | — | 2.3 | 16 | 14 | 21.3 | 16 |
| 50 | — | G1/4 | Ø11 | M8 | Ø6.5 | 25 | 8.5 | 21 | 9.5 | 62 | 48 | — | 3.2 | 20 | 17 | 30 | 20 |
| 63 | — | G1/4 | Ø11 | M8 | Ø6.5 | 25 | 8.5 | 21 | 9.5 | 75 | 60 | — | 3.2 | 20 | 17 | 28.7 | 20 |
| 80 | — | G3/8 | Ø14 | M12 | Ø9.2 | 25 | 10.5 | 24 | 10 | 94 | 74 | — | 3.7 | 25 | 22 | 36 | 26 |
| 100 | — | G3/8 | Ø17.5 | M14 | Ø11.3 | 30 | 13 | 24 | 10 | 114 | 90 | — | 3.7 | 32 | 27 | 35 | 26 |

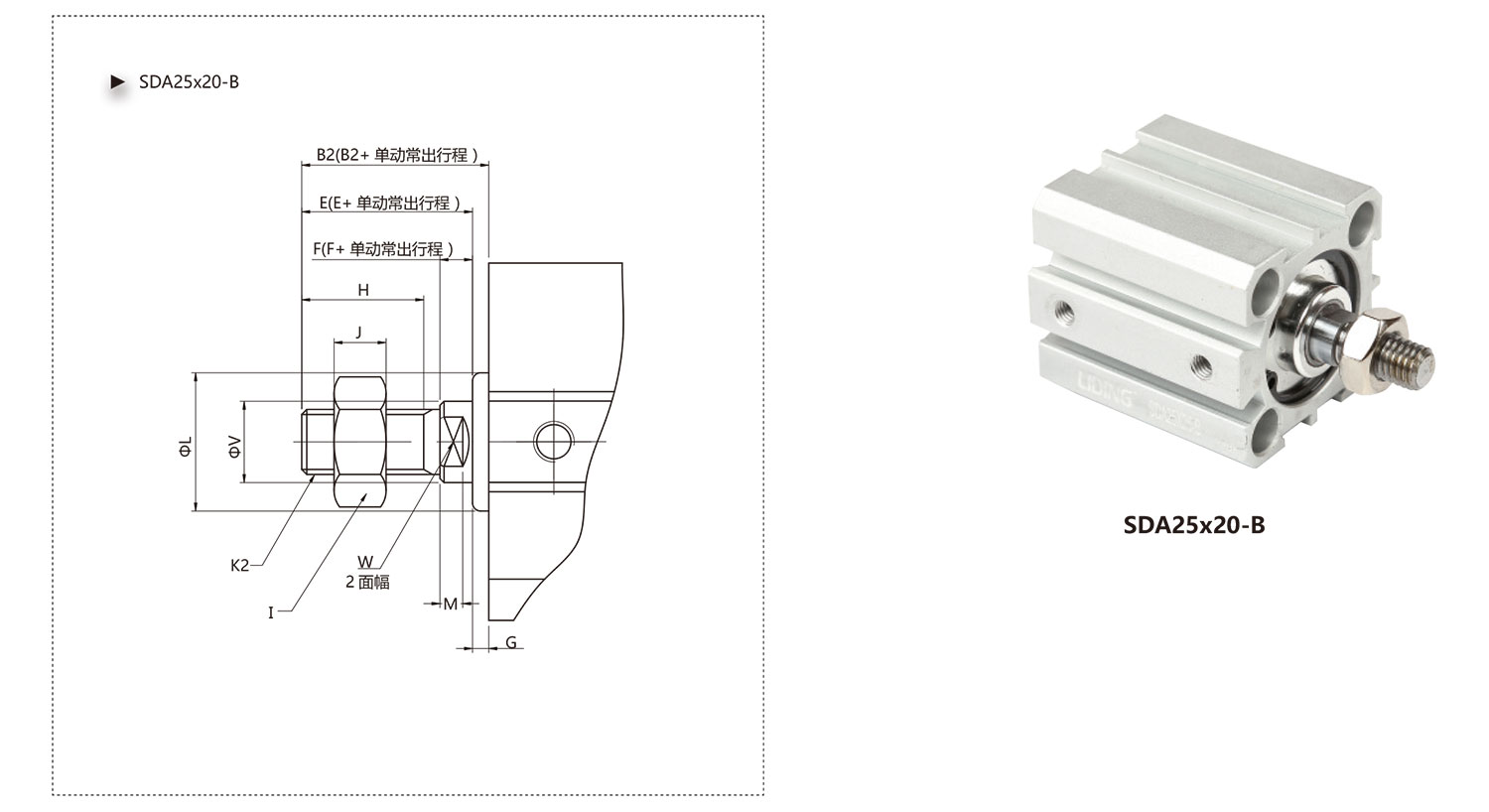

Overall Dimension
Dimension Sheet
|
Bore (mm) |
B2 |
E |
F |
G |
H |
I |
J |
K2 |
L |
M |
V |
W |
|
12 |
17 |
16 |
4 |
1 |
|
8 |
4 |
M5 |
10.2 |
2.8 |
6 |
5 |
|
16 |
17.5 |
16 |
4 |
1.5 |
10 |
8 |
4 |
M5 |
11 |
2.8 |
6 |
5 |
|
20 |
20.5 |
19 |
4 |
1.5 |
13 |
10 |
5 |
M6 |
15 |
2.8 |
8 |
6 |
|
25 |
23 |
21 |
4 |
2 |
15 |
12 |
6 |
M8 |
17 |
2.8 |
10 |
8 |
|
32 |
25 |
22 |
4 |
3 |
15 |
17 |
6 |
M10x1.25 |
22 |
2.8 |
12 |
10 |
|
40 |
35 |
32 |
4 |
3 |
25 |
19 |
8 |
M 14x1.5 |
28 |
2.8 |
16 |
14 |
|
50 |
37 |
33 |
5 |
4 |
25 |
27 |
11 |
M 18x1.5 |
38 |
2.8 |
20 |
17 |
|
63 |
37 |
33 |
5 |
4 |
25 |
27 |
11 |
M 18x1.5 |
40 |
2.8 |
20 |
17 |
|
80 |
44 |
39 |
6 |
5 |
30 |
32 |
13 |
M22x1.5 |
45 |
4 |
25 |
22 |
|
100 |
50 |
45 |
7 |
5 |
35 |
36 |
13 |
M26x1.5 |
55 |
4 |
32 |
27 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China SDA Series Thin Type Cylinder Suppliers and SDA Series Thin Type Cylinder company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our SDA Series Thin Type Cylinder are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
