AR、BR Series air pressure regulator Suppliers

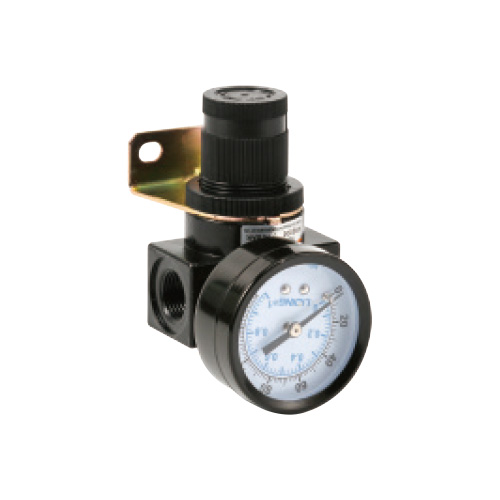

AR、BR Series air pressure regulator

AR、BR Series air pressure regulator

Product Details

0
Views: 1,892

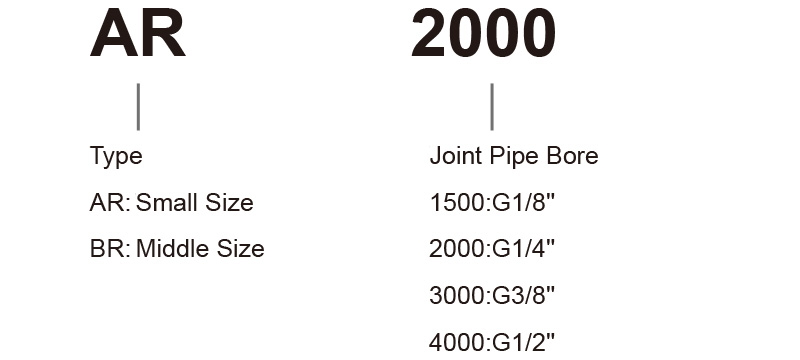

Ordering Code

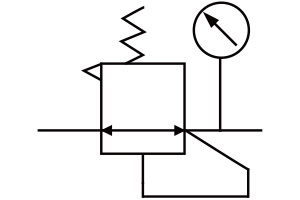

GraPhic symbol





Specification



Model

AR1500

AR2000

BR2000

BR3000 BR4000

Operating Fluid

Air

Joint Pipe Bore

G1/8

G1/4

G1/4

G3/8 G1/2

Range of Adjustable Pressure

0.05~0.85MPa

Max. Adjustable Pressure

0.95MPa

Ensured Pressure Resistance

1.5MPa

Operating Temperature Range

5~60℃

Weight

0.20kg

0.23kg

Material of Body

Aluminum Die-casting Fomring





Pressure Character

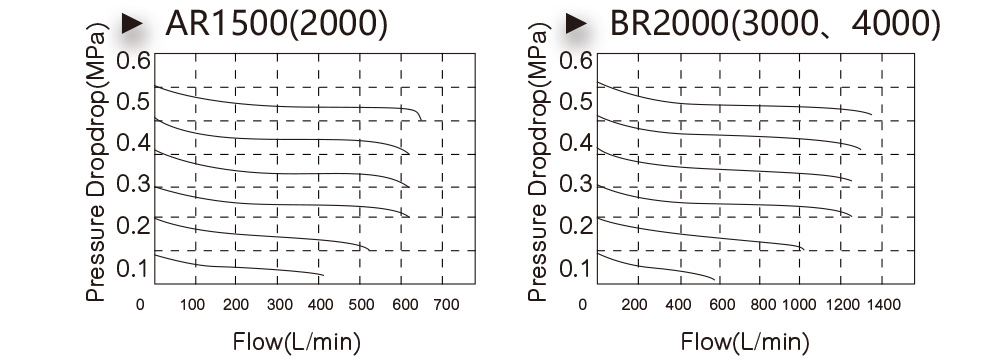

Flowing Character

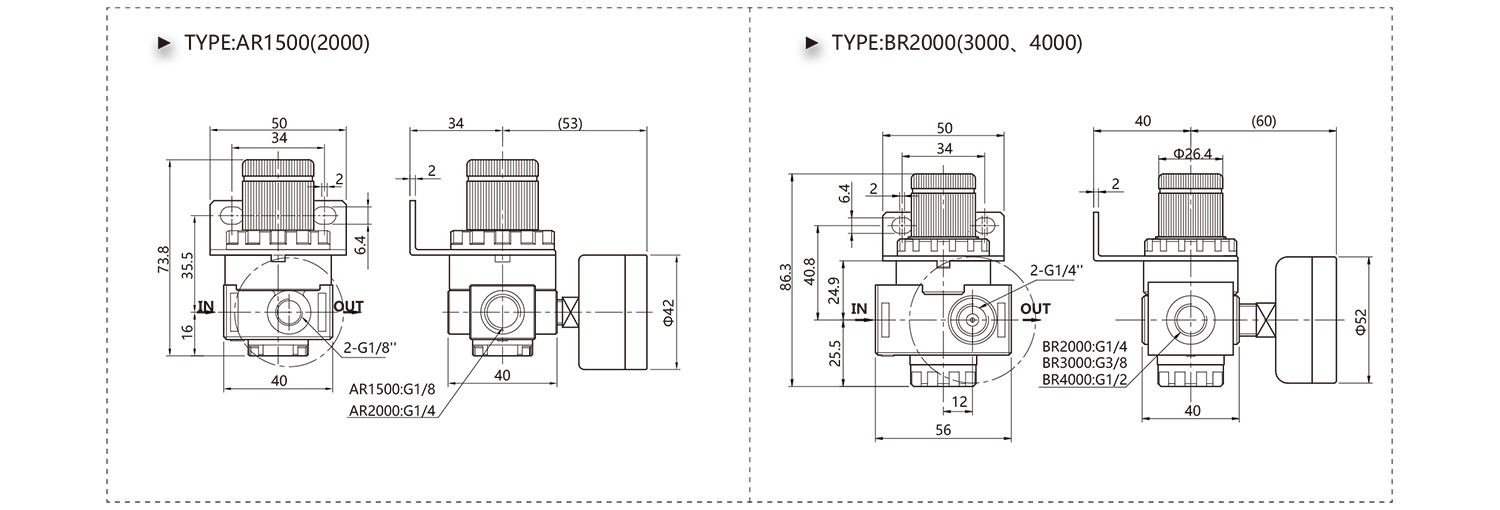

Overall Dimension

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China AR、BR Series air pressure regulator Suppliers and AR、BR Series air pressure regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our AR、BR Series air pressure regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
