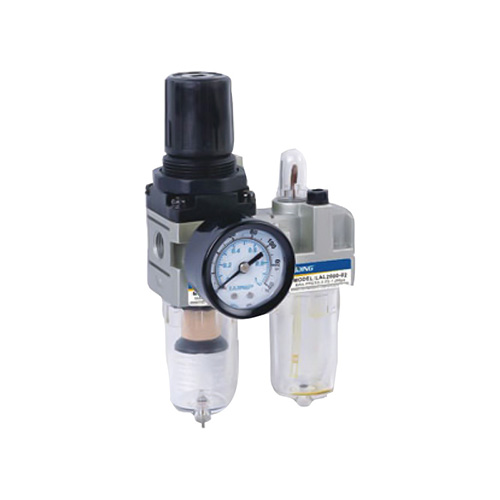

LAC Series air compressor filter regulator(LAW.LAL Combination)
Product Details
Place of Origin: Zhejiang, China
Brand Name: LIDA
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Price: Negotiate

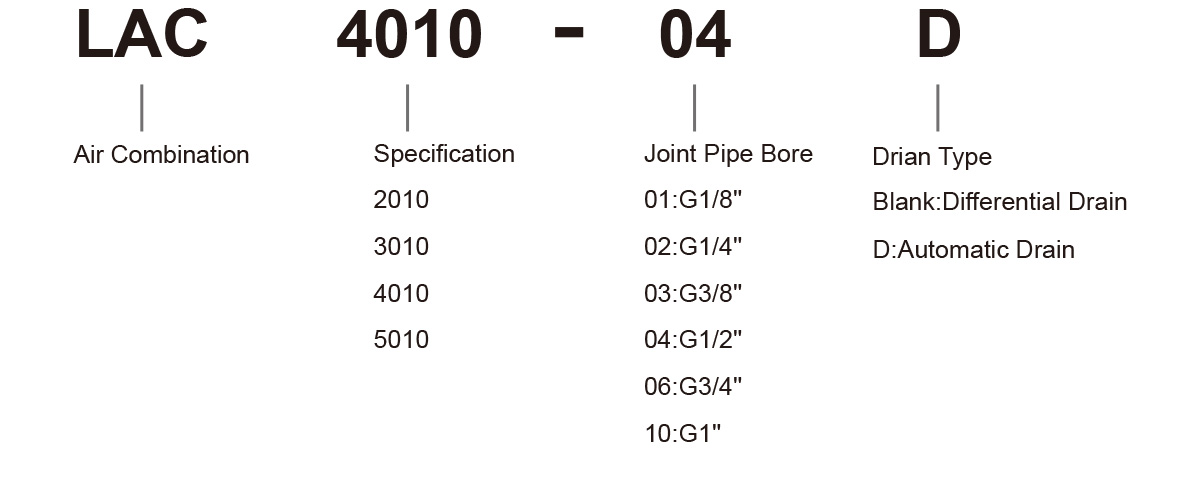

Ordering Code

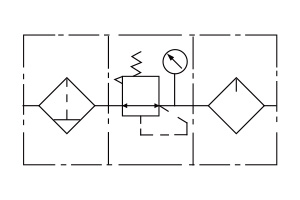

GraPhic symbol
Specification
|
Model |
LAC2010 -01 |
LAC2010 -02 |
LAC3010 -02 |
LAC3010 -03 |
LAC4010 -03 |
LAC4010 -04 |
LAC4010 -06 |
LAC5010 -06 |
LAC5010 -10 |
|
|
Rated Flow |
500 |
500 |
1700 |
1700 |
3000 |
3000 |
3000 |
4000 |
4000 |
|
|
Joint Pipe Bore |
G1/8 |
G1/4 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
|
Filtering Eliment Roughness |
25μ |
|||||||||
|
Highest Working Pressure |
1.0MPa |
|||||||||
|
Ensured Pressure Resistance |
1.5MPa |
|||||||||
|
Operating Temperature Range |
5~60℃ |
|||||||||
|
Range of Adjustable Pressure |
0.05~0.85MPa |
|||||||||
|
Recommended Oil Use |
ISOVG32 |
|||||||||
|
Container Material |
Polycarbonate |
|||||||||
|
Protective Cover |
Not Available |
Available |
||||||||
|
Drain Function |
Differential Drain |
Differential Drain、Automatic Drain |
||||||||
|
Valve Type |
With Overflow |
|||||||||
|
Assembly |
Filter & Regulator |
LAW2000-01 |
LAW2000-02 |
LAW3000-02 |
LAW3000-03 |
LAW4000-03 |
LAW4000-04 |
LAW4000-06 |
LAW5000-06 |
LAW5000-10 |
|
Lubricator |
LAL2000-01 |
LAL2000-02 |
LAL3000-02 |
LAL3000-03 |
LAL4000-03 |
LAL4000-04 |
LAL4000-06 |
LAL5000-06 |
LAL5000-10 |
|

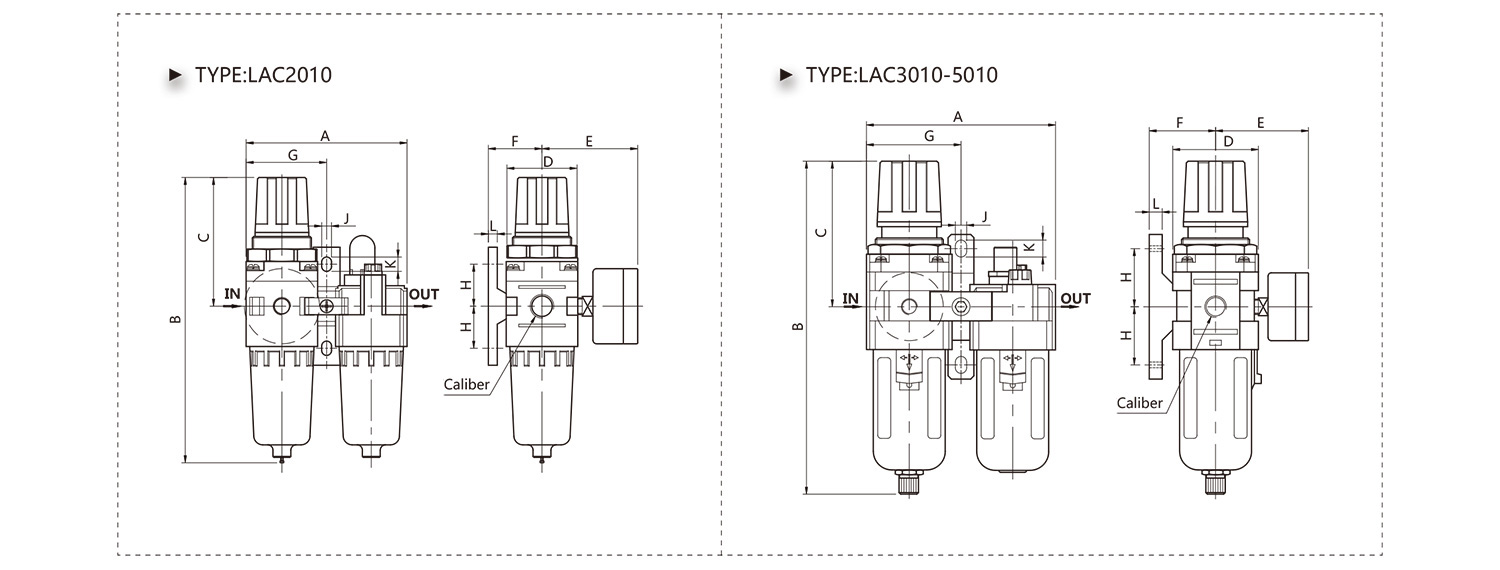

Overall Dimension
|
Model |
Bore |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
|
LAC2010 |
1/8*1/4 |
90 |
164.5 |
78 |
40 |
56.8 |
30 |
45 |
24 |
5.5 |
8.5 |
5 |
|
LAC3010 |
1/4*3/8 |
117 |
211 |
92.5 |
53 |
60.8 |
41 |
58.5 |
35 |
7 |
11 |
7 |
|
LAC4010 |
3/8*1/2 |
154 |
262.5 |
112 |
70 |
70.5 |
50 |
77 |
40 |
9 |
13 |
7 |
|
LAC4010-06 |
3/4 |
164 |
267 |
114 |
70 |
70.5 |
50 |
82 |
40 |
9 |
13 |
7 |
|
LAC5010 |
3/4*1 |
195 |
338 |
116 |
90 |
75.5 |
69.8 |
97.5 |
50 |
11.5 |
15 |
10.5 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LAC Series air compressor filter regulator(LAW.LAL Combination) Suppliers and LAC Series air compressor filter regulator(LAW.LAL Combination) company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LAC Series air compressor filter regulator(LAW.LAL Combination) are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
