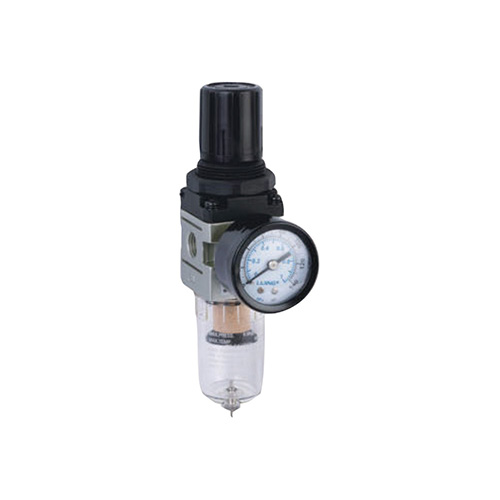

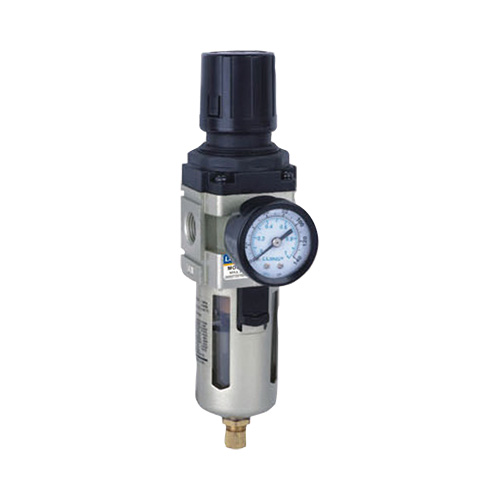

LAW Series compressed air filter regulator
Product Details
LAW Series compressed air filter regulator
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, HOME USE, Retail, Energy & Mining, Advertising Company
Place of Origin: Zhejiang, China
Brand Name: LIDA
Price: Negotiate

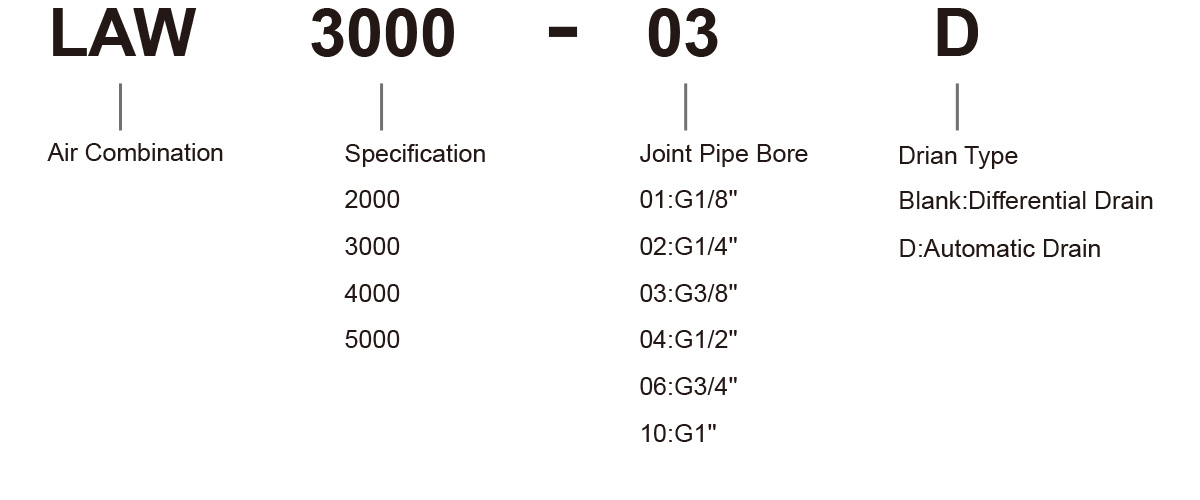

Ordering Code

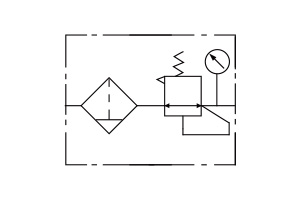

GraPhic symbol
Specification
|
Model |
LAW2000 -01 |
LAW2000 -02 |
LAW3000 -02 |
LAW3000 -03 |
LAW4000 -03 |
LAW4000 -04 |
LAW4000 -06 |
LAW5000 -06 |
LAW5000 -10 |
|
Rated Flow |
550 |
550 |
2000 |
2000 |
4000 |
4000 |
4500 |
5500 |
5500 |
|
Joint Pipe Bore |
G1/8 |
G1/4 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
Filtering Eliment Roughness |
25μ |
||||||||
|
Range of Adjustable Pressure |
0.05~0.85MPa |
||||||||
|
Max. Adjustable Pressure |
1.0MPa |
||||||||
|
Ensured Pressure Resistance |
1.5MPa |
||||||||
|
Operating Temperature Range |
5~60℃ |
||||||||
|
Container Material |
Polycarbonate |
||||||||
|
Protective Cover |
Not Available |
Available |
|||||||
|
Drain Function |
Differential Drain |
Differential Drain、Automatic Drain |
|||||||
|
Valve Type |
With Overflow |
||||||||

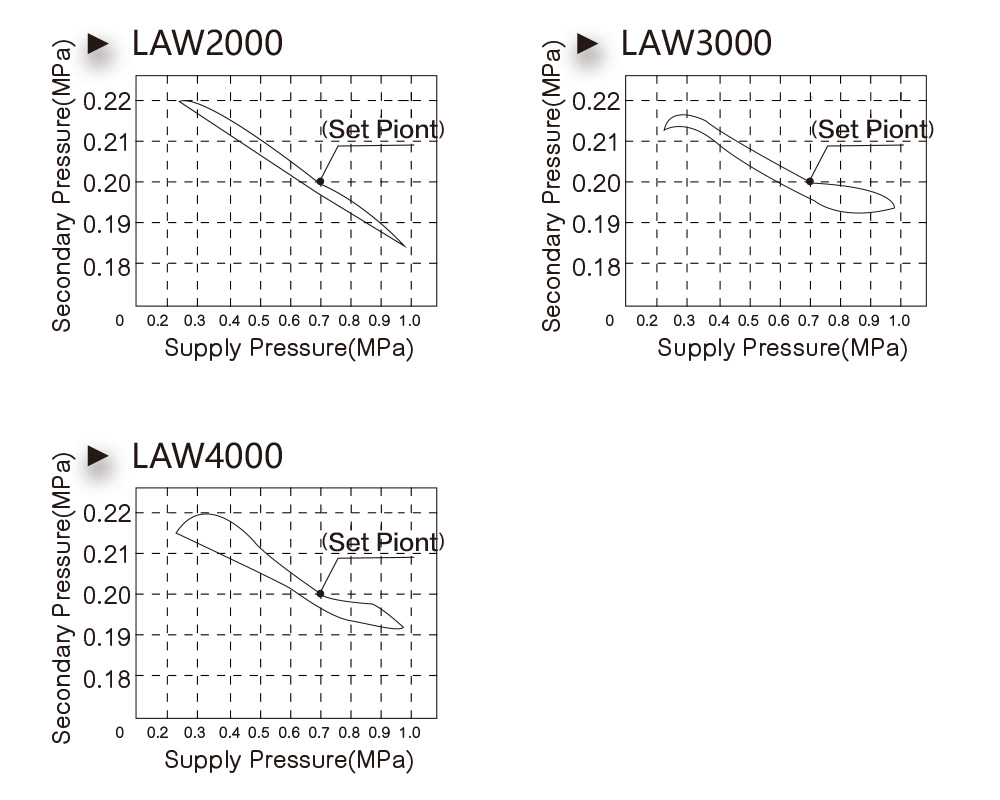

Pressure Character
Supply pressure=0.7MPa Secondary Pressure=0.2MPa Flow=20L/min

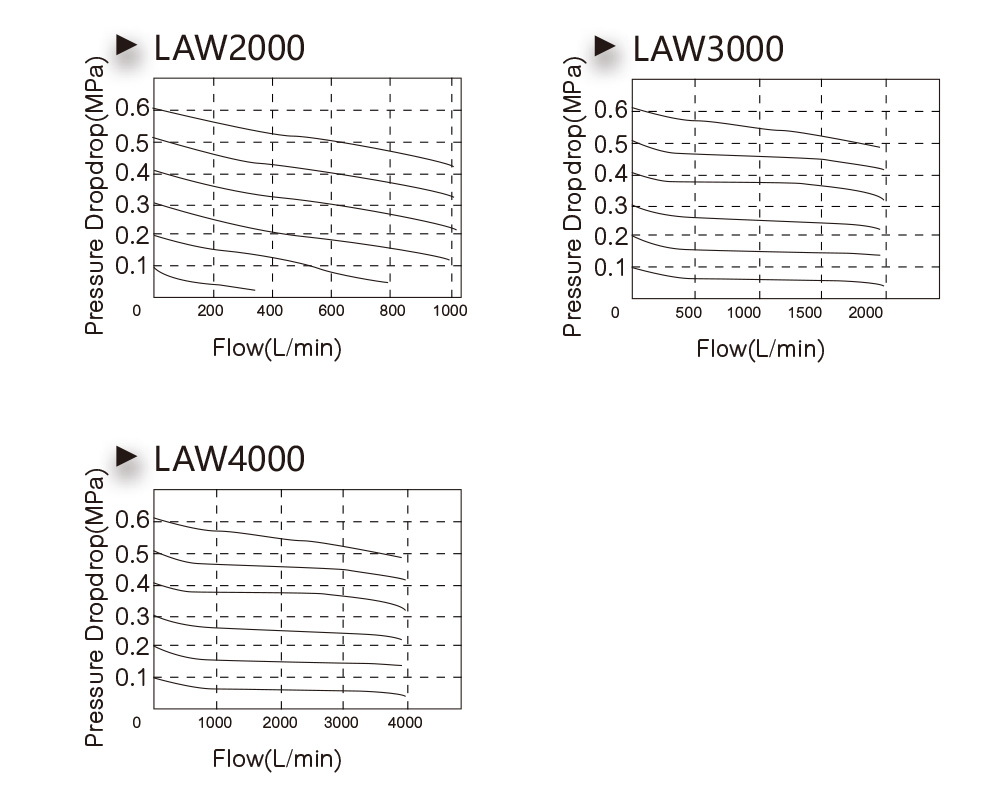

Flowing Character
Supply pressure=0.7MPa

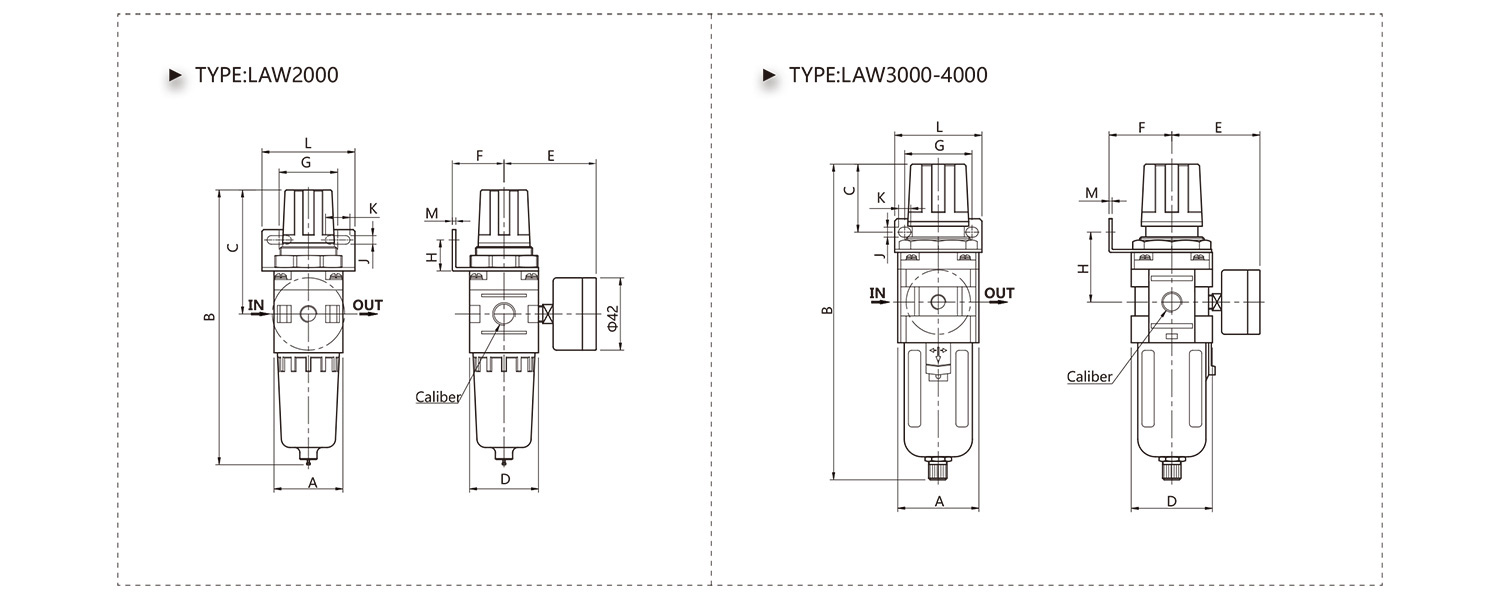

Overall Dimension
|
Model |
Bore |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
|
LAW2000 |
1/8*1/4 |
40 |
164.5 |
78 |
40 |
56.8 |
30 |
34 |
45 |
5.4 |
15.4 |
55 |
|
LAW3000 |
1/4*3/8 |
53 |
211 |
92.5 |
53 |
60.8 |
41 |
40 |
46 |
6.5 |
8 |
53 |
|
LAW4000 |
3/8*1/2 |
70 |
262.5 |
112 |
70 |
70.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
|
LAW4000-06 |
3/4 |
75 |
267 |
114 |
70 |
70.5 |
50 |
54 |
56 |
8.5 |
10.5 |
70 |
|
LAW5000 |
3/4*1 |
90 |
338 |
116 |
90 |
80.5 |
50 |
54 |
60 |
10 |
11 |
91 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LAW Series compressed air filter regulator Suppliers and LAW Series compressed air filter regulator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LAW Series compressed air filter regulator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
