OF Series Filter
Product Details

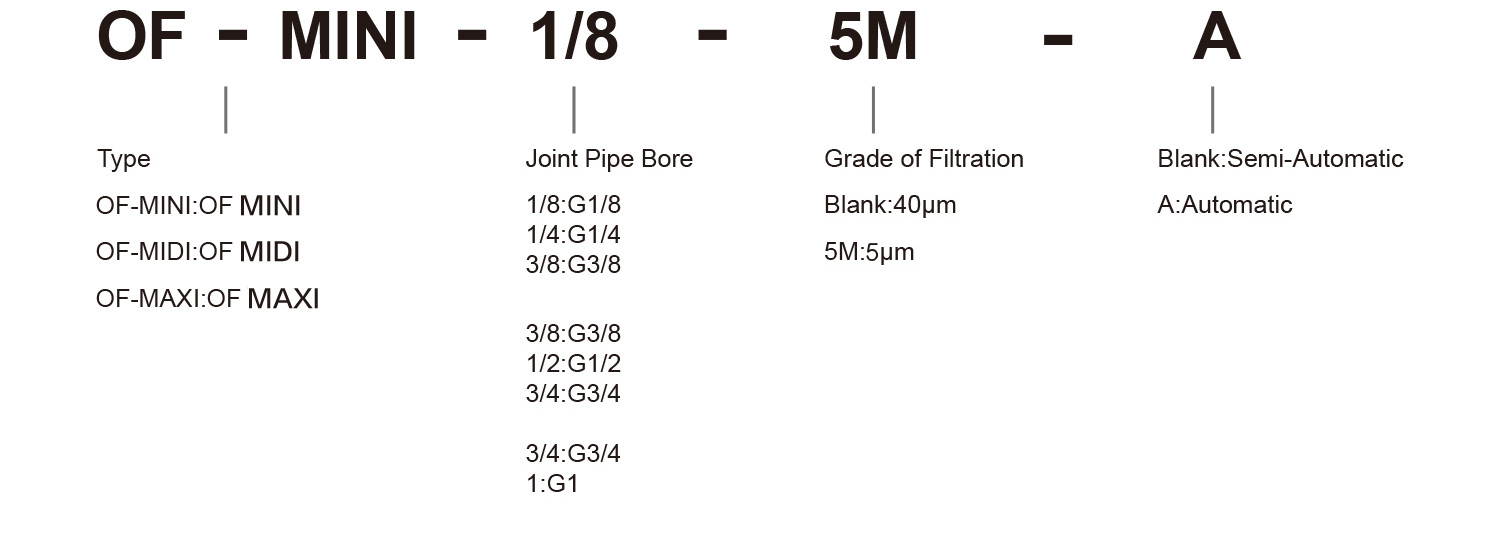

Ordering Code

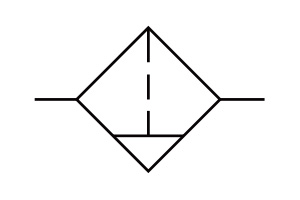

GraPhic symbol
Synopsis
Filter and pressure regulator combine a single unit,and cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.
Specification
|
Model |
OF-MINI |
OF-MIDI |
OF-MAXI |
||||||
|
Operating Fluid |
Air |
||||||||
|
Joint Pipe Bore |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
|
Standard Nominal Flow Rate |
OF-...(-A) |
750 |
1400 |
1600 |
3100 |
3400 |
3400 |
9700 |
10000 |
|
OF-...-5M-(-A) |
900 |
1500 |
1700 |
3400 |
3900 |
4000 |
10000 |
11000 |
|
|
Grade Of Filtration |
40μm/5μm |
||||||||
|
Primary Pressure |
Manual Condensate Drain |
Max：1.6MPa |
|||||||
|
Automatic Condensate Drain |
0.15~1.2MPa |
||||||||
|
Operating Temperature Range |
0~60°C |
||||||||
|
Material |
Housing |
Zinc Die-Casting |
|||||||
|
Filter Bowl |
PC |
||||||||
|
Adjusting Knob |
POM |
||||||||

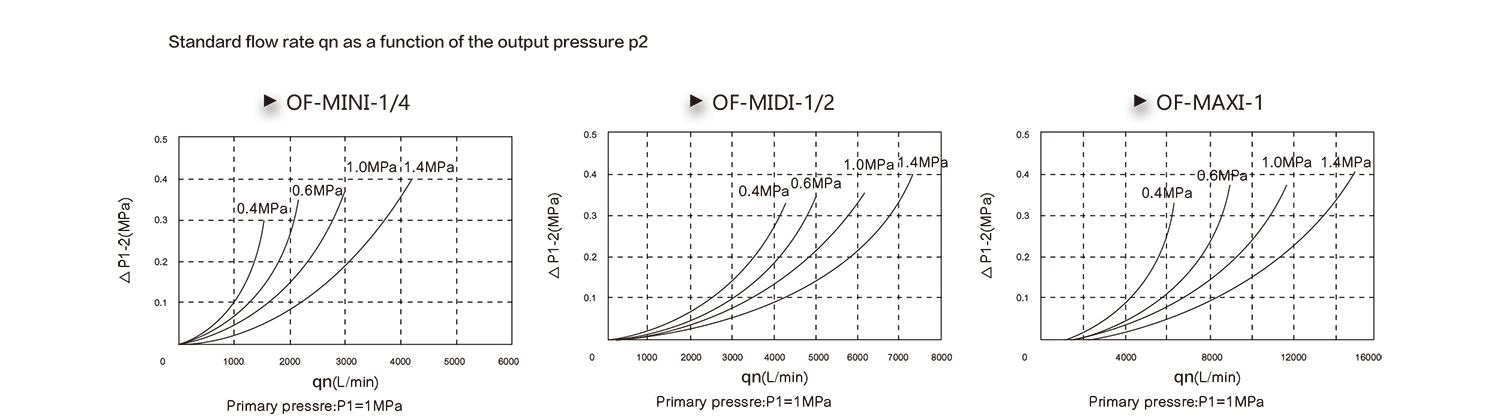

Flowing Character

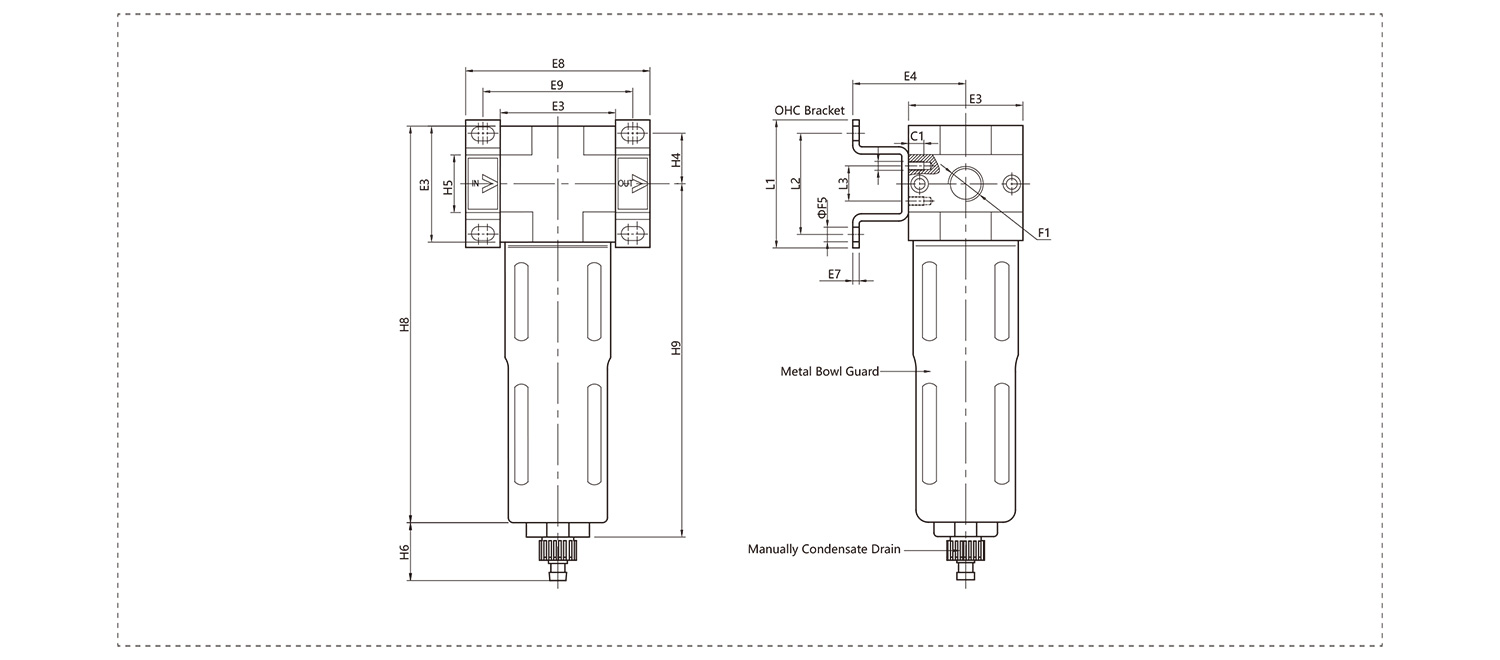

Overall Dimension
|
Model |
E3 |
E4 |
E7 |
E8 |
E9 |
F1 |
F4 |
F5 |
L1 |
L2 |
L3 |
H4 |
H5 |
H6 |
H8 |
H9 |
|
OF-MINI-... |
40 |
39 |
2 |
64 |
52 |
G1/8G1/4G3/8 |
M4 |
4.5 |
44 |
35 |
11 |
17.5 |
20 |
15 |
144 |
129 |
|
OF-MIDI-... |
55 |
47 |
3 |
85 |
70 |
G3/8 G1/2 G3/4 |
M5 |
5.5 |
71 |
60 |
22 |
24.5 |
32 |
15 |
179 |
156 |
|
OF-MAXI-... |
66 |
53 |
3 |
96,116 |
80,91 |
G3/4 G1 |
M5 |
5.5 |
71 |
60 |
22 |
24.5 |
32,40 |
15 |
203 |
175 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China OF Series Filter Suppliers and OF Series Filter company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our OF Series Filter are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
