OL Series Lubricator
Product Details

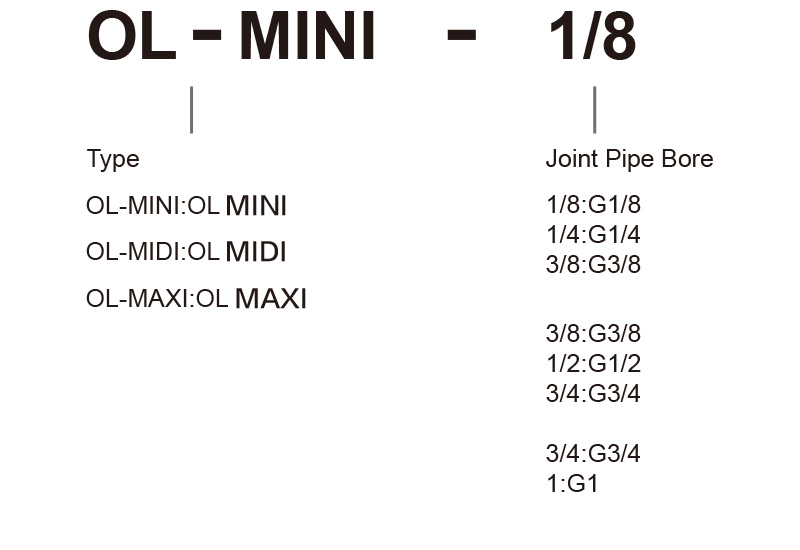

Ordering Code

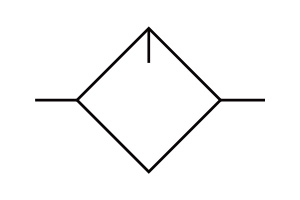

GraPhic symbol
Synopsis
The direct constant-density lubricator add regulated quantity oil to the compressed air.A valve maintains oil mist content proportional to the compressed oil flow.The pressure drop that occurs when the air flow through a sight oil indicator.The drop of the oil flows into the air channel when
it is atomized.
The oil drop rate is controlled by means of the regulating scew.normally,1 to 12 drops/1000L of the air is sufficient.、
Specification
Model |
OL-MINI |
OL-MIDI |
OL-MAXI |
||||||
Operating Fluid |
Air |
||||||||
Joint Pipe Bore |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
Standard Nominal Flow Rate |
1300 |
2300 |
2700 |
5500 |
6100 |
6300 |
8400 |
9000 |
|
Max. Working Pressure |
1.6MPa |
||||||||
Min. Standard Nominal Flow Rate |
3L/min |
6L/min |
10L/min |
||||||
Capacity of Condensate Fluid |
22ml |
43ml |
80ml |
||||||
Operating Temperature Range |
0~60°C |
||||||||
Suggested Lube |
ISO VG32 or Same Grade Oil |
||||||||
Material |
Housing |
Zinc Die-Casting |
|||||||
Filter Bowl |
PC |
||||||||
Metal Bowl Guard |
Aluminium Alloy |
||||||||
Adjusting Knob |
POM |

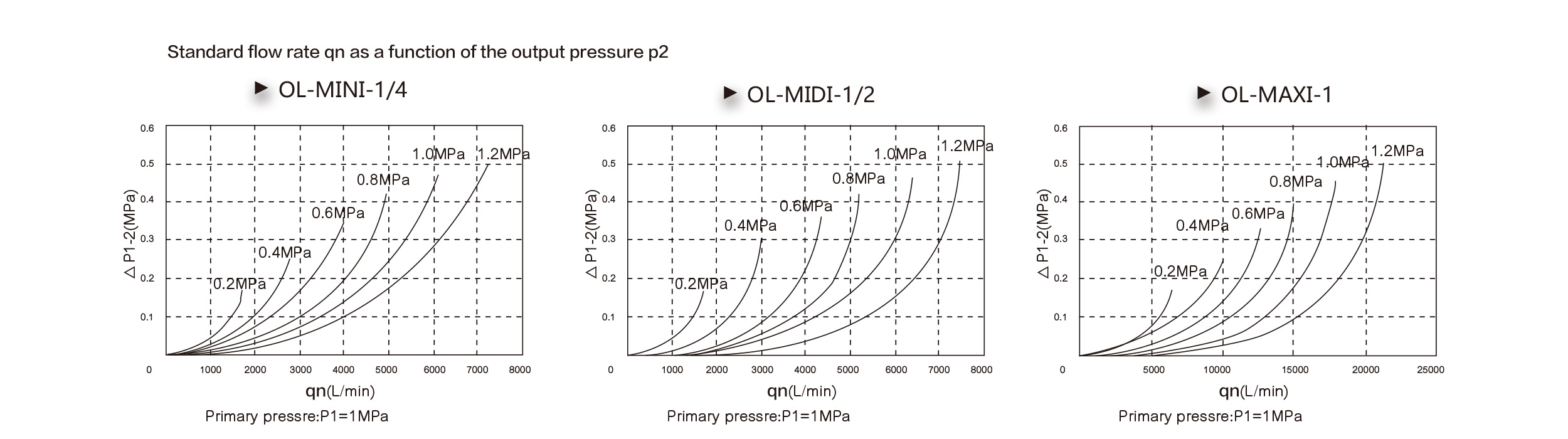

Flowing Character

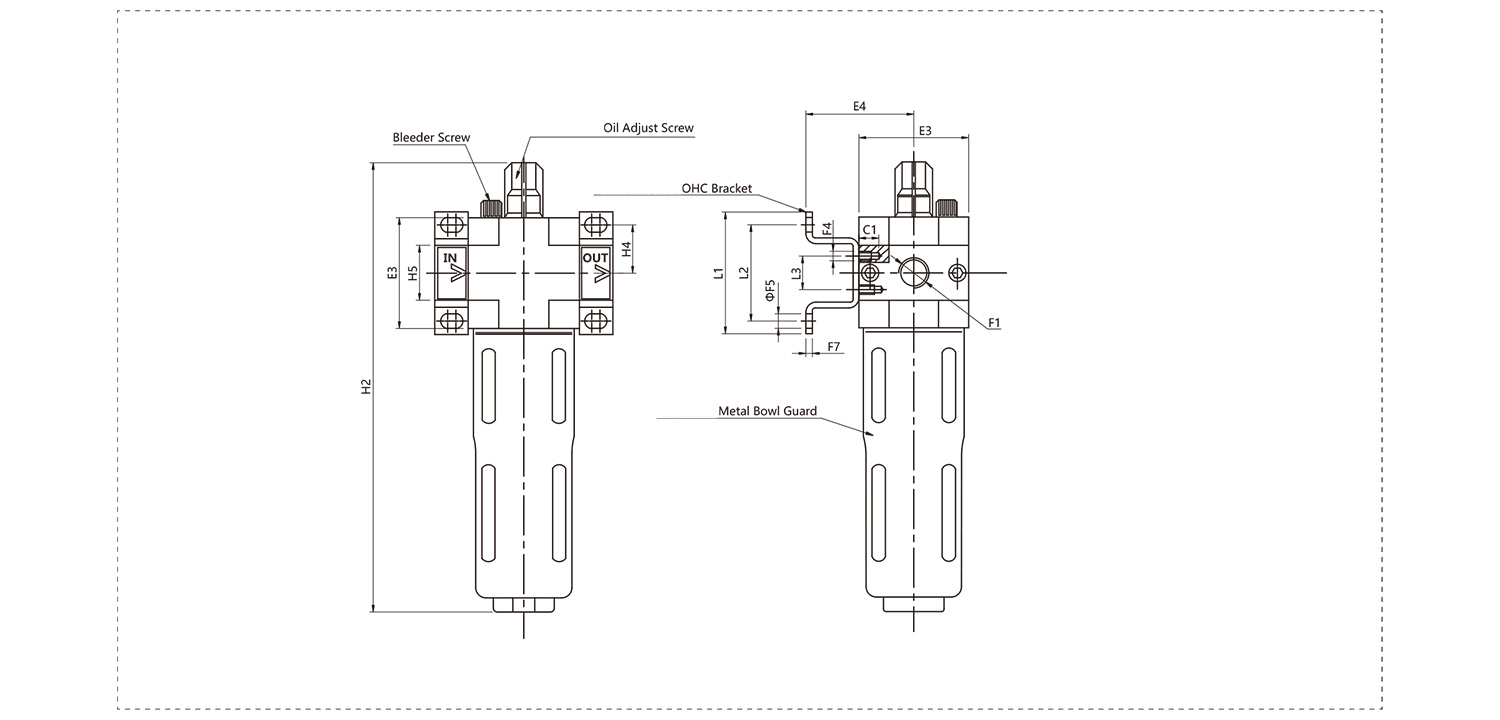

Overall Dimension
Model |
E3 |
E4 |
E7 |
F1 |
F4 |
F5 |
L1 |
L2 |
L3 |
H4 |
H5 |
OL-MINI-... |
40 |
39 |
2 |
G1/8G1/4G3/8 |
M4 |
4.5 |
44 |
35 |
11 |
17.5 |
20 |
OL-MIDI-... |
55 |
47 |
3 |
G3/8 G1/2 G3/4 |
M5 |
5.5 |
71 |
60 |
22 |
24.5 |
32 |
OL-MAXI-... |
66 |
53 |
3 |
G3/4 G1 |
M5 |
5.5 |
71 |
60 |
22 |
24.5 |
32,40 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China OL Series Lubricator Suppliers and OL Series Lubricator company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our OL Series Lubricator are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
