OR Series Regulator
Product Details

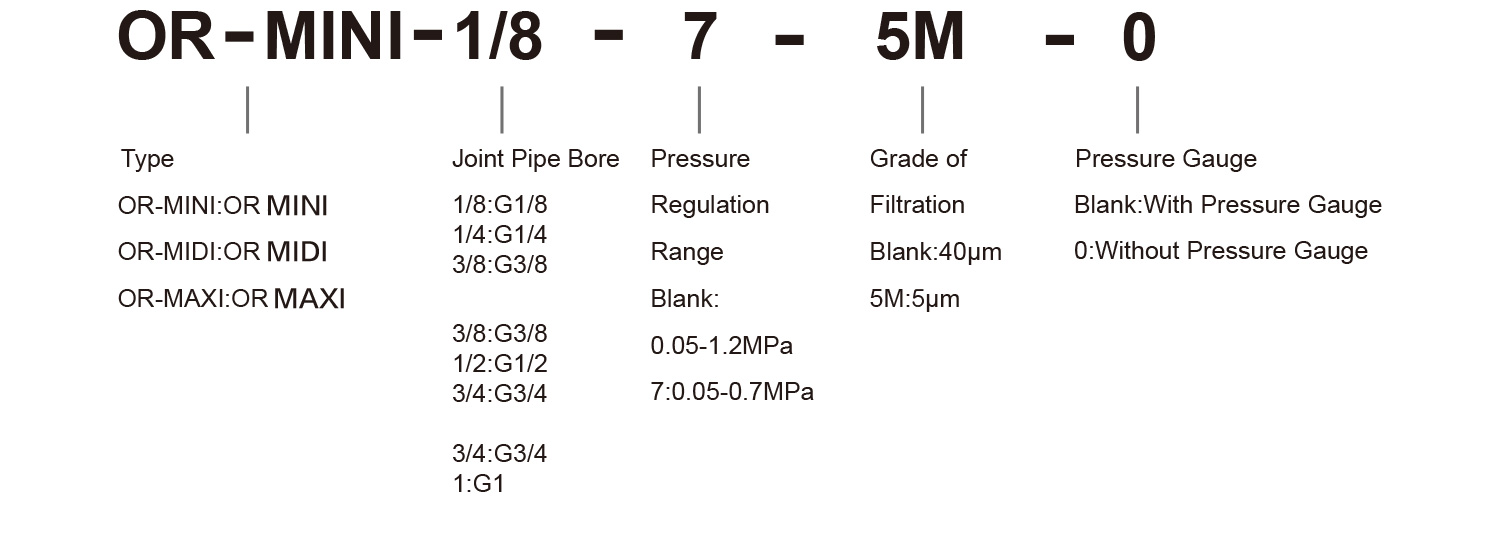

Ordering Code

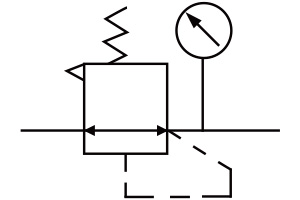

GraPhic symbol
Synopsis
The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
Specification
|
Model |
OR-MINI |
OR-MIDI |
OR-MAXI |
||||||
|
Operating Fluid |
Air |
||||||||
|
Joint Pipe Bore |
G1/8 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G3/4 |
G3/4 |
G1 |
|
|
Standard Nominal Flow Rate |
OR-...(-A) |
800 |
1500 |
1700 |
3200 |
3500 |
3500 |
11000 |
11500 |
|
OR-...-7-(-A) |
1000 |
1600 |
1800 |
3300 |
4000 |
4500 |
12000 |
12500 |
|
|
Primary Pressure |
0.1~1.6MPa |
||||||||
|
Working Pressure |
0.05~1.2MPa/0.05~0.7MPa |
||||||||
|
Operating Temperature Range |
0-60°C |
||||||||
|
Material |
Housing |
Zinc Die-Casting |
|||||||
|
Adjusting Knob |
POM |
||||||||

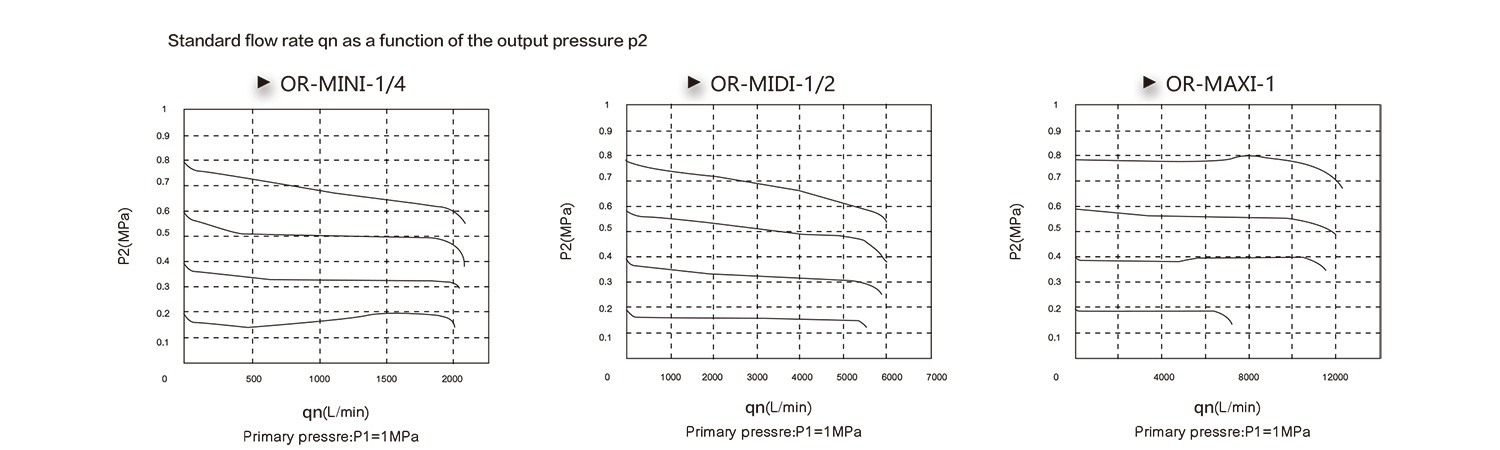

Flowing Character

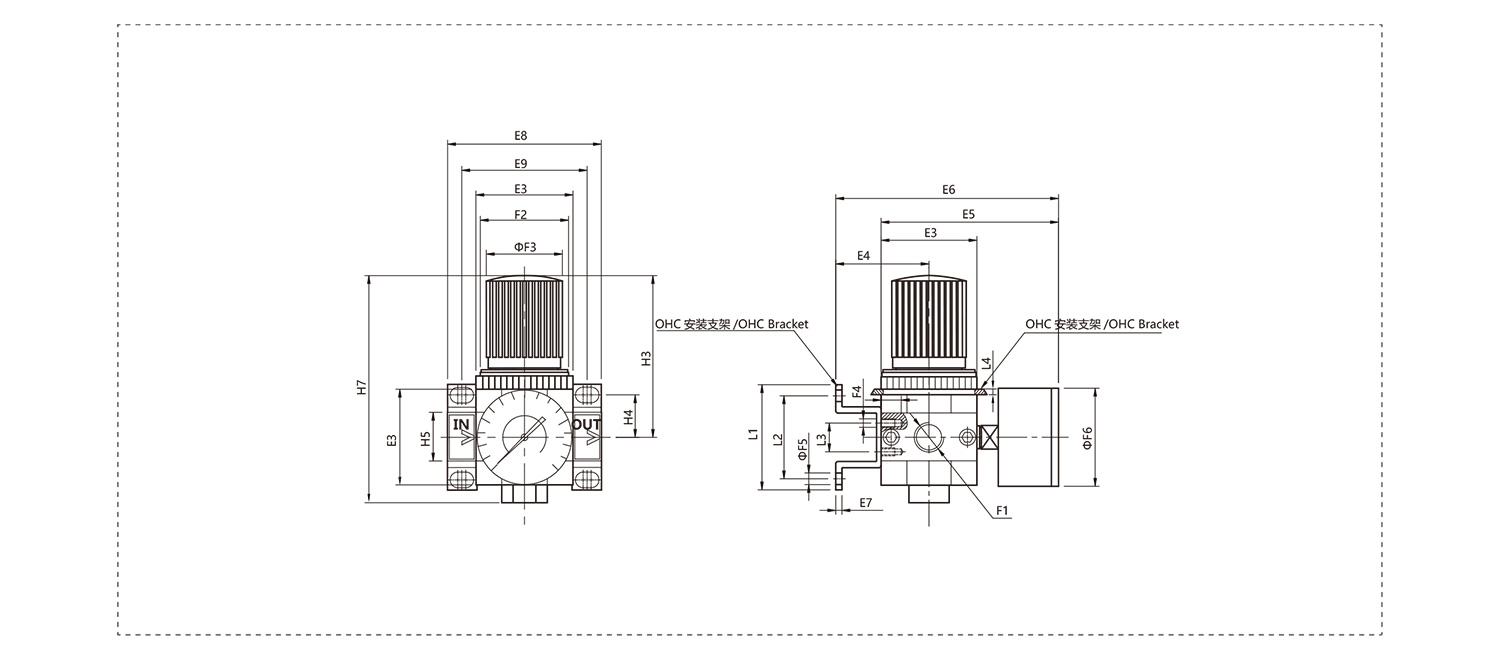

Overall Dimension
|
Model |
E3 |
E4 |
E5 |
E6 |
E8 |
E9 |
F1 |
F2 |
F3 |
F4 |
F5 |
F6 |
L1 |
L2 |
L3 |
L4 |
H3 |
H4 |
H7 |
|
OR-MINI-... |
40 |
39 |
76 |
95 |
64 |
52 |
G1/8G1/4G3/8 |
M36*1.5 |
31 |
M4 |
4.5 |
40 |
44 |
35 |
11 |
Max.3 |
69 |
17.5 |
96 |
|
OR-MIDI-... |
55 |
47 |
93 |
112 |
85 |
70 |
G3/8 G1/2 G3/4 |
M52*1.5 |
50 |
M5 |
5.5 |
52 |
71 |
60 |
22 |
Max.4 |
97 |
24.5 |
96 |
|
OR-MAXI-... |
66 |
53 |
104 |
124 |
96,116 |
80,91 |
G3/4 G1 |
M36*1.5 |
31 |
M5 |
5.5 |
63 |
71 |
60 |
22 |
Max.5 |
80 |
24.5 |
96 |
