LSF Standard Cylinder Accessory Suppliers

LSF Standard Cylinder Accessory

LSF Standard Cylinder Accessory

Product Details

0
Views: 1,043

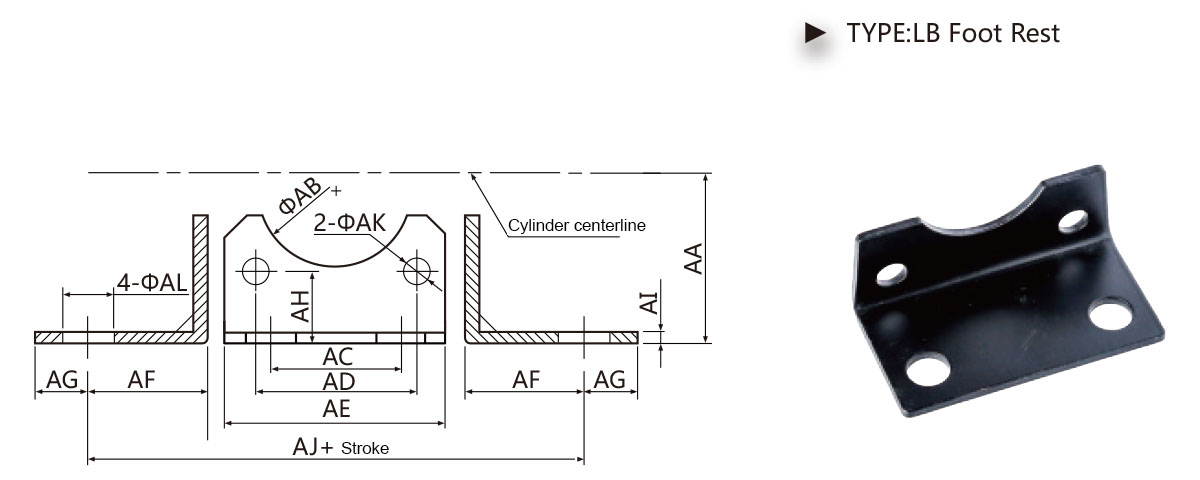

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 32 40 50 63 80 100
AA 32 36 45 50 63 71
AB 30 35 40 45 45 55
AC 32 38 46 56 72 89
AD 32.5 38 46.5 56.5 72 89
AE 45 52 65 76 94 112
AF 24 28 32 31.5 41.5 41.5
AG 9 11 11 11 14 16
AH 15.8 17 21.8 21.8 27 26.5
Al 3.2 3.2 3.2 3.2 4 4
AJ 142 161 170 185 210 220
AK 6.5 6.5 8.5 8.5 10.5 10.5
AL 7 9 9 9 12 14

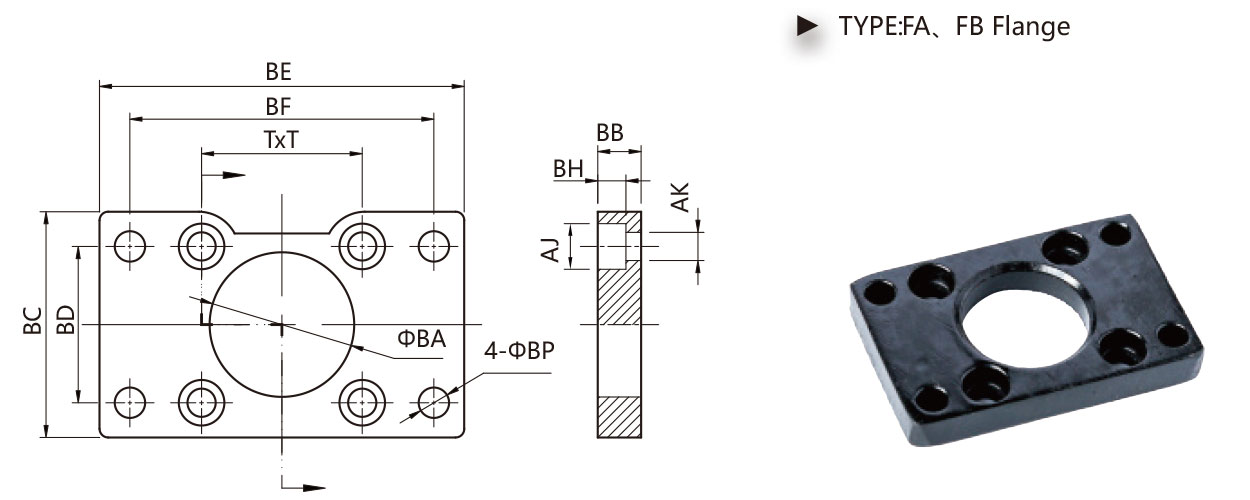

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 32 40 50 63 80 100
BA 30.3 35.3 40.3 45.3 45.3 55.3
BB 10 10 12 12 16 16
BC 45 52 65 76 94 112
BD 32 36 45 50 63 75
BE 80 90 110 120 150 175
BF 64 72 90 100 126 150
BH 6.5 6.5 8.5 8.5 10.5 10.5
AJ 10.5 10.5 13.5 13.5 16.5 16.5
AK 6.5 6.5 8.5 8.5 10.5 10.5
BP 7 9 9 9 12 14
T 32.5 38 46.5 56.5 72 89

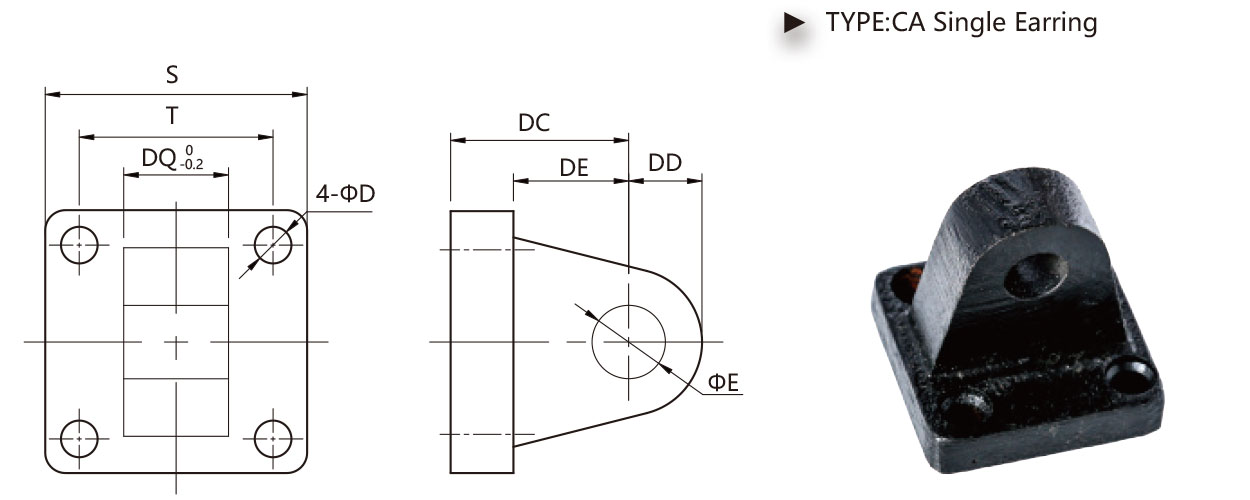

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 32 40 50 63 80 100
S 45 52 65 76 94 112
T 32.5 38 46.5 56.5 72 89
DC 22 25 27 32 36 41
DD 10 11 13 16 16 20
DE 14 17 17 22 24 3
DQ 26 28 32 40 50 60
D 6.5 6.5 8.5 8.5 10.5 10.5
E 10 12 12 16 16 20

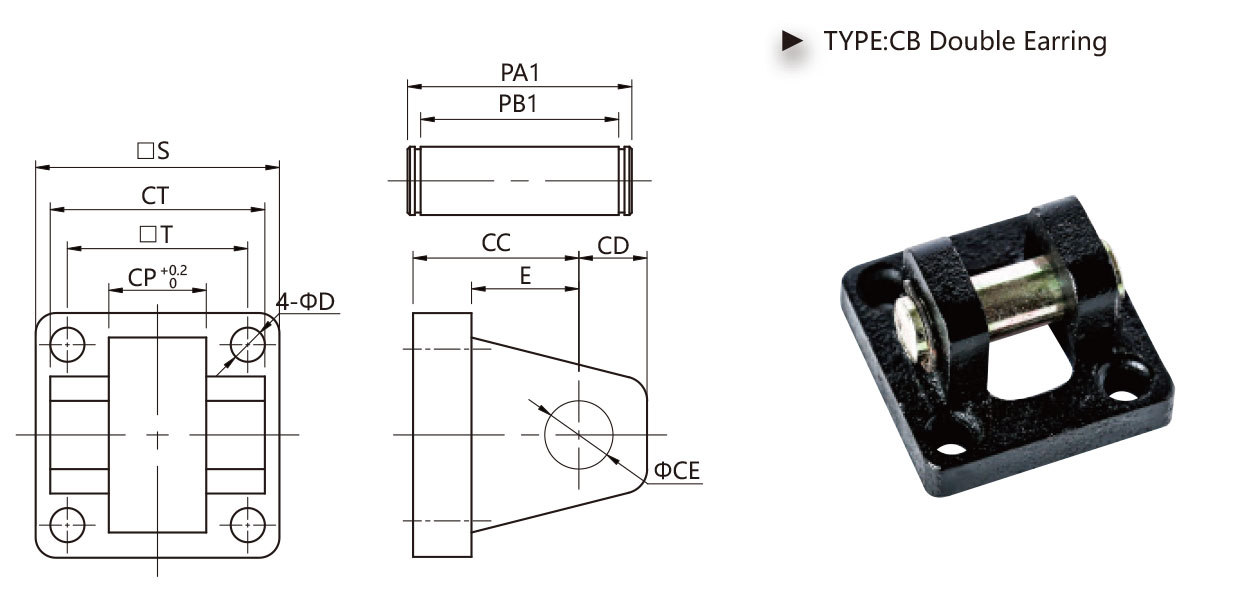

Overall Dimension





Dimension Sheet



Symbol/Bore(mm) 32 40 50 63 80 100
S 45 52 65 76 94 112
T 32.5 38 46.5 56.5 72 89
D 6.5 6.5 8.5 8.5 10.5 10.5
E 14 17 17 22 24 25
CC 22 25 27 32 36 41
CD 10 11 13 16 16 20
CE 10 12 12 16 16 20
CP 26 28 32 40 50 60
CT 45 52 60 70 90 110
PA1 53 60 68 78 100 120
PB1 46.5 53.5 61.5 71.5 91.5 111.5

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LSF Standard Cylinder Accessory Suppliers and LSF Standard Cylinder Accessory company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LSF Standard Cylinder Accessory are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
