LSI Standard Cylinder Accessory

Product Details

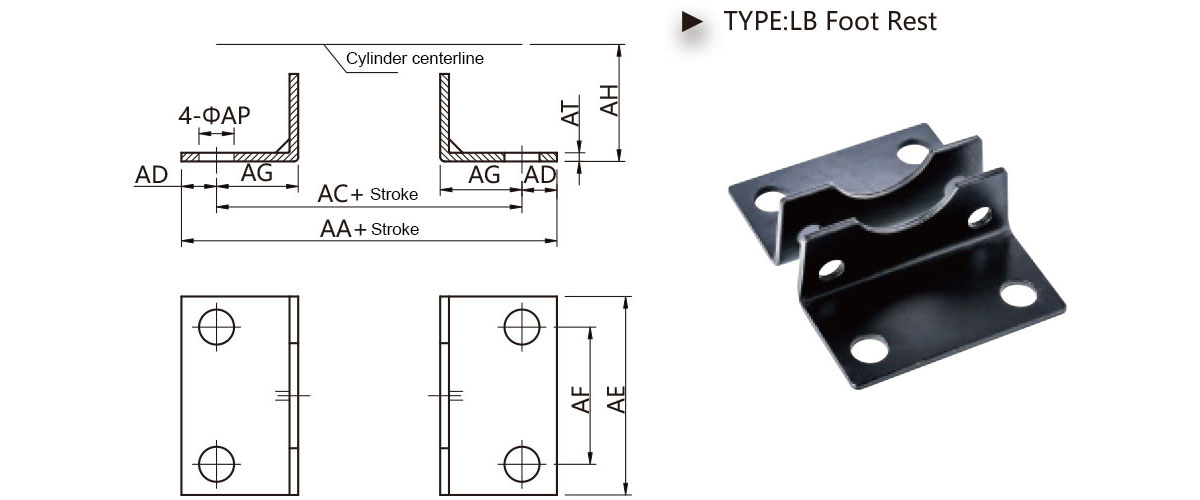

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
AA	158	179	190	209	248	258	290	340	380
AC	142	161	170	185	210	220	250	300	320
AD	8	9	10	3	19	19	20	20	30
AE	47	53	65	75	95	115	140	180	220
AF	32.5	36	45	50	63	75	90	115	135
AG	24	27.5	32	32	41	45	45	60	70
AH	32	36	45	50	63	71	90	115	135
AP	7	9	9	9	12.5	14.5	16	18	22
AT	4	4	4	4	5	5	8	8	9

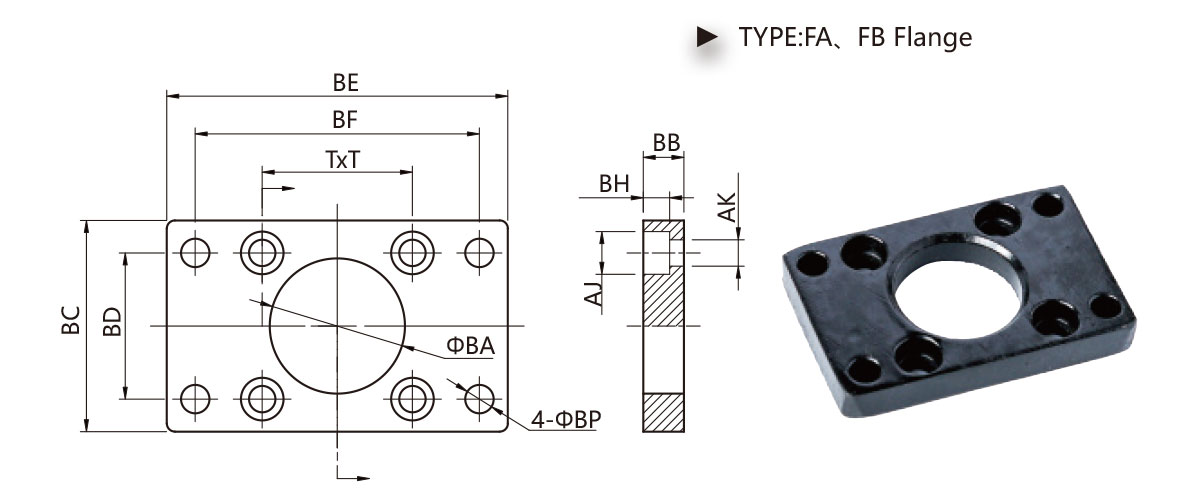

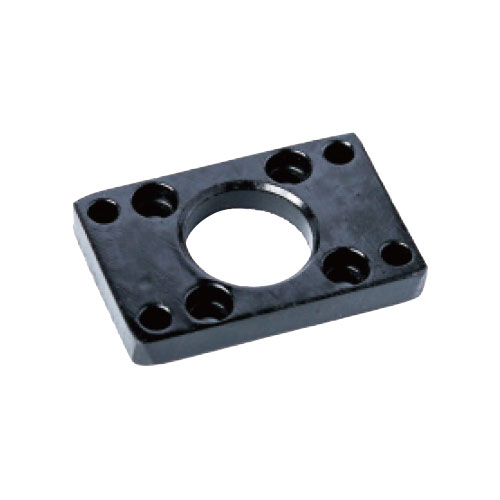

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
BA	30.5	35.5	40.5	45.5	45.5	55.5	60.5	65.5	75.5
BB	10	10	12	12	16	16	20	20	25
BC	50	55.5	65	75	95	115	140	180	220
BD	32	36	45	50	63	75	90	115	135
BE	80	90	110	125	154	186	224	280	320
BF	64	72	90	100	126	150	180	230	270
BH	6.4	6.4	8	7.5	6	6	8	8	12
AJ	10.5	10.5	14	14	16.5	17	19	25	25
AK	7	7	9	9	11	11	13	17	17
BP	7	9.5	9	9	11	14.5	16	18	22
T	32.5	38	46.5	56.5	72	89	110	140	175

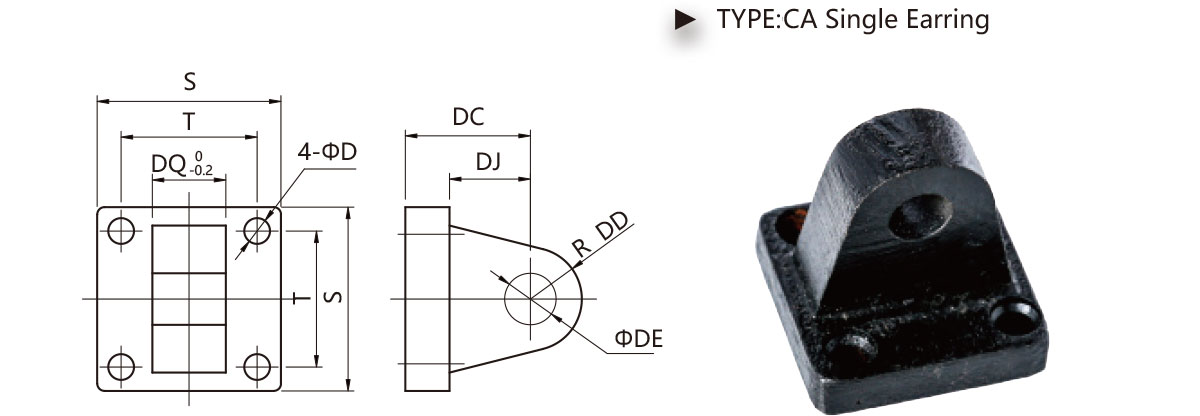

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
S	47	53	65	75	95	115	140	180	220
T	32.5	38	46.5	56.5	72	89	110	140	175
DC	22	25	27	32	36	41	50	55	60
DD	9	12	12	15	15	20	25	30	30
DE	10	12	12	16	16	20	25	30	30
DJ	13	16	17	22	22	27	33	35.5	37
DQ	25.8	27.8	31.7	39.7	49.7	59.7	69.7	89.7	89.7
D	6.5	6.5	8.5	8.5	10.5	10.5	12.5	16.5	16.5

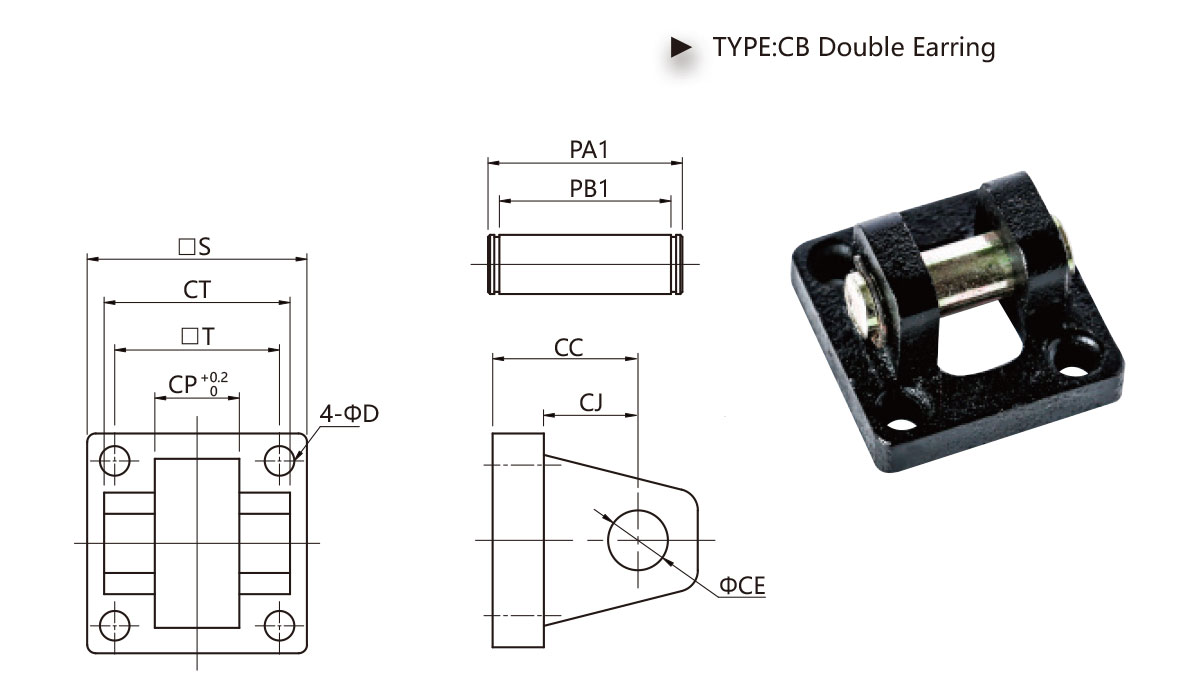

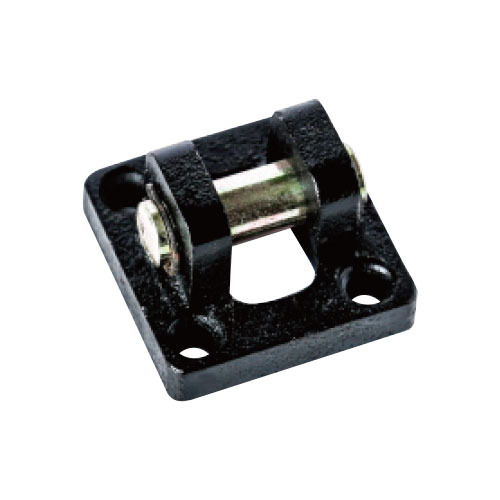

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
S	45	52	65		95	115	140	180	220
T	32.5	38	46.5	56.5	-	89	110	140	175
CC	22	25	27	32	36	41	50	55	60
CE	10	12	12	16	16	20	25	30	30
CJ	13	16	17	22	22	27	31	35.5	36
CP	26	28	32	40	50	60	70	90	90
CT	45	52	60	z	90	110	130	170	170
PA1	52.5	60	68	79.5	99	119	139	181	181
PB1	46	53.5	62	72	90.5	110.5	131.5	171.5	171.5
D	6.5	6.5	8.5	8.5	10.5	10.5	12.5	16.5	16.5

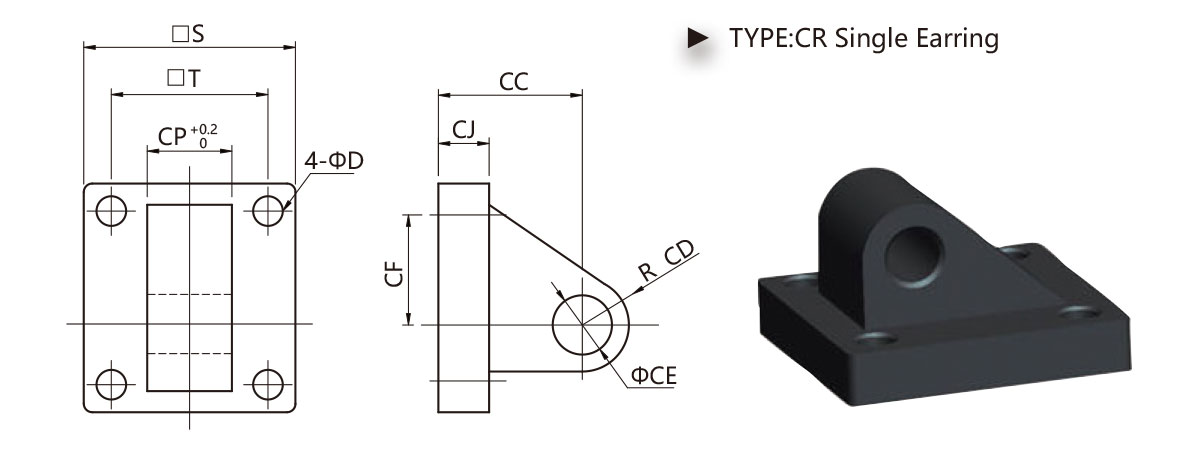

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
S	47	53	65	75	95	115	140	180	220
T	32.5	38	46.5	56.5	72	89	110	140	175
CC	22	25	27	32	36	41	90	115	135
CD	9	12	12	15	15	20	22	31	31
CE	10	12	12	16	16	20	25	30	30
CF	21	24	33	37	47	55	70	97	105
CJ	8	10	12	12	14	15	20	25	30
CP	25.8	27.8	31.7	39.7	49.7	59.7	69.7	89.7	89.7
D	6.5	6.5	8.5	8.5	10.5	10.5	12.5	16.5	16.5

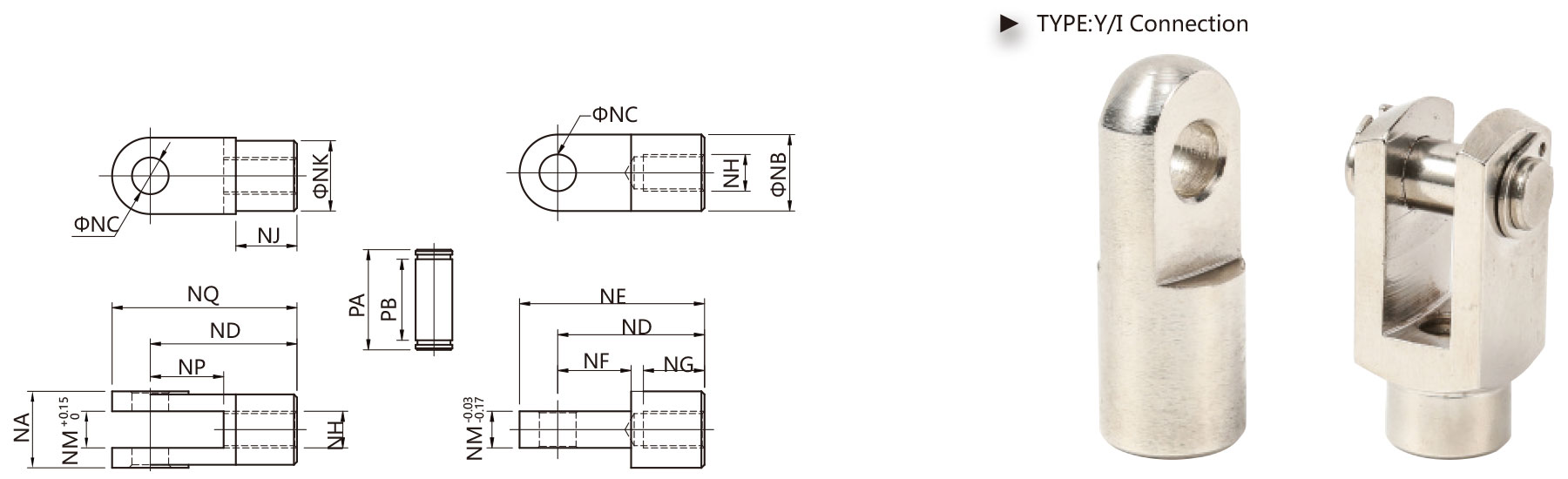

Overall Dimension

Dimension Sheet

Symbol/Bore(mm)	32	40	50	63	80	100	125	160	200
NA	19	25.4	32	32	44.4	44.4	55	70	70
NB	20	24	32	32	40	40	-	-	-
NC	10	12	16	16	20	20	30	35	35
ND	40	48	64	64	80	80	110	144	144
NE	52	67	89	89	112	112	155	201	201
NF	15	24	32	32	40	40	51	65	65
NG	20	20	23	23	30	30	﹣	-	-
NH	M10x1.25	M12x1.25	M16x1.5	M 16x1.5	M20x1.5	M20x1.5	M27x2	M36x2	M36x2
NJ	12	20	22	22	30	30	-	-	-
NK	18	23	30	30	39	39	-	-	-
NM	10	12	16	16	20	20	30	35	35
NP	20	24	32	32	40	40	54	72	72
NQ	52	62	83	83	105	105	148	191	191
PA	26.2	32.8	39.3	39.3	53.3	53.3	64	80	80
PB	20	26.5	33	33	45	45	55.6	70.6	70.6
