Magnetic Switch CS1 G1

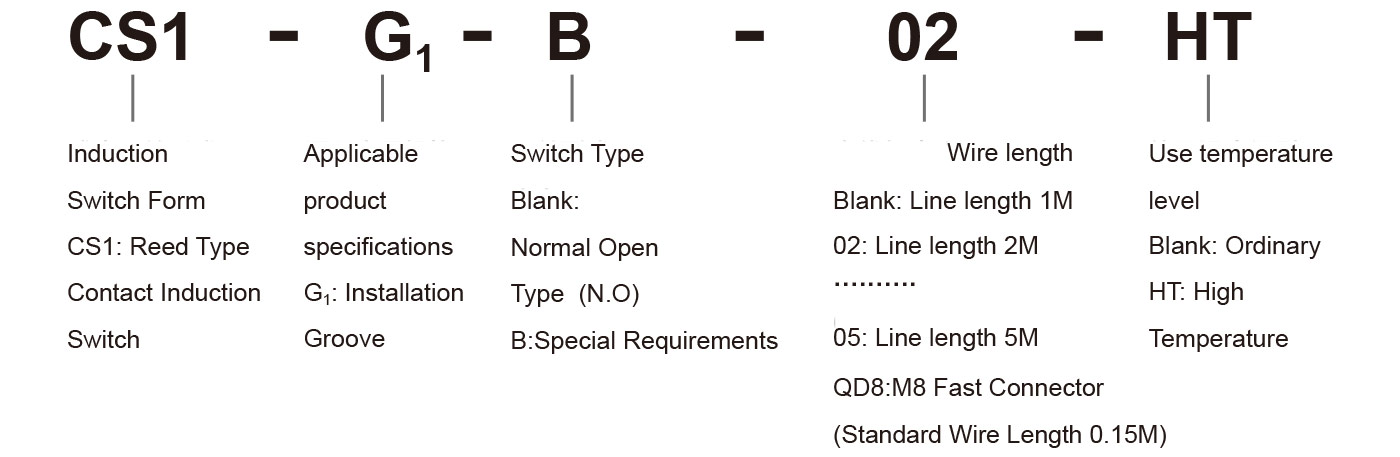

Ordering Code

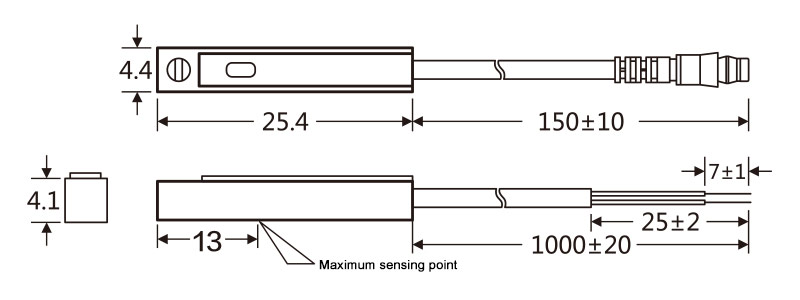

GraPhic symbol

Specification

Model	CS1-G1
Switch Logic	SPST Normal Open Type
Sensor Type	Contact Reed Type
Opreating Voltage	5~240V DC/AC
Switching Current	100mA max
Contact Rating	10W max
Current Consumption	Nothing
Voltage Drop	2.5V max@100mA
Leakage Current	Nothing
Indicator	Red LED
Cable	3.2Φ, 2C, Grey Oil Resistant PVC
Sensitivity	60 Gauss
Max. switch Frequency	200Hz
Temperature Frequency	-10~70℃
Shock	30G
Vibration	9G
Fence Classfication	IEC 529 IP67(NEMA6)
Protcetion Circuit	Nothing

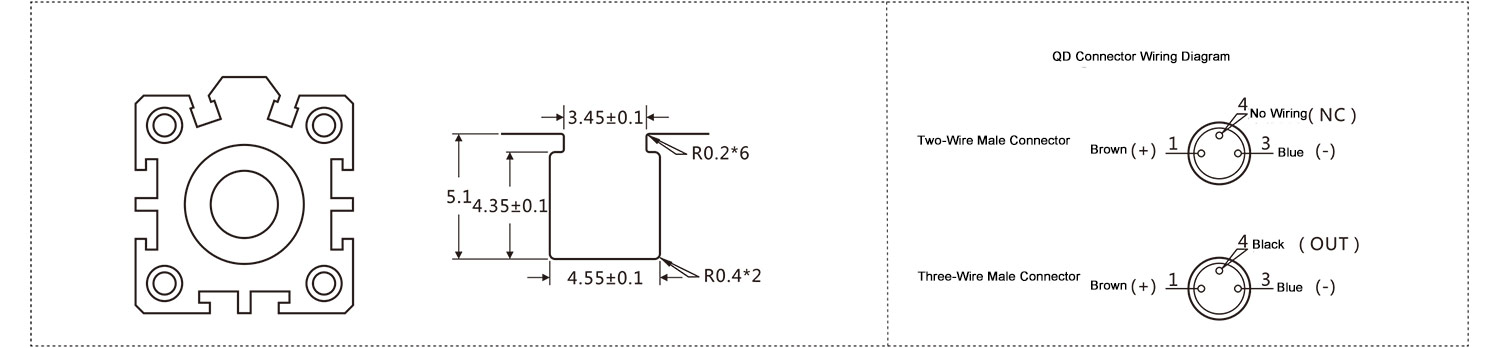

Conntct Diagram

Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Magnetic Switch CS1 G1 Suppliers and Magnetic Switch CS1 G1 company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Magnetic Switch CS1 G1 are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
