Magnetic Switch CS1 M

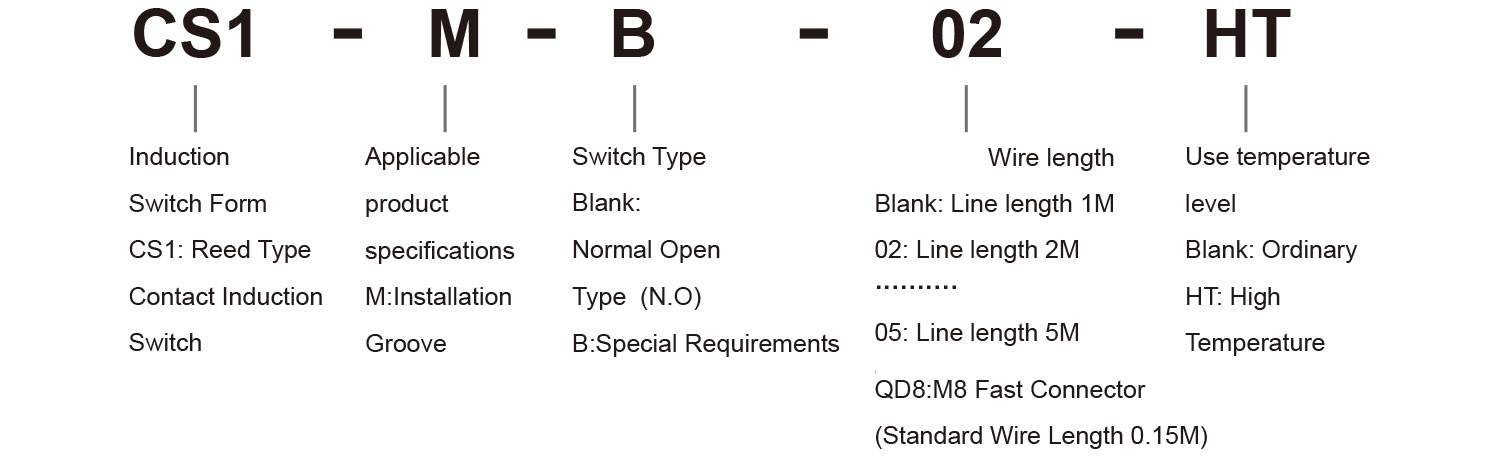

Ordering Code

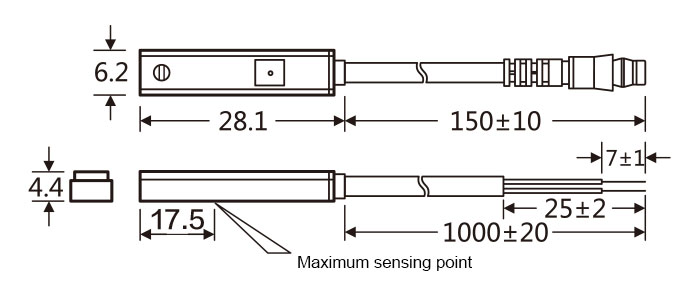

GraPhic symbol

Specification

Model	CS1-M
Switch Logic	SPST  Normal Open Type
Sensor Type	Contact Reed Type
Opreating Voltage	5~240V DC/AC
Switching Current	100mA max
Contact Rating	10W max
Current Consumption	Nothing
Voltage Drop	2.5V max@100mA
Leakage Current	Nothing
Indicator	Red LED
Cable	3.2Φ, 2C, Grey Oil Resistant PVC
Sensitivity	40 Gauss
Max. switch Frequency	200Hz
Temperature Frequency	-10~70℃
Shock	30G
Vibration	9G
Fence Classfication	IEC 529 IP67(NEMA6)
Protcetion Circuit	Nothing

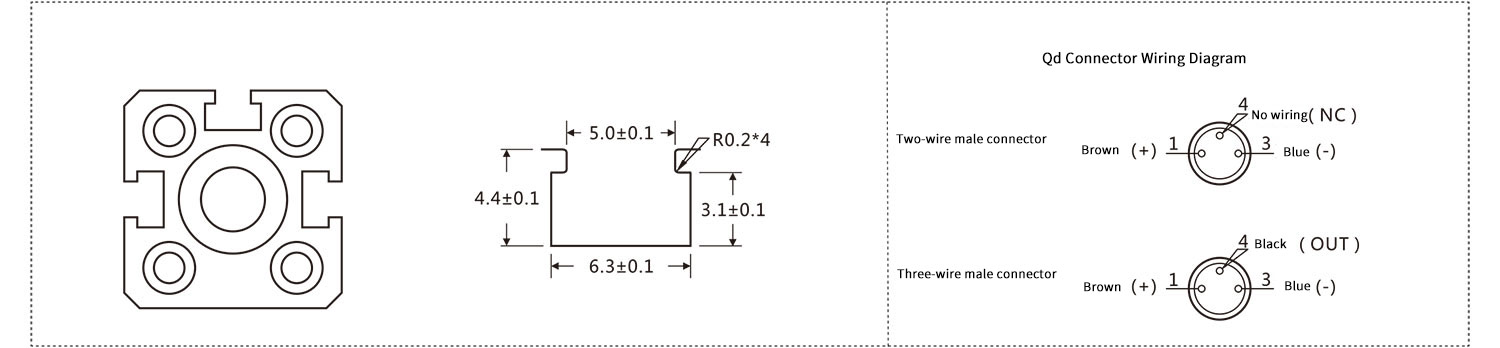

Conntct Diagram
