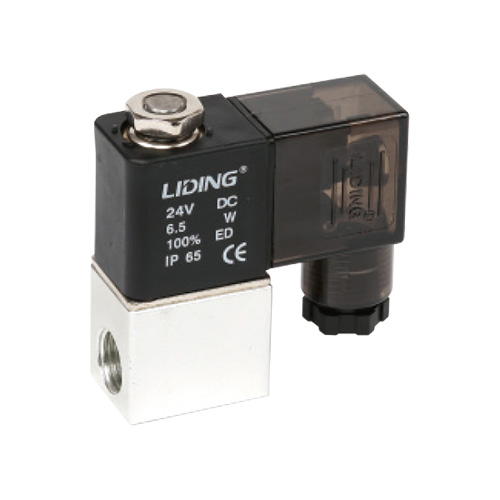

2V Series Two-Position Two-Way Solenoid Valve
Product Details

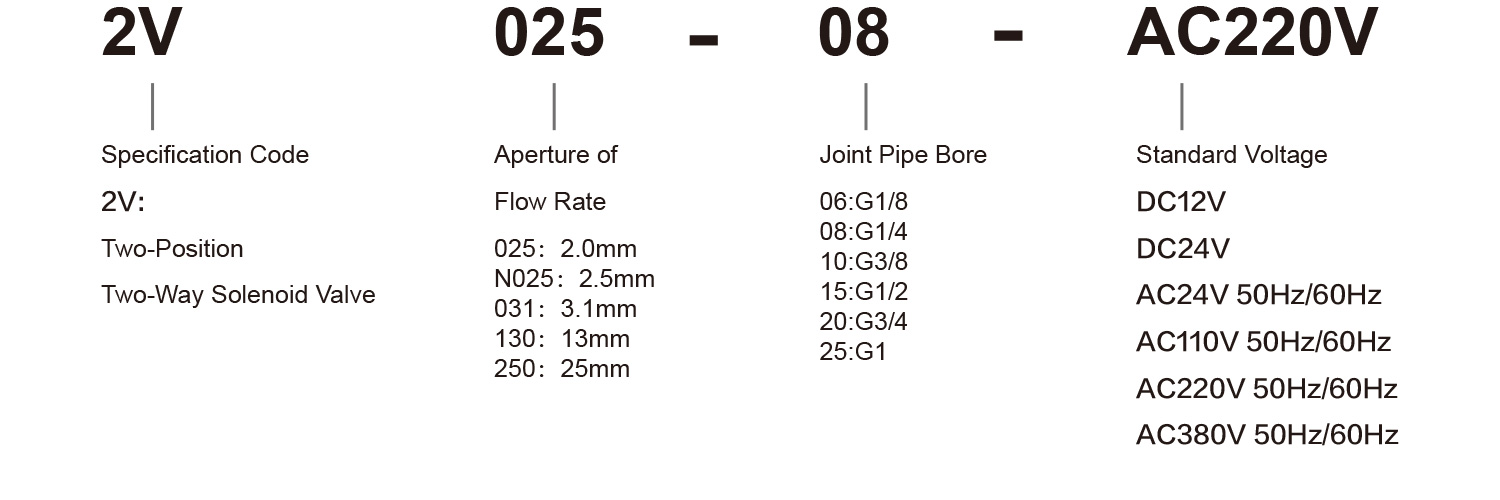

Ordering Code

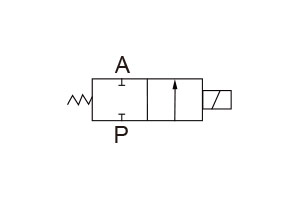

Graphic Symbol
Specification
| Model | 2V025-06/08 | 2VN025-06/08 | 2V031-08 | 2V130-10 | 2V130-15 | 2V250-20 | 2V250-25 |
| Working Medium | Air.Water.Oil | ||||||
| Motion Pattern | Direct Drive Type | Guide Type | |||||
| Type | Normal Close Type | ||||||
| Aperture of Flow Rate | 2 | 2.5 | 3.1 | 13 | 25 | ||
| CVValue | 0.23 | 6.2 | 23 | ||||
| Joint Pipe Bore | G1/8 & G1/4 | G1/4 | G3/8 | G1/2 | G3/4 | G1 | |
| Operation Fluid Viscosity | 20 CST 以下/20 CST Below | ||||||
| Working-Pressure | 0.05～0.7MPa | ||||||
| Max. Pressure Resistance | 0.95MPa | ||||||
| Operating Temperature Range | -10～80℃ | ||||||
| Voltage Range | ±10% | ||||||
| Voltage Range | IP65 | ||||||
| Insulation | F | ||||||
| Power Consumption | AC:5.5VA/DC:4.8W 或 AC:5.5VA/DC:6.5W | ||||||
| Material of Body | Aluminum or Brass (Nickel Coated) | ||||||
| Material of Oil Seal | NBR/VITON | ||||||
| Shortest Excitation Time | 0.05 Second | ||||||

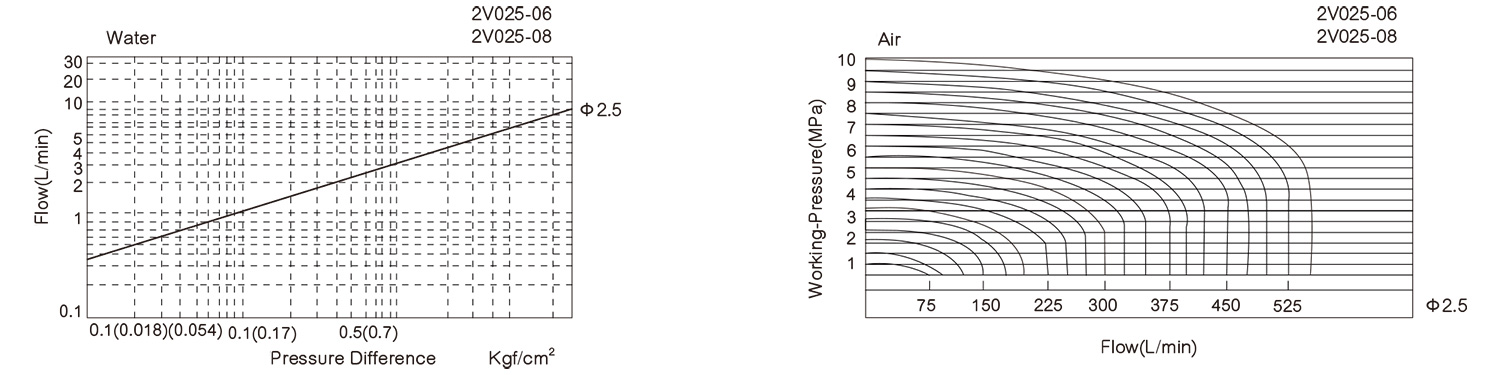

Flowing Character
Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 2V Series Two-Position Two-Way Solenoid Valve Suppliers and 2V Series Two-Position Two-Way Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 2V Series Two-Position Two-Way Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
