2W/2S（Large Aperture) Series Solenoid Valve
Product Details

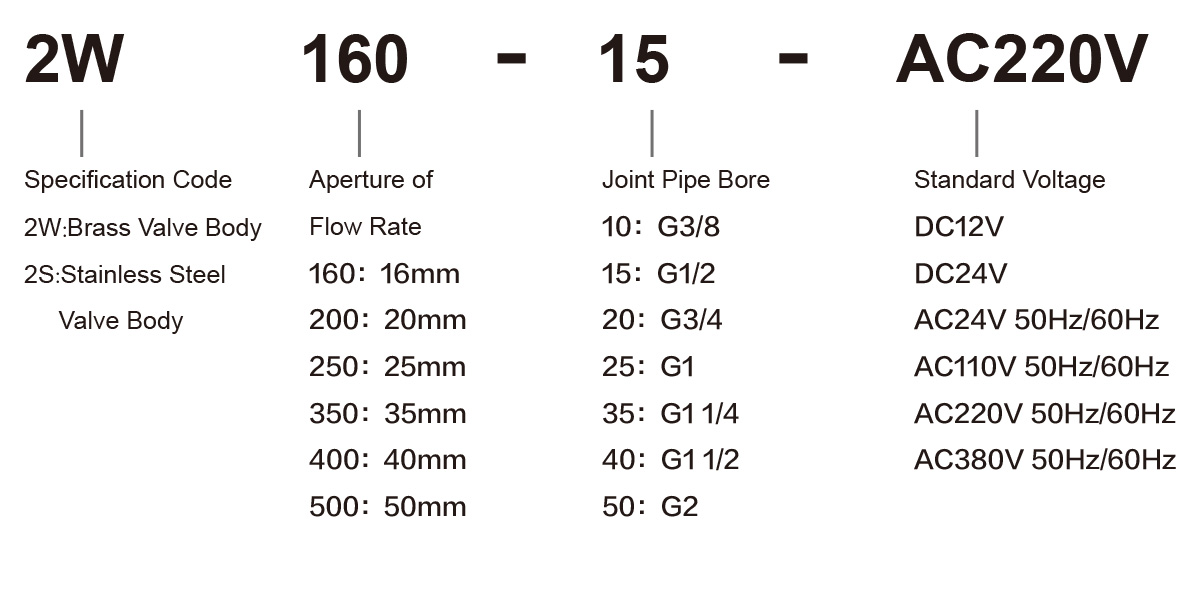

Ordering Code

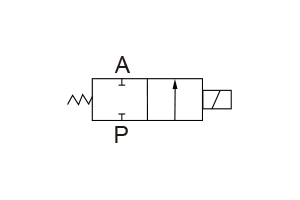

Graphic Symbol
Specification
| Model | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2S-10 | 2S-15 | 2S-20 | 2S-25 | 2S-35 | 2S-40 | 2S-50 | |
| Aperture of Flow Rate | 16 | 20 | 25 | 35 | 40 | 50 | |
| CVValue | 4.8 | 7.6 | 12 | 24 | 29 | 48 | |
| Joint Pipe Bore | G3/8 | G1/2 | G3/4 | G1 | G1¼ | G1½ | G2 |
| Motion Pattern | Guide Type | ||||||
| Working Medium | Air.Water.Oil | ||||||
| Type | Normal Close Type | ||||||
| Operation Fluid Viscosity | 20 CST Below | ||||||
| Working-Pressure | Air:0～0.7MPa、Water:0～0.5MPa、Oil:0～0.5MPa | ||||||
| Max Pressure Resistance | 1.6MPa | ||||||
| Operating Temperature Range | -10～80℃ | ||||||
| Voltage Range | ±10% | ||||||
| Material of Body | Brass.Stainless Steel | ||||||
| Material of Oil Seal | NBR/FKM/HNBR | ||||||

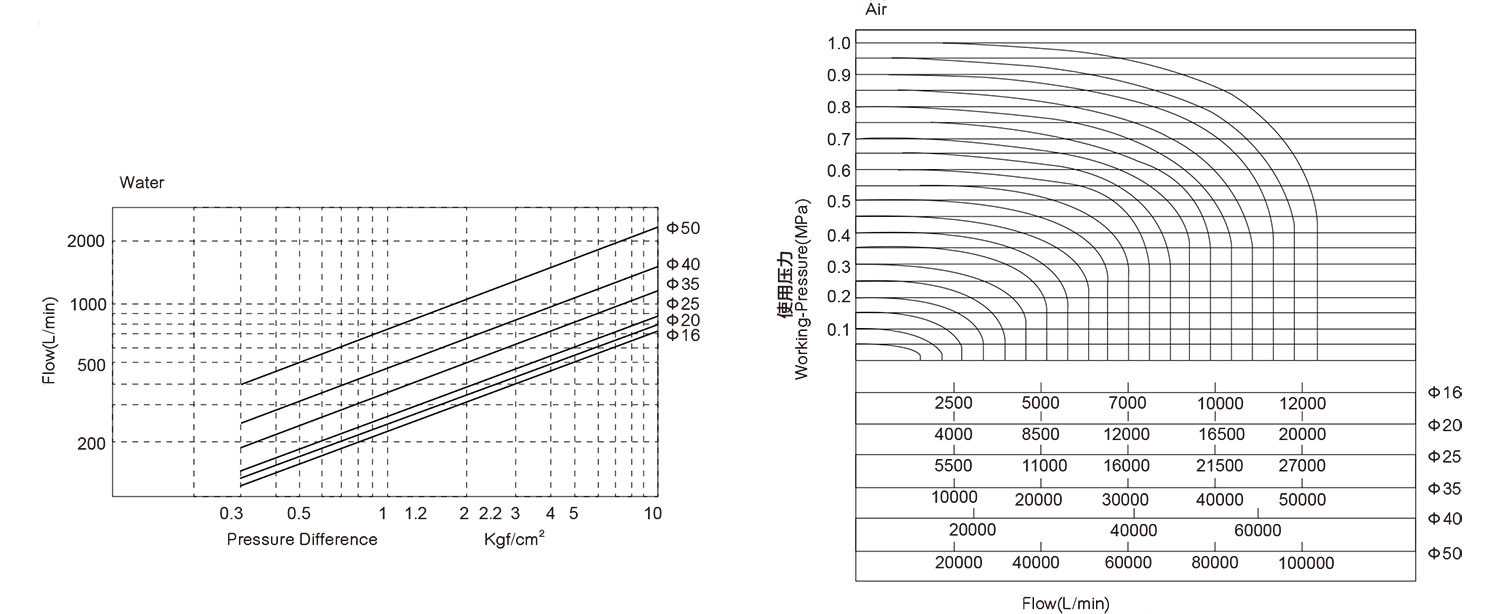

Flowing Character

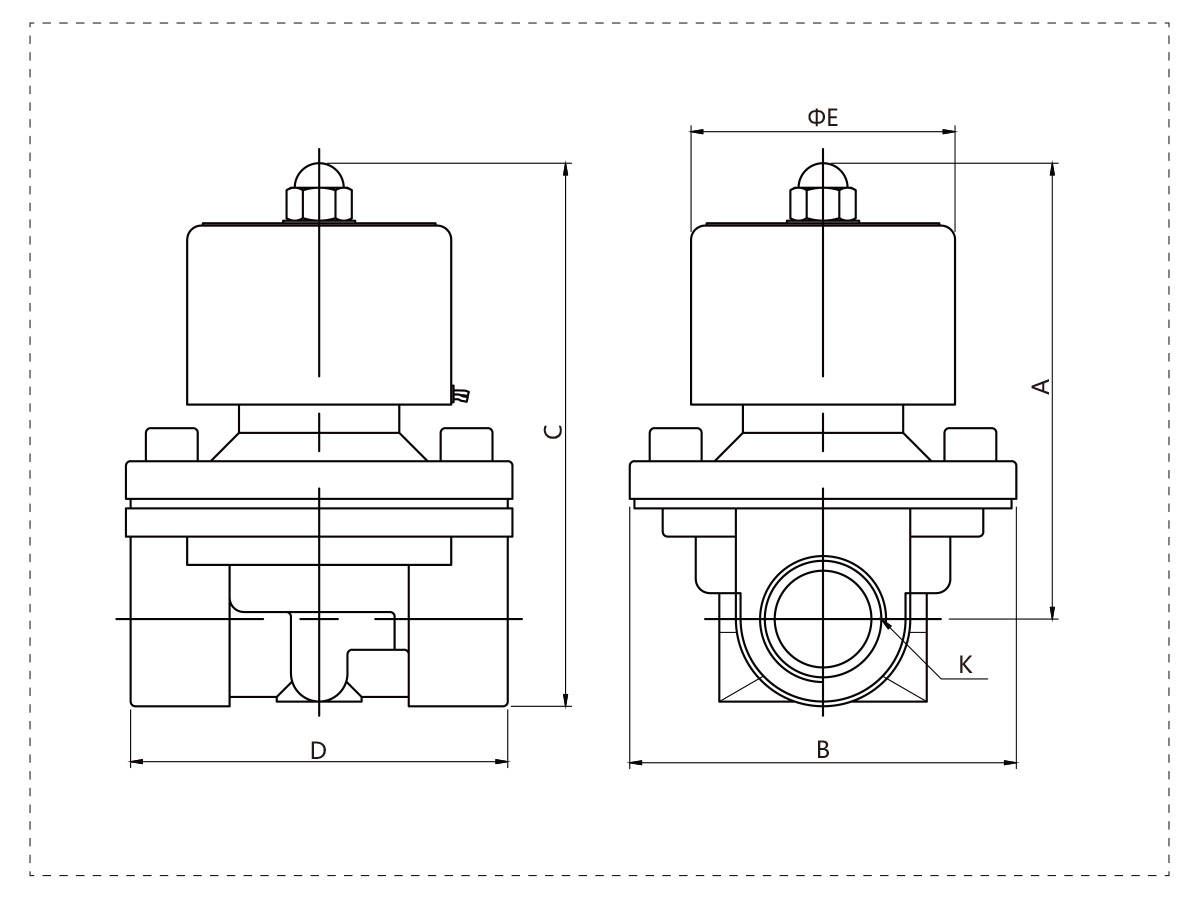

Overall Dimension
|
Model |
A |
B |
C |
D |
E |
K |
|
2W160-10 |
93 |
57 |
106.5 |
69 |
50.4 |
G3/8 |
|
2W160-15 |
93 |
57 |
106.5 |
69 |
50.4 |
G1/2 |
|
2W200-20 |
100 |
57 |
116.4 |
73 |
50.4 |
G3/4 |
|
2W250-25 |
105 |
73.4 |
126 |
99 |
50.4 |
G1 |
|
2W350-35 |
142 |
95 |
172 |
123 |
70.2 |
G1-1/4 |
|
2W400-40 |
142 |
95 |
172 |
123 |
70.2 |
G1-1/2 |
|
2W500-50 |
172 |
123 |
209 |
168 |
70.2 |
G2 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 2W/2S（Large Aperture) Series Solenoid Valve Suppliers and 2W/2S（Large Aperture) Series Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 2W/2S（Large Aperture) Series Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
