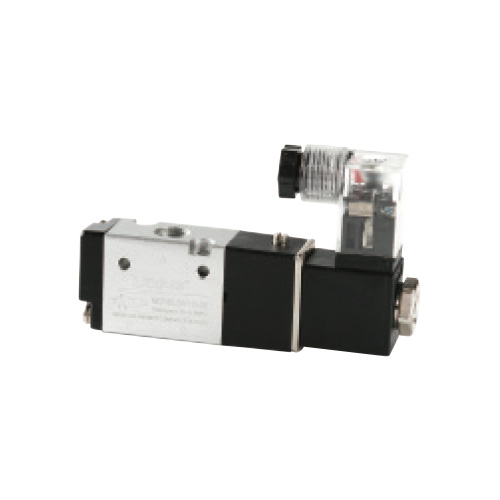

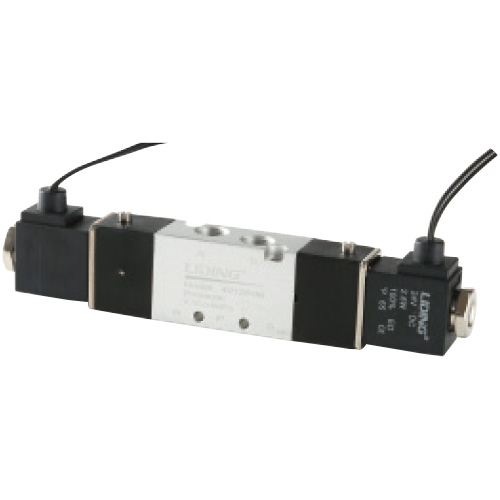

3V/4V 100 Series pneumatic control valve、Collecting Plate、Base
Product Details
Ordering Code
Specification
|
Model |
3V110-M5 | 3V120-M5 | 3V110-06 | 3V120-06 | 4V110-M5 | 4V120-M5 | 4V130C-M5 | 4V130E-M5 | 4V130P-M5 | 4V110-06 | 4V120-06 | 4V130C-06 | 4V130E-06 | 4V130P-06 |
| 3A110-M5 | 3A120-M5 | 3A110-06 | 3A120-06 | 4A110-M5 | 4A120-M5 | 4A130C-M5 | 4A130E-M5 | 4A130P-M5 | 4A110-06 | 4A120-06 | 4A130C-06 | 4A130E-06 | 4A130P-06 | |
|
Working Medium |
40 Micron Filtered Air |
|||||||||||||
|
Motion Pattern |
Inner Guide Type |
|||||||||||||
|
Joint Pipe Bore |
Intake = Outlet=M5 |
Intake = Outlet=G1/8 | Intake = Outlet = Exhaust=M5 |
Intake = Outlet = Exhaust =G1/8 |
||||||||||
|
The Position Counting |
Two-position Three-way |
Two-position Five-way | Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
|
Operating Temperature |
5~50℃ (41~122°F) |
|||||||||||||
|
Effective Sectional Area |
5.5mm²(Cv=0.31) |
12mm²(Cv=0.67) | 5.5mm²(Cv=0.31) | 5mm²(Cv=0.28) | 12mm²(Cv=0.67) | 9mm²(Cv=0.5) | ||||||||
|
Working-Pressure |
0.15~0.8MPa |
|||||||||||||
|
MaxPressure Resistance |
1.2MPa |
|||||||||||||
|
Power Consumption |
DC：2.8W |
|||||||||||||
|
Protection Class |
IP65 (DIN40050) |
|||||||||||||
|
Insulation |
Class F |
|||||||||||||
|
Wiring Form |
Lead Wire or Connector Type |
|||||||||||||
|
Voltage Range |
±10% |
|||||||||||||
|
Highest Action Frepuency |
5 Cycle/Sec |
3 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | ||||||||||
|
Shortest Excitation Time |
0.05 Second |
|||||||||||||

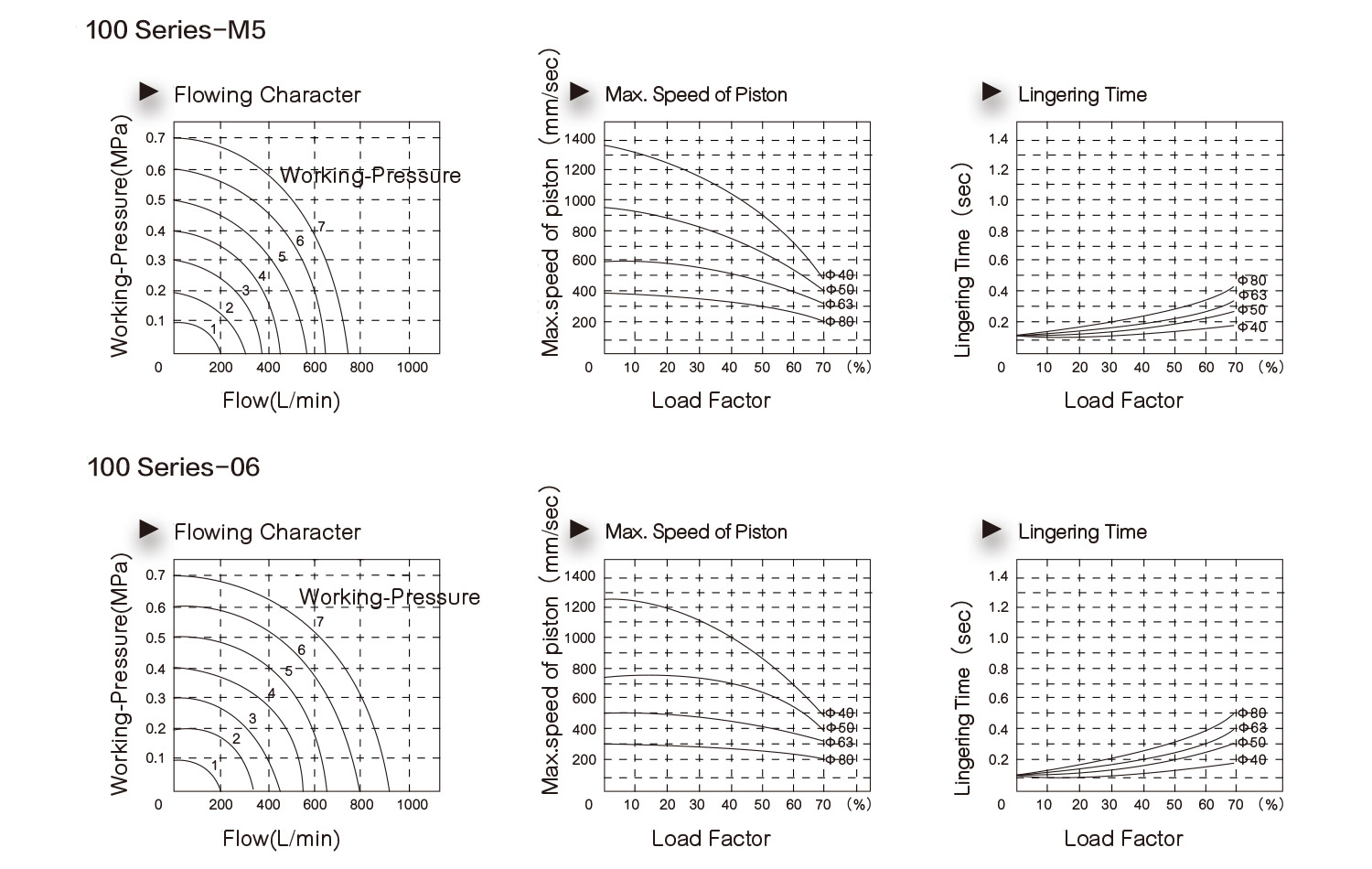

Flowing Character
Test Condition
Pressure
0.5MPa
Tube
PU Pip 6×4 Bore：4mm
Fitting
4V110-M5:PC6-M5
4V110-06:PC6-01
Load Factor
Load Factor=Load/Cylinder Theoretical Output Power × 100%
Cylinder Stroke 300mm
Value Model 4V100 Series

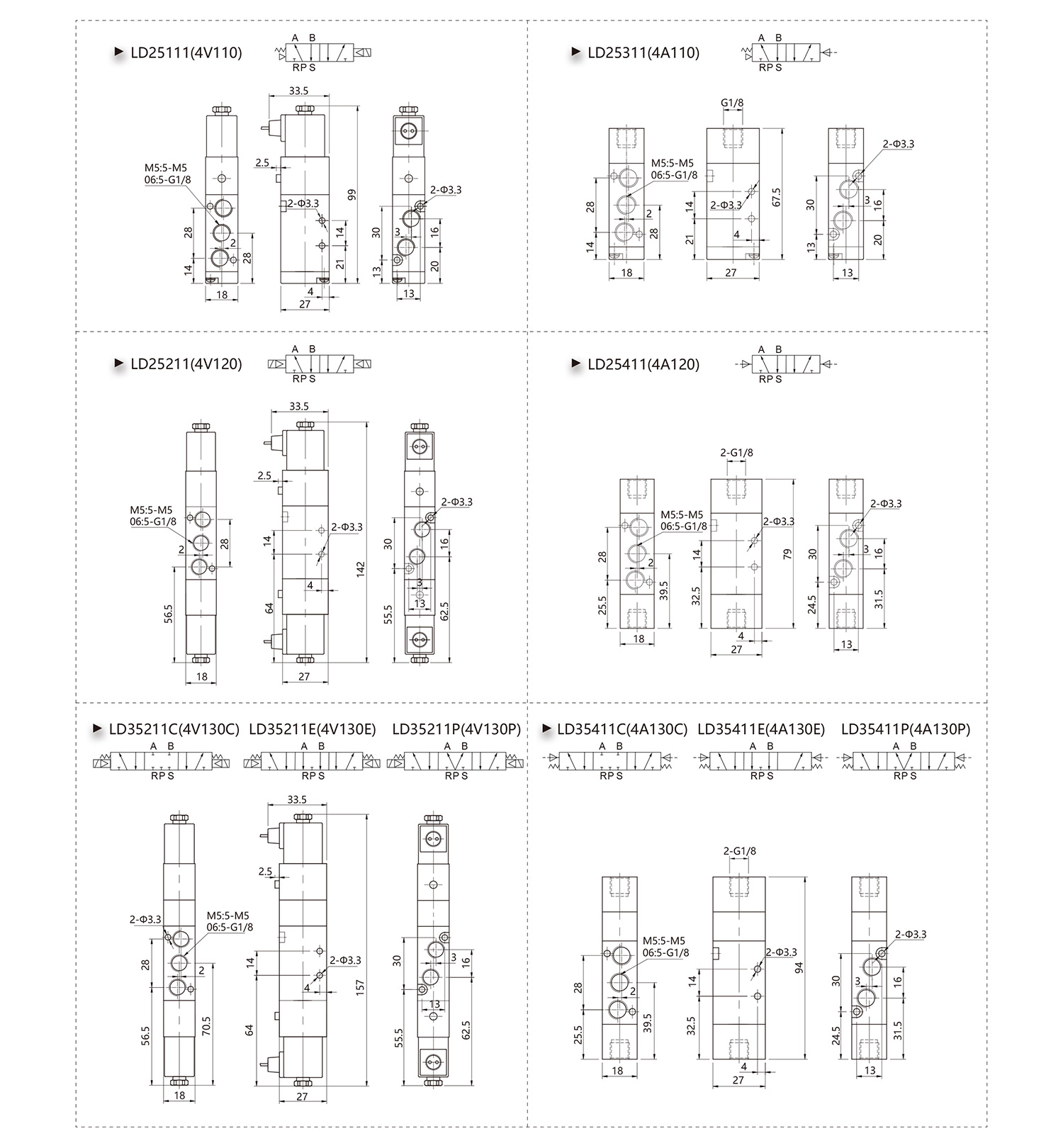

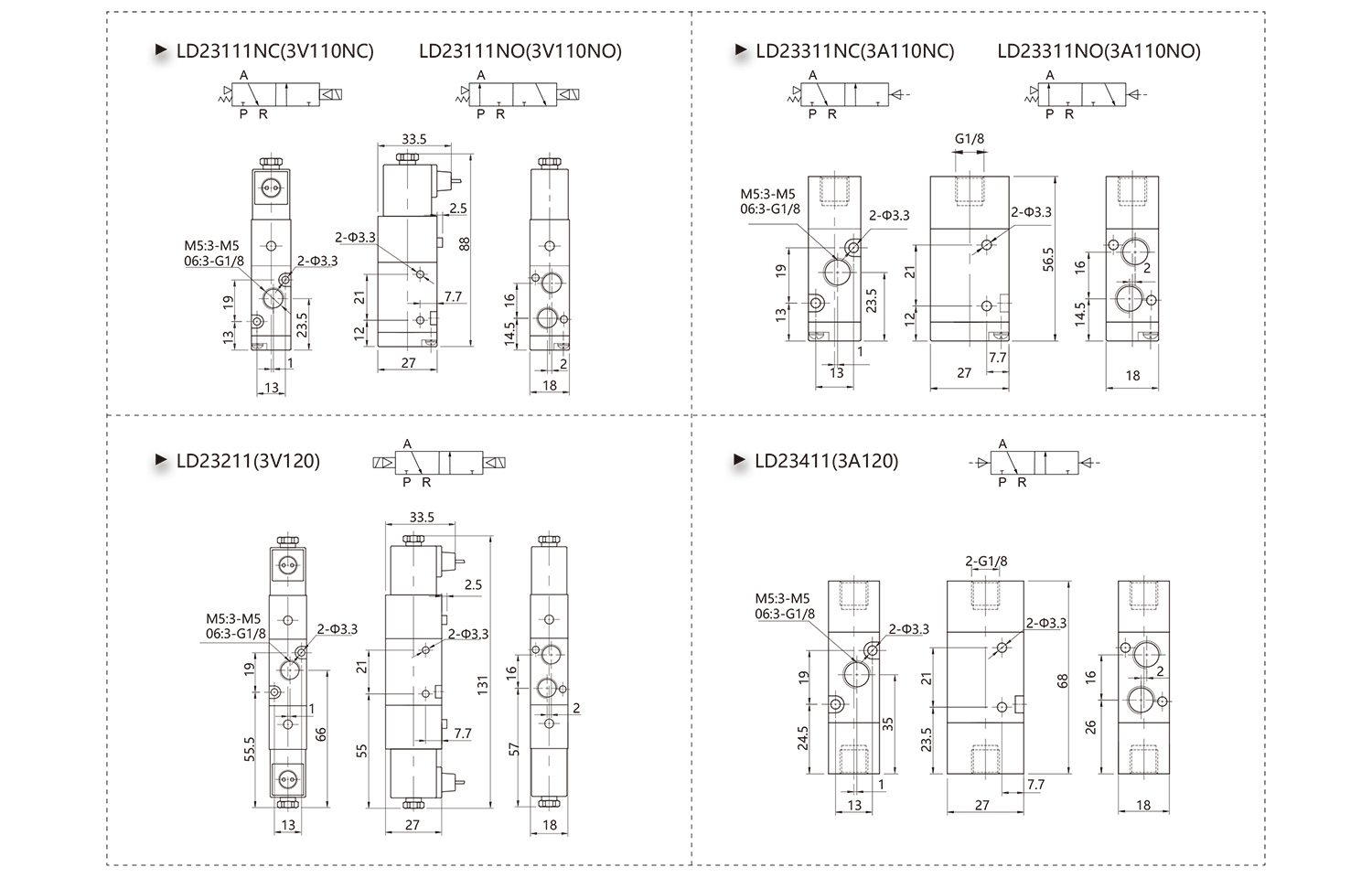

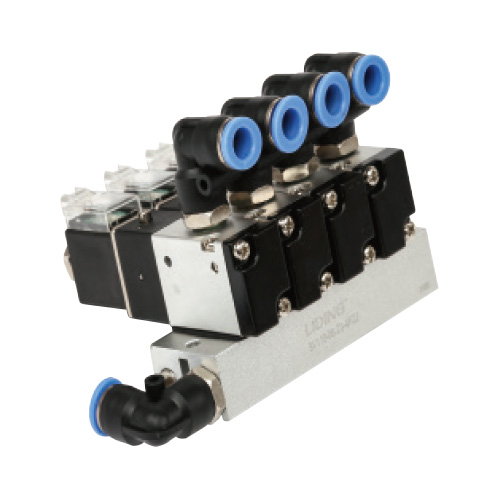

Overall Dimension
Ordering Code
【Note】
1. Model of a single busbar base, for example: 3V200M-4F
2. The valve is replaced with a specific valve model, for example: 3V210-4F
Specification
|
Model/Symbol |
A |
KA |
D |
BA |
BC |
K |
D |
E |
F |
G |
H |
J |
P |
|
3V100M-□F |
19N+19 |
19N+9 |
68 |
56.5 |
22.5 |
4.5 |
31 |
88 |
131 |
7.7 |
18.6 |
27 |
G1/8 |
|
3V200M-□F |
23N+23 |
23N+11 |
83 |
69 |
24.5 |
4.5 |
45 |
112 |
166 |
9.5 |
23.5 |
35 |
G1/4 |
|
3V300M-□F |
28N+26 |
28N+14 |
98 |
81.5 |
32 |
4.5 |
50 |
123.5 |
182 |
12 |
28 |
40 |
G3/8 |
Overall Dimension
Ordering Code
【Note】
1. Single busbar base model, example: 200M-4F
2. The valve is replaced with a specific valve model, for example: 4V210-4F
Specification
|
Model/Symbol |
A |
B |
C |
E |
F |
G |
H |
I |
K |
L |
M |
Q |
R |
S |
W |
X |
Y |
|
100M-□F |
60 |
43 |
20 |
4.3 |
18 |
19 |
5 |
10 |
142 |
(N-1)x19+38 |
157 |
G1/4 |
40 |
30 |
60.5 |
25 |
27 |
|
200M-□F |
60 |
50 |
21 |
4.5 |
22 |
23 |
6 |
12 |
174 |
(N-1)x23+46 |
193 |
G1/4 |
43 |
32 |
91.5 |
25 |
35 |
|
300M-□F |
75 |
60 |
26 |
4.5 |
27 |
28 |
6 |
14.5 |
193 |
(N-1)x28+54 |
213 |
G3/8 |
53 |
48 |
100 |
31 |
40 |
|
400M-□F |
100 |
95 |
32 |
5.5 |
34 |
35 |
7 |
18 |
244 |
(N-1)x35+63 |
244 |
G1/2 |
68 |
67 |
113 |
42 |
50 |
Overall Dimension
