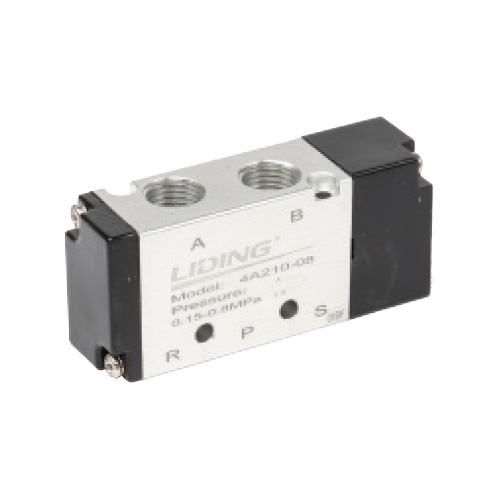

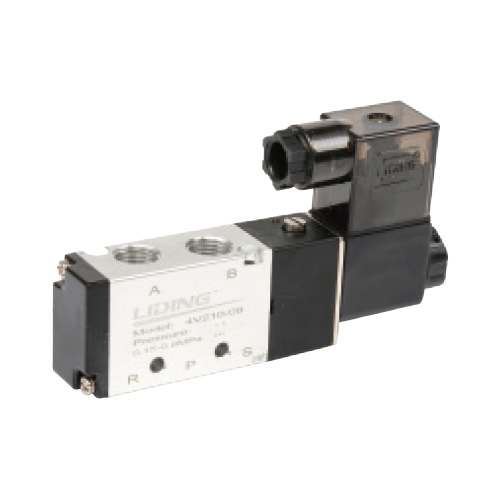

3V/4V 200 Series Solenoid Valve，Pneumatic Control Valve、Base
Product Details

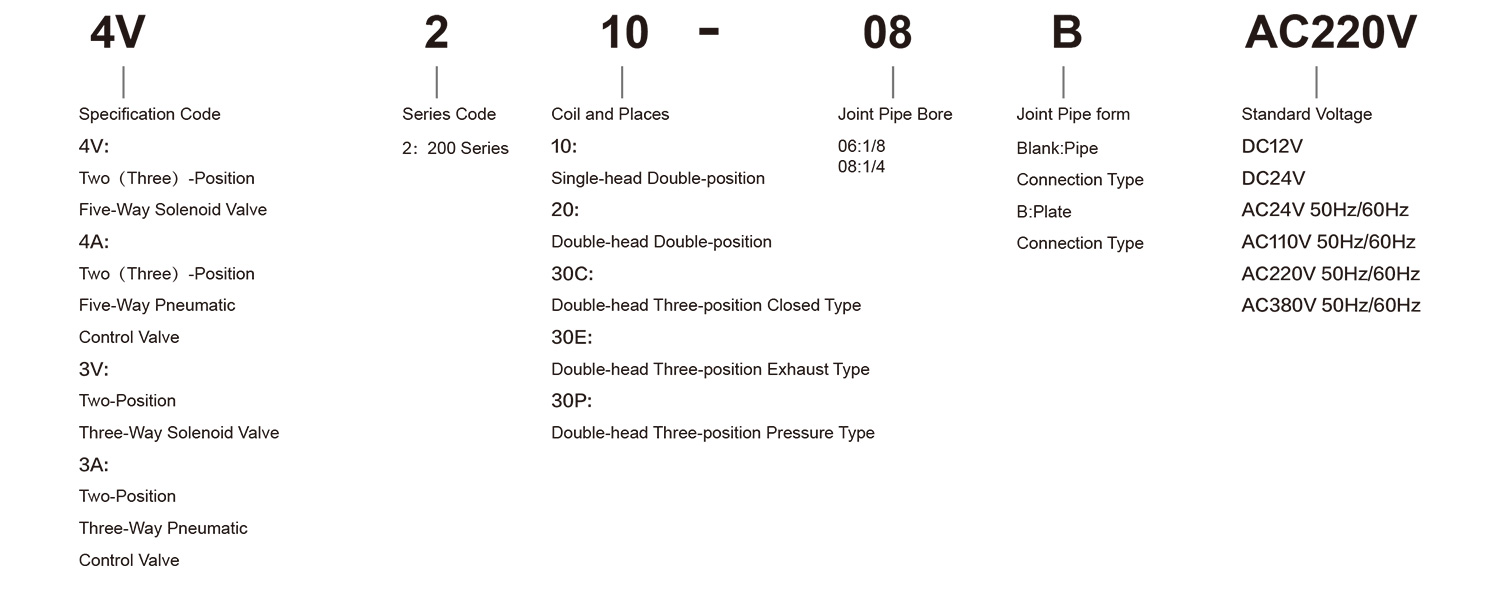

Ordering Code
Specification
|
Model |
3V210-06 |
3V220-06 | 3V210-08 | 3V220-08 | 4V210-06 | 4V220-06 | 4V230C-06 | 4V230E-06 | 4V230P-06 | 4V210-08 | 4V220-08 | 4V230C-08 | 4V230E-08 | 4V230P-08 |
|
3A210-06 |
3A220-06 | 3A210-08 | 3A220-08 | 4A210-06 | 4A220-06 | 4A230C-06 | 4A230E-06 | 4A230P-06 | 4A210-08 | 4A220-08 | 4A230C-08 | 4A230E-08 | 4A230P-08 | |
|
Working Medium |
40 Micron Filtered Air |
|||||||||||||
|
Motion Pattern |
Inner Guide Type |
|||||||||||||
|
Joint Pipe Bore |
Intake = Outlet=G1/8 |
Intake = Outlet=G1/4 | Intake = Outlet = Exhaust =G1/8 |
Intake = Outlet = Exhaust = G1 / 4 Exhaust = G1 / 8 |
||||||||||
|
The Position Counting |
Two-position Three-way |
Two-position Five-way | Three-position Five-way | Two-position Five-way |
Three-position Five-way |
|||||||||
|
Operating Temperature |
5~50℃ (41-122° F) |
|||||||||||||
|
Effectjve Sectional Area |
14mm²(Cv=0.78) |
16mm²(Cv=0.89) | 5.5mm²(Cv=0.31) | 5mm² (Cv=0.28) | 12mm²(Cv=0.67) |
9mm²(Cv=0.5) |
||||||||
|
Working-Pressure |
0.15~0.8MPa |
|||||||||||||
|
MaxPressure Resistance |
1.2MPa |
|||||||||||||
|
Power Consumption |
AC:5.5 VA DC：4.8W |
|||||||||||||
|
Protection Class |
IP65 (DIN40050) |
|||||||||||||
|
Insulation |
Class F |
|||||||||||||
|
Wiring Form |
Lead Wire or Connector Type |
|||||||||||||
|
Voltage Range |
±10% |
|||||||||||||
|
Highest Action Frepuency |
5 Cycle/Sec |
3 Cycle/Sec | 5 Cycle/Sec |
3 Cycle/Sec |
||||||||||
|
Shortest Excitation Time |
0.05 秒 /0.05 Second |
|||||||||||||
Flowing Character
Test Condition
Pressure
0.5MPa
Tube
PU Pip）8×6 Bore：6mm
Fitting
4V210-06:PC8-01
4V210-08:PC8-02
Load Factor
Load Factor= Load/Cylinder Theoretical Output Power×100%
Cylinder Stroke
300mm
Value Model
4V200 Series
Overall Dimension
Ordering Code
【Note】
1. Model of a single busbar base, for example: 3V200M-4F
2. The valve is replaced with a specific valve model, for example: 3V210-4F
Specification
|
Model/Symbol |
A |
KA |
D |
BA |
BC |
K |
D |
E |
F |
G |
H |
J |
P |
|
3V100M-□F |
19N+19 |
19N+9 |
68 |
56.5 |
22.5 |
4.5 |
31 |
88 |
131 |
7.7 |
18.6 |
27 |
G1/8 |
|
3V200M-□F |
23N+23 |
23N+11 |
83 |
69 |
24.5 |
4.5 |
45 |
112 |
166 |
9.5 |
23.5 |
35 |
G1/4 |
|
3V300M-□F |
28N+26 |
28N+14 |
98 |
81.5 |
32 |
4.5 |
50 |
123.5 |
182 |
12 |
28 |
40 |
G3/8 |
Overall Dimension
Ordering Code
【Note】
1. Single busbar base model, example: 200M-4F
2. The valve is replaced with a specific valve model, for example: 4V210-4F
Specification
|
Model/Symbol |
A |
B |
C |
E |
F |
G |
H |
I |
K |
L |
M |
Q |
R |
S |
W |
X |
Y |
|
100M-□F |
60 |
43 |
20 |
4.3 |
18 |
19 |
5 |
10 |
142 |
(N-1)x19+38 |
157 |
G1/4 |
40 |
30 |
60.5 |
25 |
27 |
|
200M-□F |
60 |
50 |
21 |
4.5 |
22 |
23 |
6 |
12 |
174 |
(N-1)x23+46 |
193 |
G1/4 |
43 |
32 |
91.5 |
25 |
35 |
|
300M-□F |
75 |
60 |
26 |
4.5 |
27 |
28 |
6 |
14.5 |
193 |
(N-1)x28+54 |
213 |
G3/8 |
53 |
48 |
100 |
31 |
40 |
|
400M-□F |
100 |
95 |
32 |
5.5 |
34 |
35 |
7 |
18 |
244 |
(N-1)x35+63 |
244 |
G1/2 |
68 |
67 |
113 |
42 |
50 |
Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China 3V/4V 200 Series Solenoid Valve，Pneumatic Control Valve、Base Suppliers and 3V/4V 200 Series Solenoid Valve，Pneumatic Control Valve、Base company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our 3V/4V 200 Series Solenoid Valve，Pneumatic Control Valve、Base are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
