Hand-Pull Valve

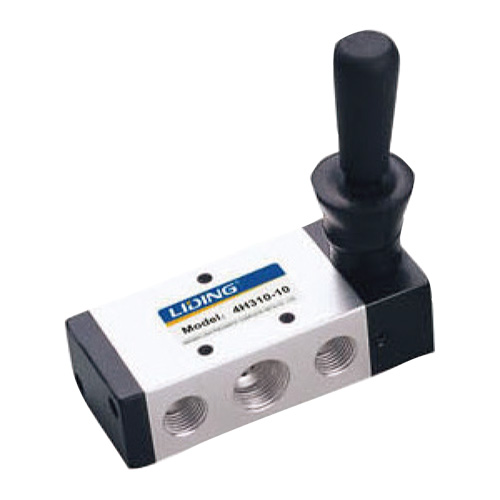

Product Details

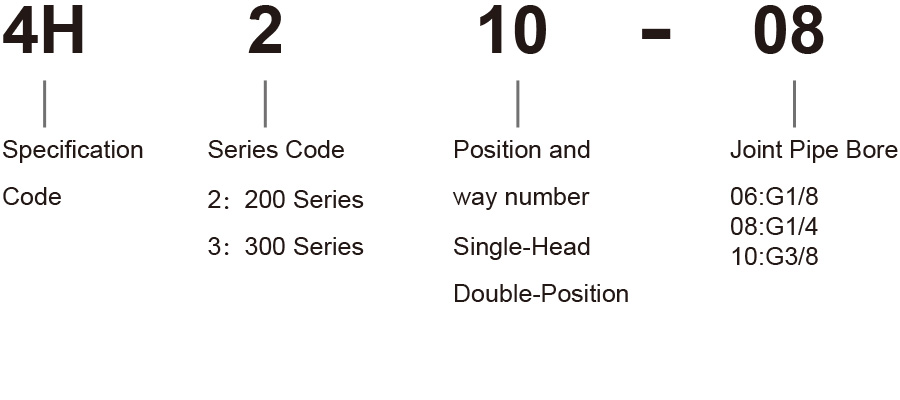

Ordering Code

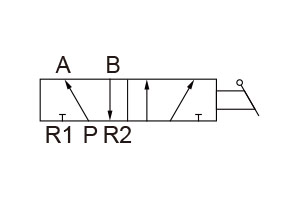

Graphic Symbol
Specification
| Model | 4H210-06 | 4H210-08 | 4H310-08 | 4H310-10 |
| Working Medium | 40 Micron Filtered Air | |||
| Motion Pattern | Direct Drive Type | |||
| Joint Pipe Bore | Air lnlet=Air Outlet=Exhaust=G1/8 | Air lnlet=Air Outlet =G1 /4Exhaust=G1 /8 | Air lnlet=Air Outlet=Exhaust=G1/4 | Air lnlet=Air Outlet =G3/8Exhaust=G1 /4 |
| Operating Temperature | 0~60℃ | |||
| Effective Sectional Area | 14mm² (Cv=0.78) | 16mm² (Cv=0.89) | 25mm² (Cv=1.39) | 30mm² (Cv=1.67) |
| Working-Pressure | 0~0.8MPa | |||

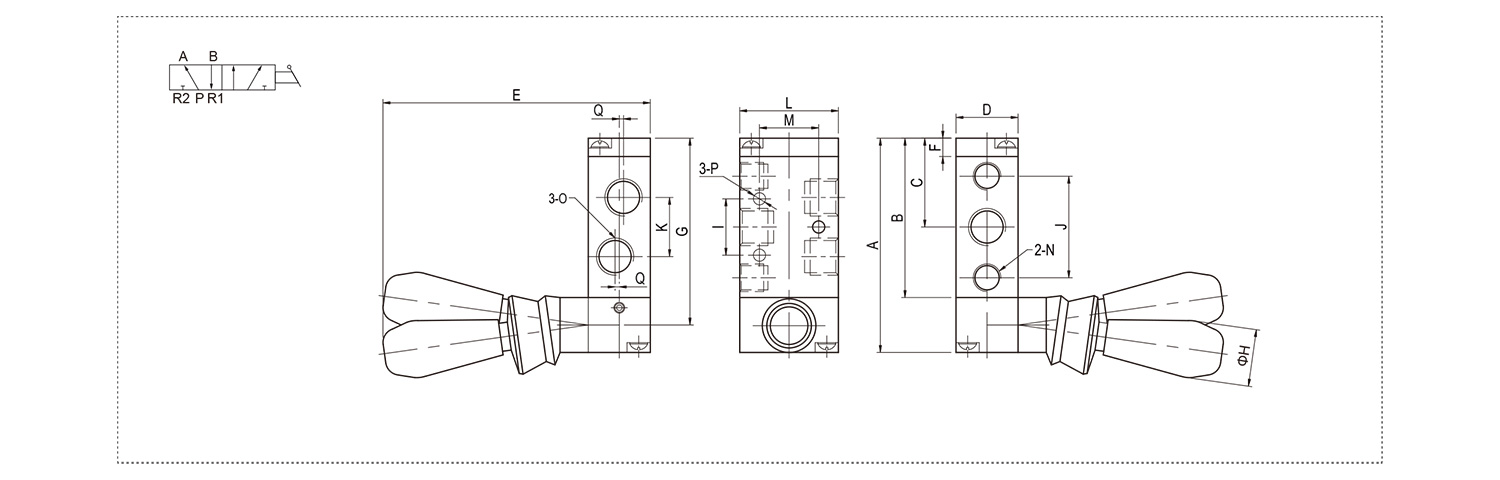

Overall Dimension
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
| 4H210-06 | 76.7 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 19 | 20 | 36 | 18 | 35 | 23.5 | G1/8 | G1/8 | 4.3 | － |
| 4H210-08 | 76.7 | 56.5 | 31.5 | 22 | 95 | 6.5 | 66.5 | 19 | 20 | 36 | 21 | 35 | 23.5 | G1/8 | G1/4 | 4.3 | 1.5 |
| 4H310-08 | 92.5 | 72.5 | 40 | 27 | 100 | 7.5 | 82.5 | 19 | 24 | 40 | 22 | 40 | 27.5 | G1/4 | G1/4 | 4.3 | - |
| 4H310-10 | 92.5 | 72.5 | 40 | 27 | 100 | 7.5 | 82.5 | 19 | 24 | 40 | 24 | 40 | 27.5 | G1/4 | G3/8 | 4.3 | 2 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Hand-Pull Valve Suppliers and Hand-Pull Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Hand-Pull Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
