HBFD Posterior Valve Island Suppliers

HBFD Posterior Valve Island

HBFD Posterior Valve Island

Product Details

0
Views: 789

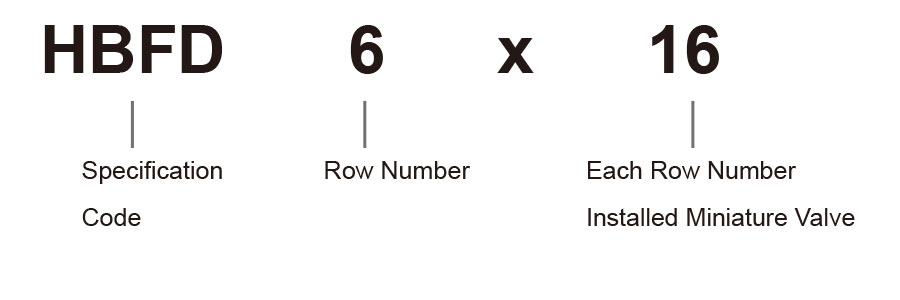

Ordering Code







Specification



Model HBFD6x16/HBFD7x14/HBFD8x16
Working Medium 40 Micron Filtered Air
Joint Pipe Bore G1/4
Adjusting Pressure Range 0~0.7MPa
Max. Adjustable Pressure 1 MPa
Ensure Pressure Resistance 1.5MPa
Operating Temperature Range -10~60℃

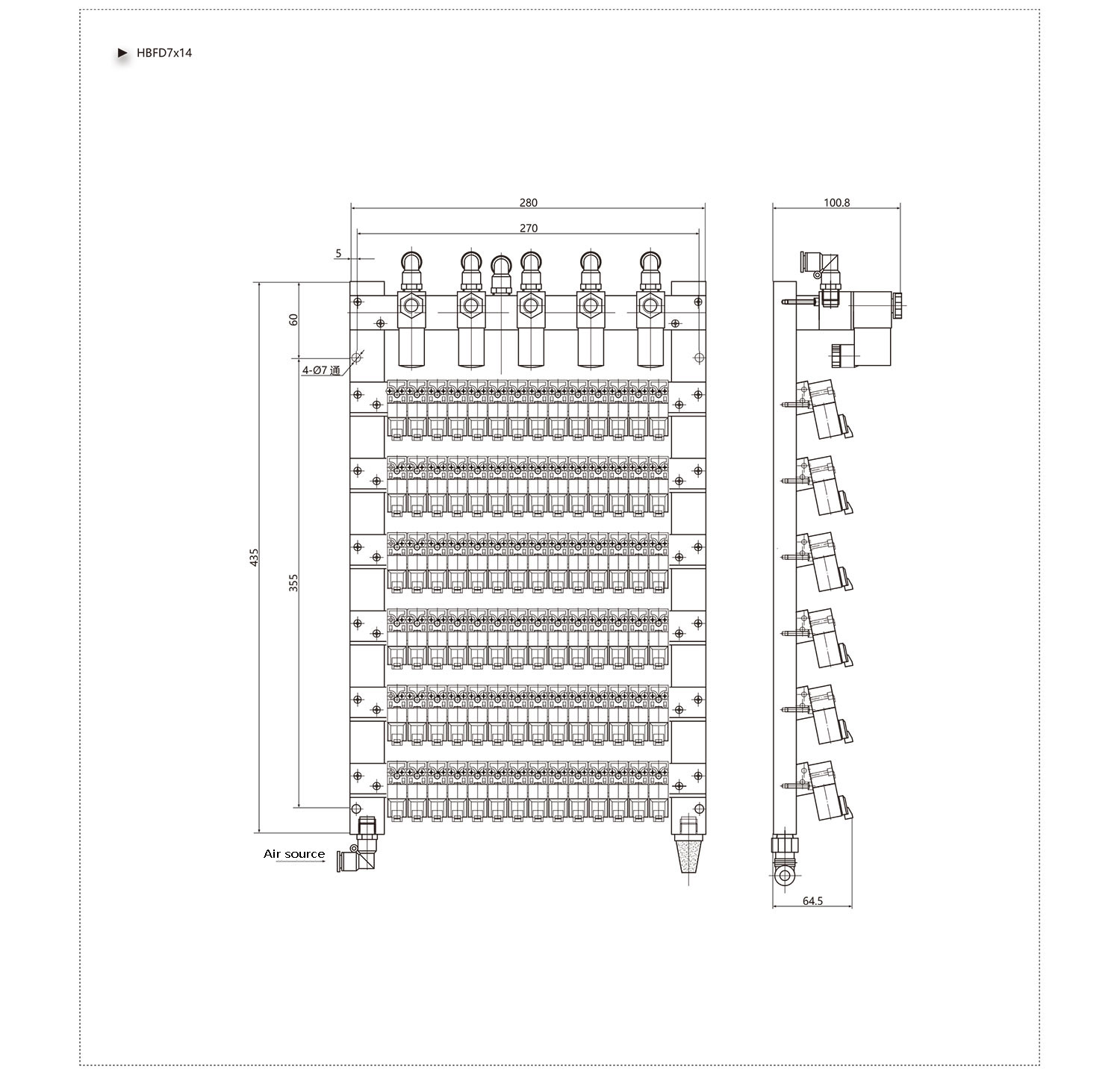

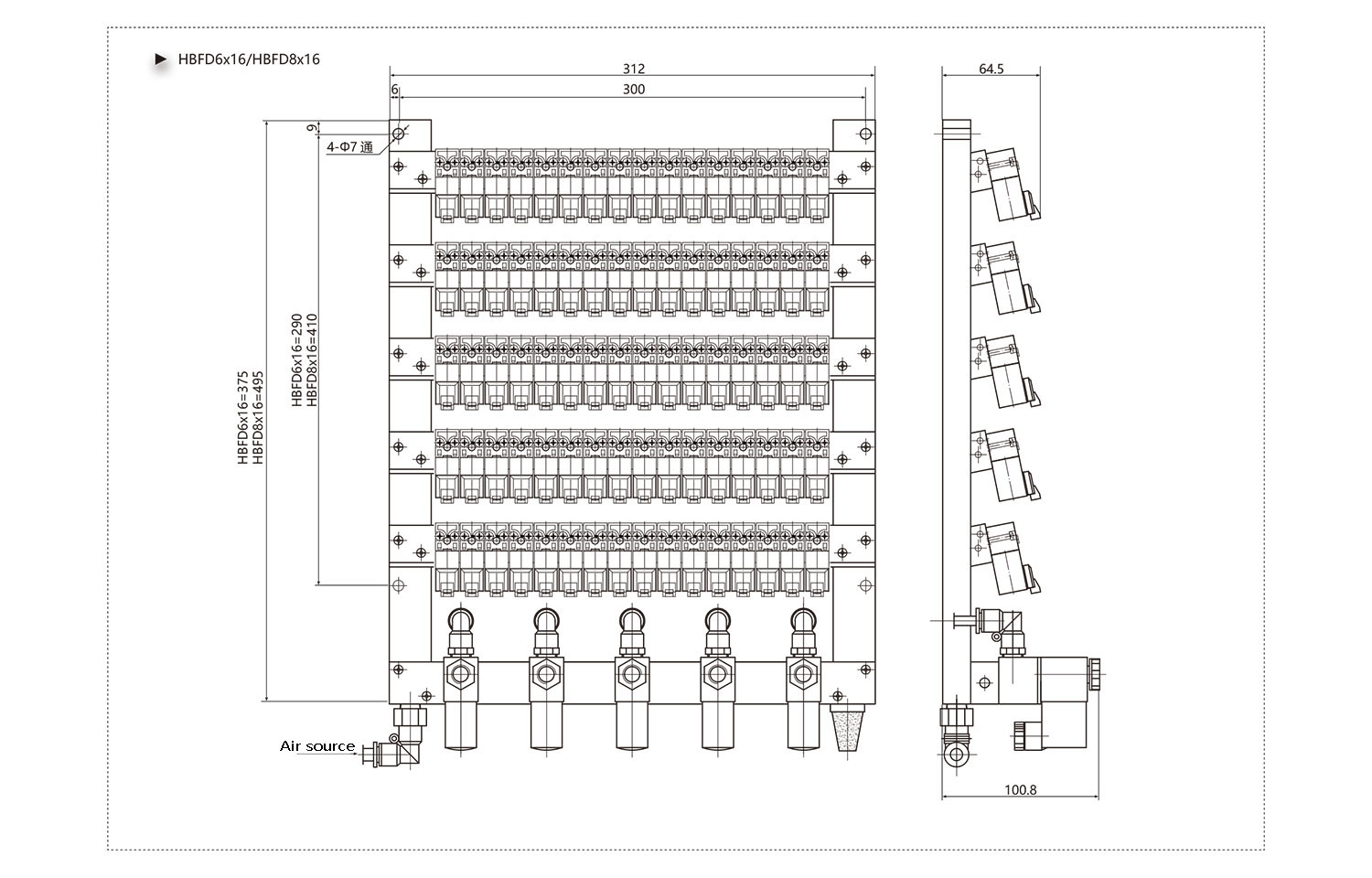

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China HBFD Posterior Valve Island Suppliers and HBFD Posterior Valve Island company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our HBFD Posterior Valve Island are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
