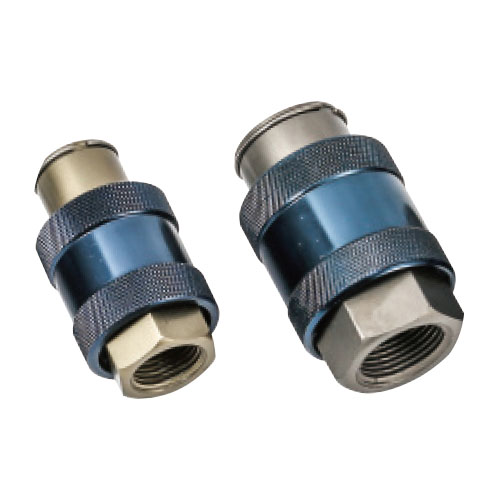

HSV Series Slide Valve
Product Details

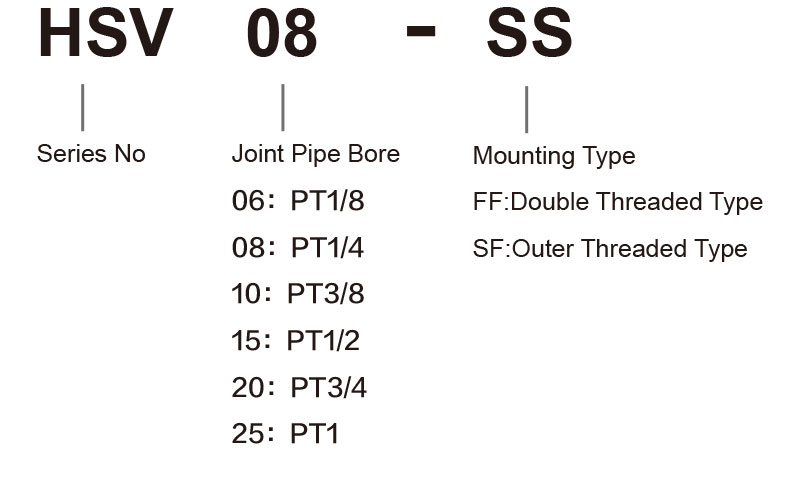

Ordering Code

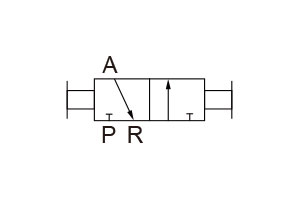

Graphic Symbol
Specification
| Model | HSV06 | HSV08 | HSV10 | HSV15 | HSV20 | HSV25 |
| Working Medium | 40 Micron Filtered Air | |||||
| Joint Pipe Bore Code | 6 | 8 | 10 | 15 | 20 | 25 |
| Joint Pipe Bore | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Effective Sectional Area | 23mm²(1.28) | 40mm²(2.2) | 62mm²(3.5) | 140mm²(7.8) | 250mm²(13.8) | 392mm²(21.78) |
| Operating Temperature | -5～60℃ | |||||
| Working-Pressure | 0～10Kgf/cm² | |||||
| Max.Pressure Resistance | 15Kgf/cm² | |||||
Overall Dimension

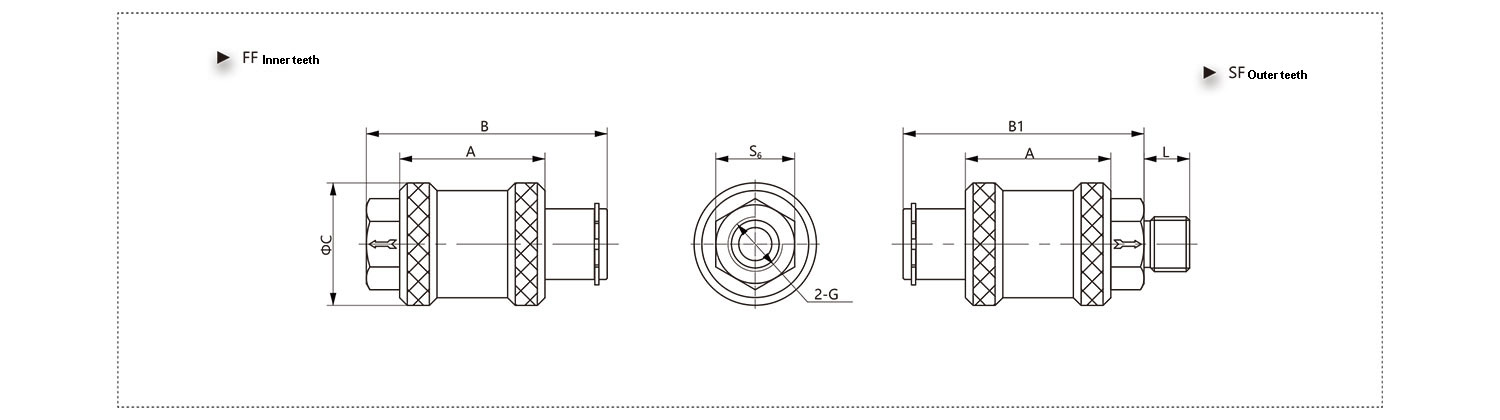

Dimension Sheet
| Model | A | B | B1 | C | S6 | G | L(FF) |
| HSV-06 | 20 | 30 | 30 | 20 | 14 | G1/8 | 8 |
| HSV-08 | 32 | 48 | 48 | 27 | 19 | G1/4 | 10 |
| HSV-10 | 32 | 48 | 48 | 30 | 22 | G3/8 | 10 |
| HSV-15 | 40 | 70 | 65 | 38 | 27 | G1/2 | 15 |
| HSV-20 | 45 | 75 | 68 | 45 | 34 | G3/4 | 16 |
| HSV-25 | 45 | 75 | 68 | 60 | 38 | G1 | 16 |
