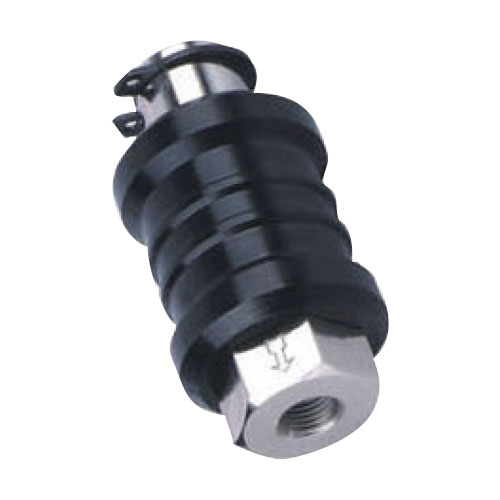

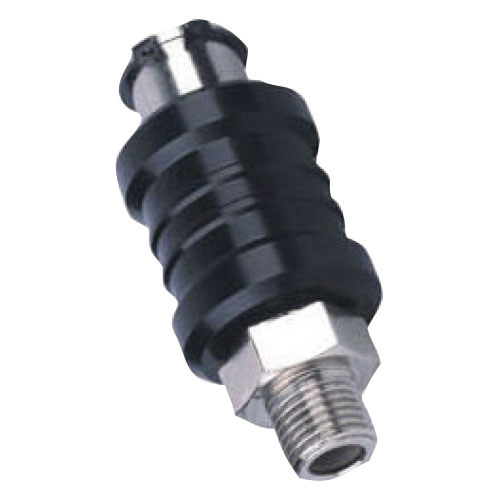

KHSV Series Slide Valve
Product Details

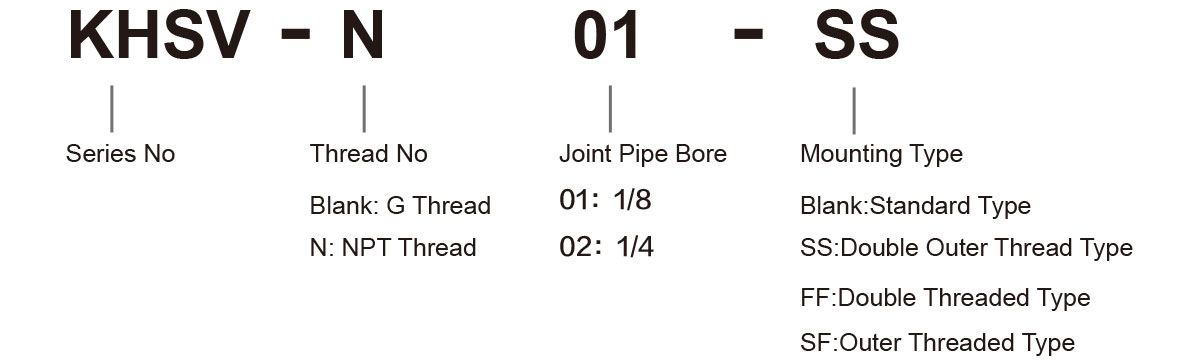

Ordering Code

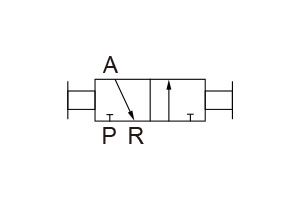

Graphic Symbol
Specification
Model | KHSV-01 | KHSV-N01 | KHSV-02 | KHSV-N02 |
Working Medium | 40 Micron Filtered Air | |||
Joint Pipe Bore Code | 01 | N01 | 02 | N02 |
Joint Pipe Bore | G1/8 | NPT1/8 | G1/4 | NPT1/4 |
Effective Sectional Area | 23mm²(1.28) | 40mm²(2.2) | ||
Operating Temperature | -5~60℃ | |||
Working-Pressure | 0~10Kgf/cm² | |||
Max.Pressure Resistance | 15Kgf/cm² |

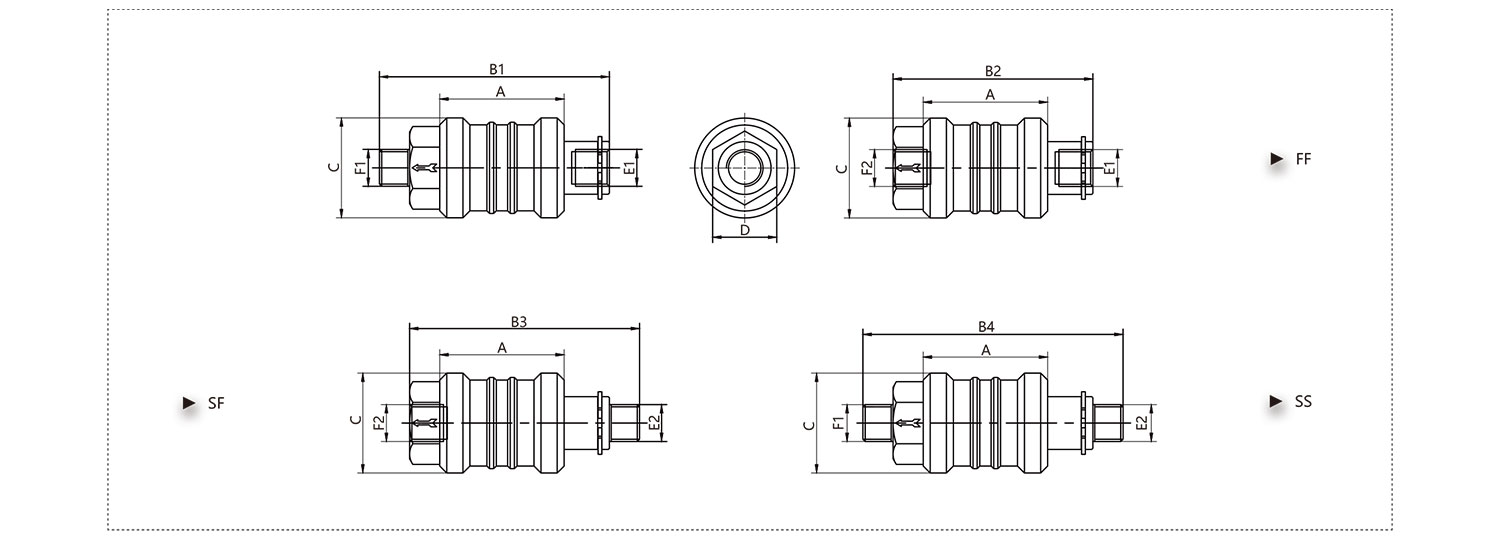

Overall Dimension
Dimension Sheet
Model |
A |
B1 |
B2 |
B3 |
B4 |
C |
D |
E1 |
E2 |
F1 |
F2 |
KHSV-01 |
33 |
61 |
53 |
61 |
69 |
26.5 |
17 |
G1/8 |
G1/8 |
G1/8 |
G1/8 |
KHSV-02 |
35 |
69 |
58 |
69 |
80 |
29.5 |
19 |
G1/4 |
G1/4 |
G1/4 |
G1/4 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China KHSV Series Slide Valve Suppliers and KHSV Series Slide Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our KHSV Series Slide Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
