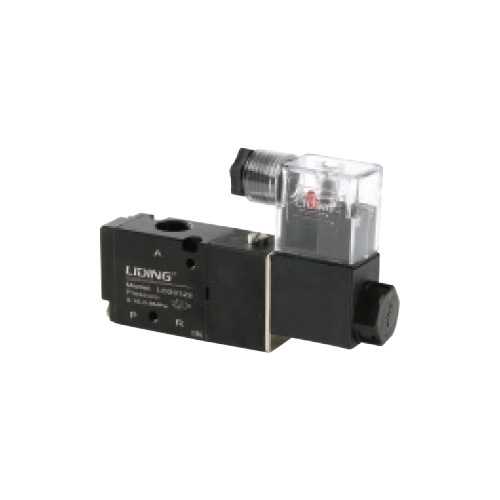

LD2 Series pneumatic air control solenoid valve
Product Details
LD2 Series pneumatic air control solenoid valve
The advantage of LD valves:
LD series adopt imported seal.
LD valve shaft is HARD ANODIZING Processed.
LD coil have over loading protecting.
LD working life is 15,000,000 times.
LD seals are non-oil lubricating seals, no lubricant, no pollution.

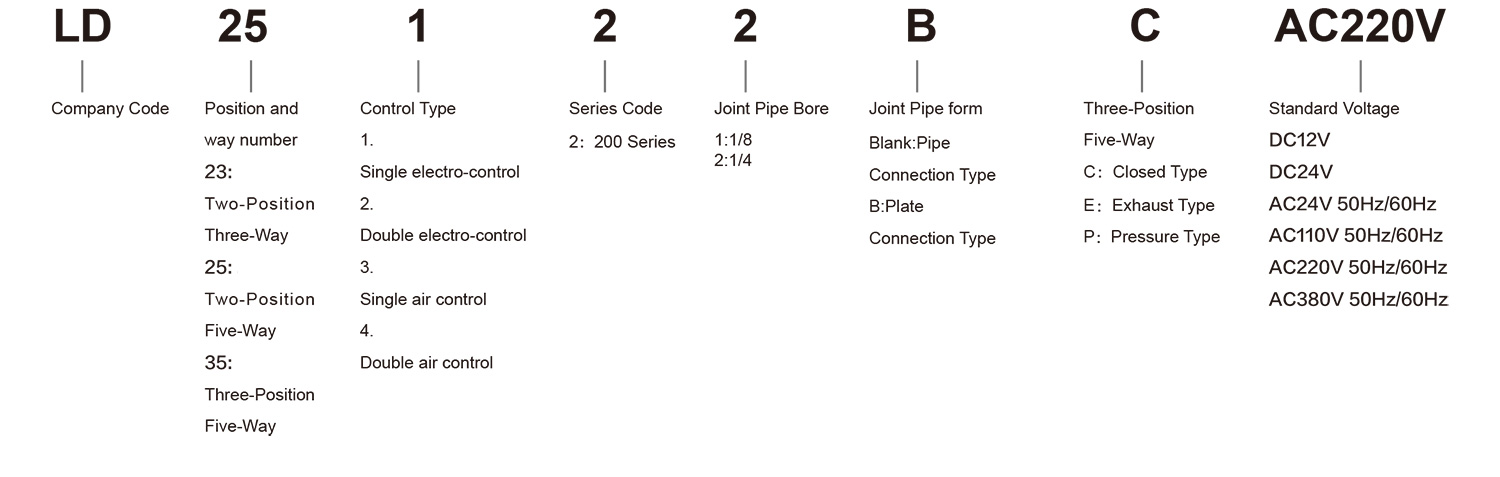

Ordering Code
Specification
|
Model |
LD23121 |
LD23221 | LD23122 | LD23222 |
LD25121 |
LD25221 | LD35221C | LD35221E | LD35221P | LD25122 | LD25222 | LD35222C | LD35222E | LD35222P |
| LD23321 | LD23421 | LD23322 | LD23422 | LD25321 | LD25421 | LD35421C | LD35421E | LD35421P | LD25322 | LD25422 | LD35422C | LD35422E | LD35422P | |
|
Working Medium |
40 Micron Filtered Air |
|||||||||||||
|
Motion Pattern |
Inner Guide Type |
|||||||||||||
|
Joint Pipe Bore |
Intake = Outlet =G1/8 |
Intake = Outlet =G1/4 |
Intake = Outlet = Exhaust =G1/8 |
Intake = Outlet = Exhaust = G1 / 4 Exhaust = G1 / 8 | ||||||||||
|
The Position Counting |
Two-position Three-way |
Two-position Five-way |
Three-position Five-way | Two-position Five-way | Three-position Five-way | |||||||||
|
Operating Temperature |
5~50℃ (41-122° F) |
|||||||||||||
|
Effective Sectional Area |
14mm²(Cv=0.78) |
16mm²(Cv=0.89) |
5.5mm²(Cv=0.31) |
5mm²(Cv=0.28) | 12mm²(Cv=0.67) | 9mm²(Cv=0.5) | ||||||||
|
Working-Pressure |
0.15~0.8MPa |
|||||||||||||
|
Max.Pressure Resistance |
1.2MPa |
|||||||||||||
|
Power Consumption |
AC：3VA DC:3.7W |
|||||||||||||
|
Protection Class |
IP65 (DIN40050) |
|||||||||||||
|
Insulation |
Class F |
|||||||||||||
|
Wiring Form |
Lead Wire or Connector Type |
|||||||||||||
|
Voltage Range |
±10% |
|||||||||||||
|
Highest Action Frepuency |
5 Cycle/Sec |
3 Cycle/Sec | 5 Cycle/Sec | 3 Cycle/Sec | ||||||||||
|
Shortest Excitation Time |
0.05 Second |
|||||||||||||

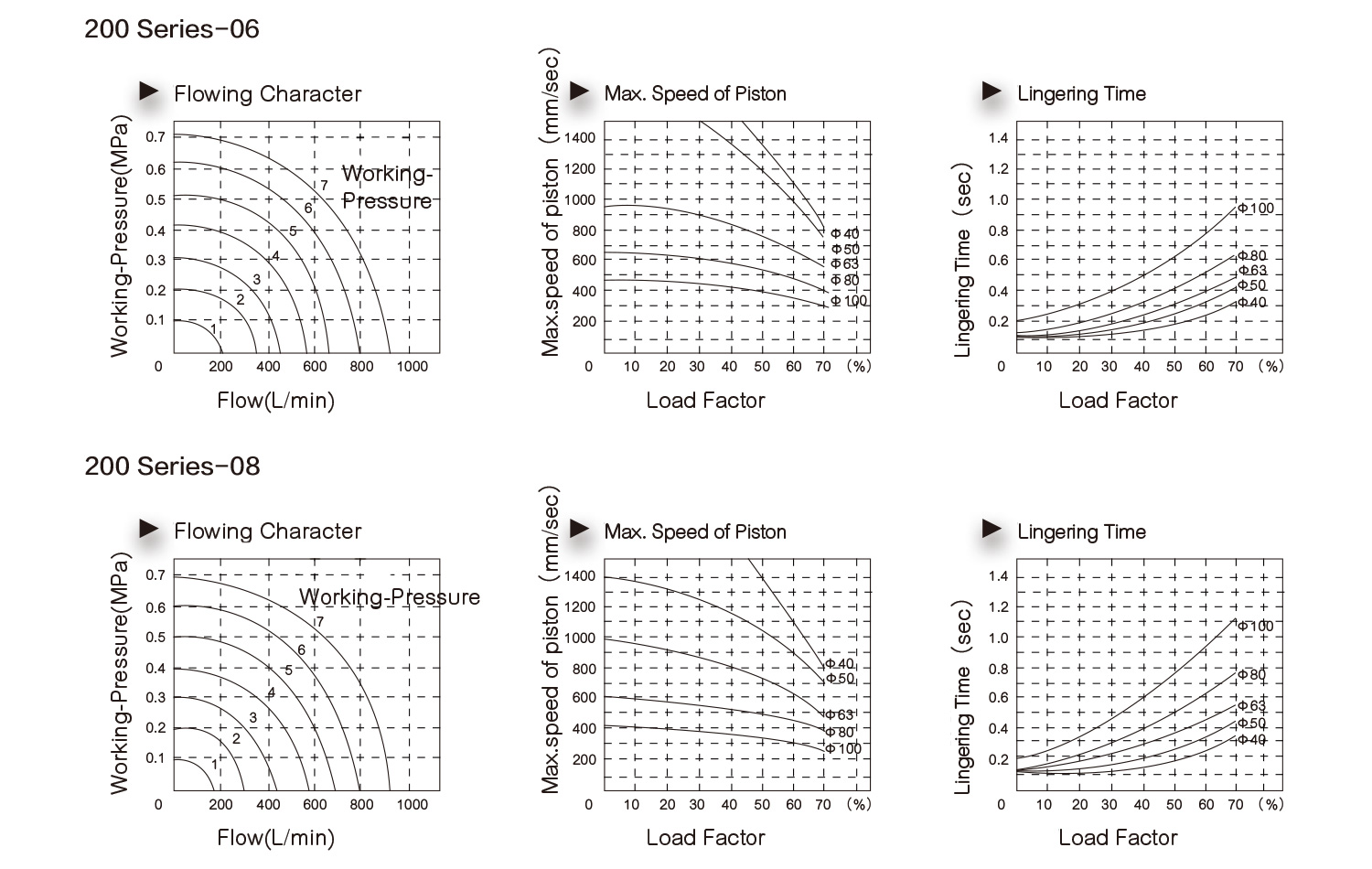

Flowing Character
Test Condition
Pressure
0.5MPa
Tube
PU Pip）8×6 Bore：6mm
Fitting
4V210-06:PC8-01
4V210-08:PC8-02
Load Factor
Load Factor= Load/Cylinder Theoretical Output Power×100%
Cylinder Stroke
300mm
Value Model
4V200 Series

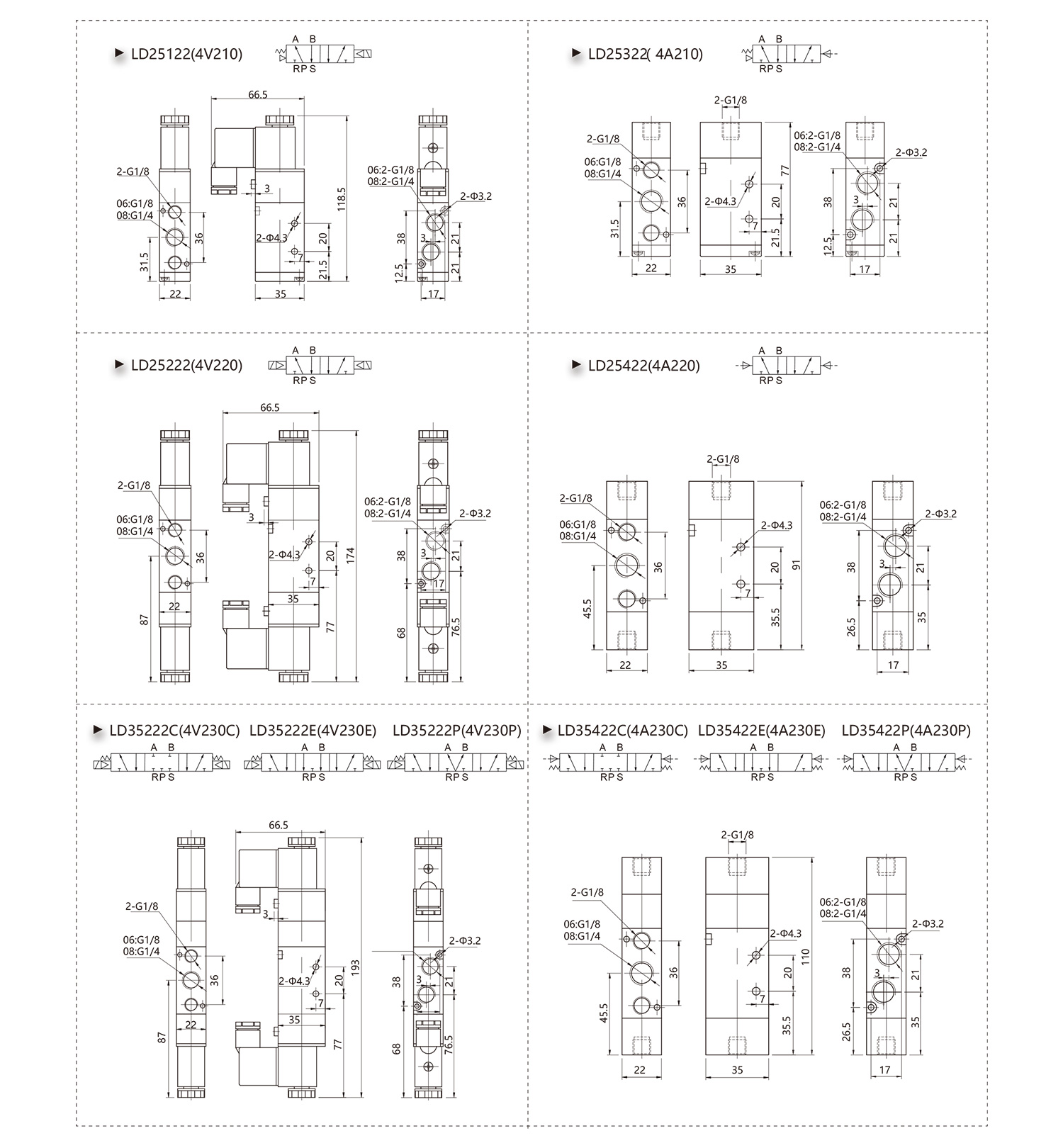

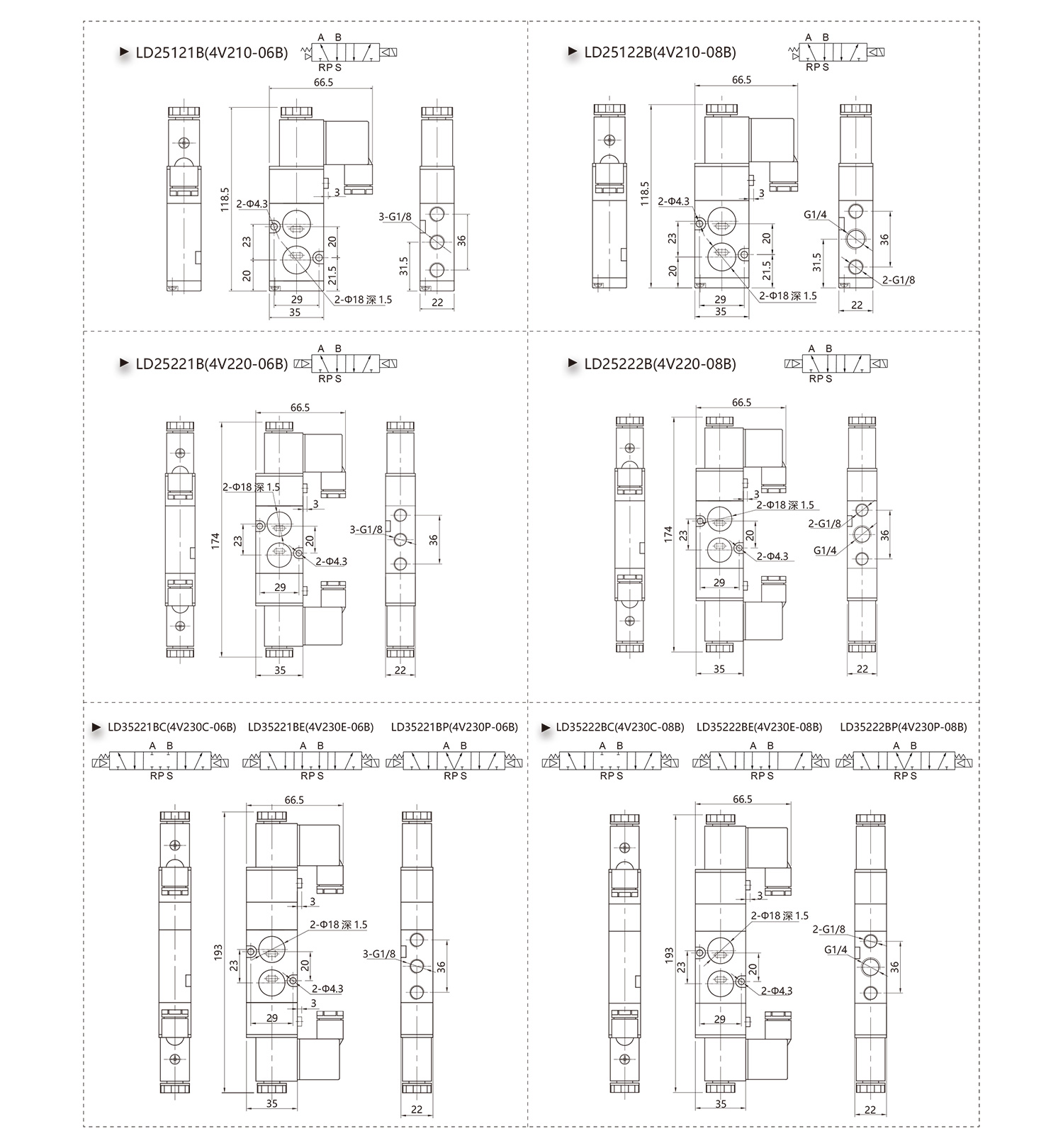

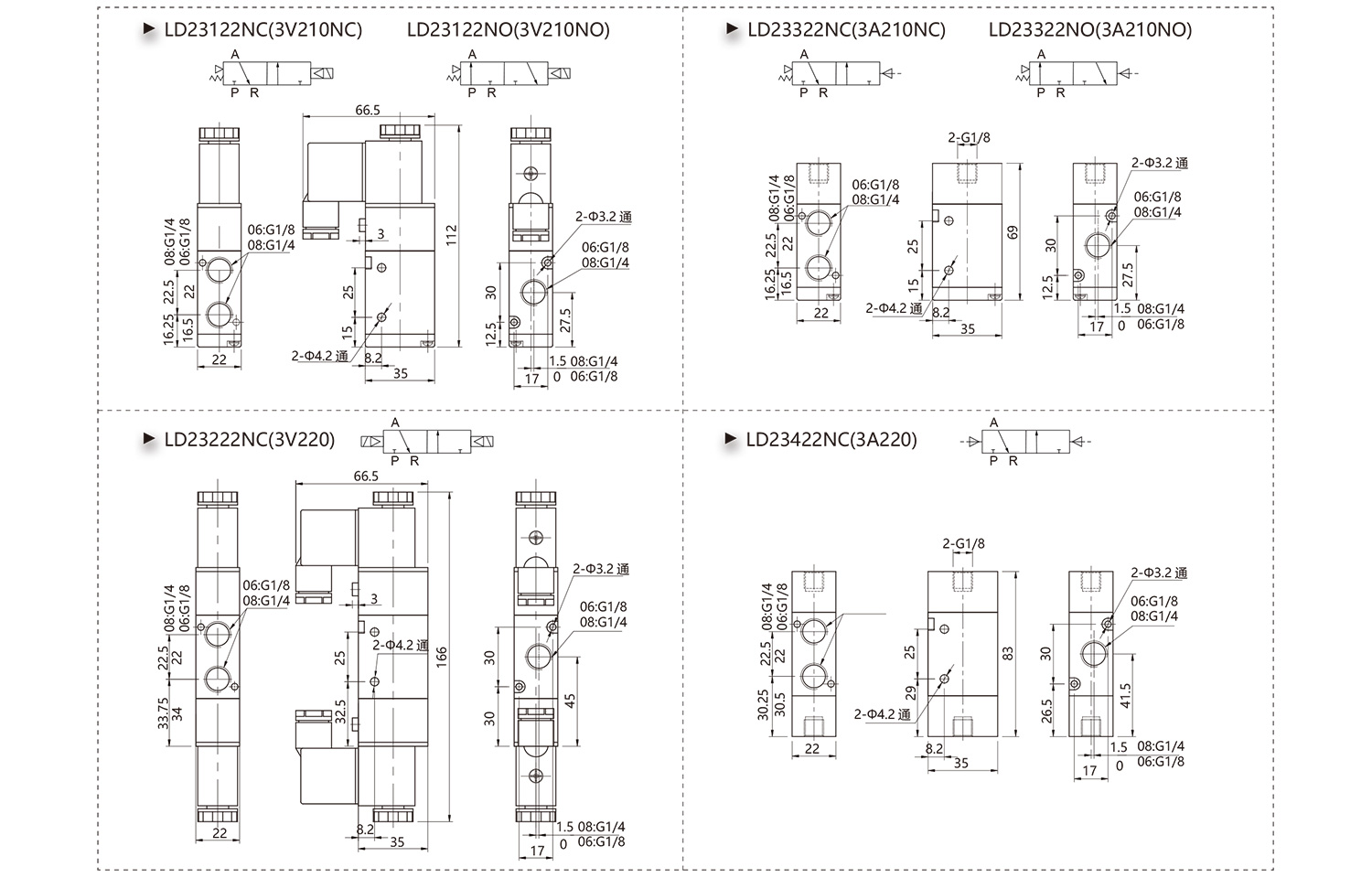

Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China LD2 Series pneumatic air control solenoid valve Suppliers and LD2 Series pneumatic air control solenoid valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our LD2 Series pneumatic air control solenoid valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
