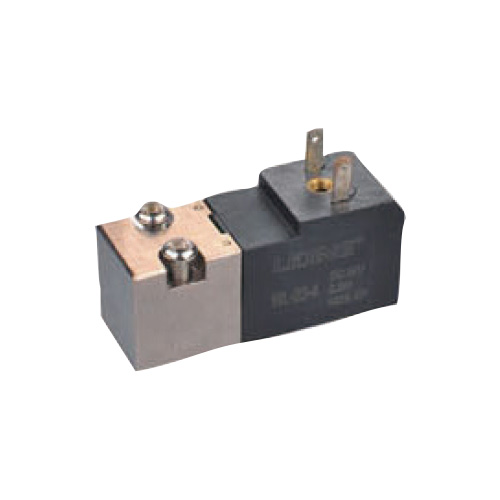

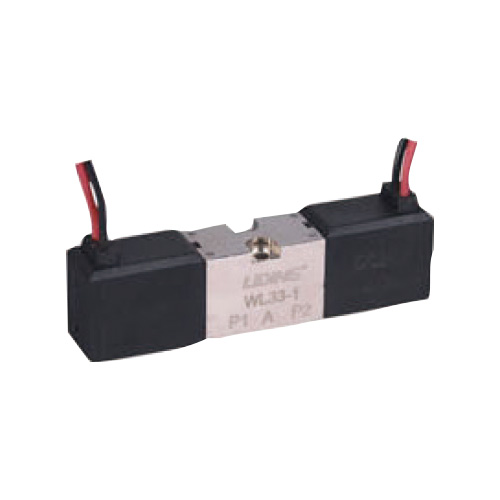

WL Series Ink Dedicated Miniature Solenoid Valve
Product Details

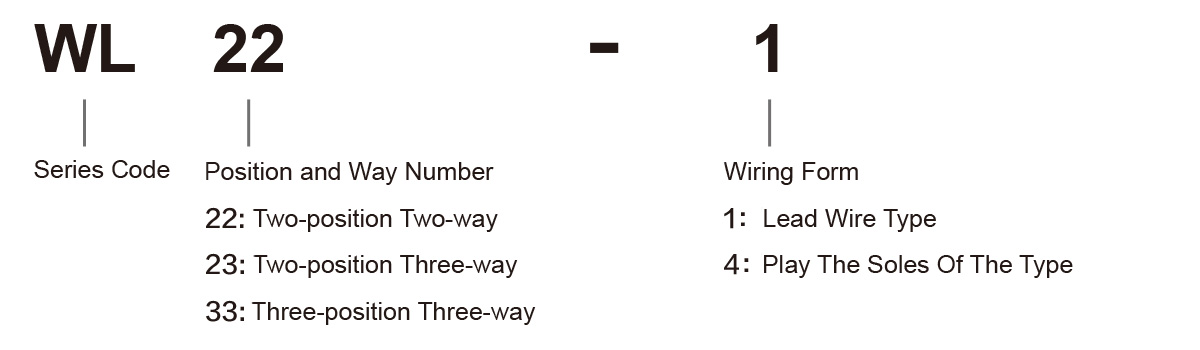

Ordering Code
Synopsis
The valve is a new product designed by our company. It is a direct-acting solenoid valve. Its plastic parts, seals and ink contacts are made of special inkresistant materials. It is refined by advanced technology. It has a concise appearance, beautiful appearance, sensitive switch, good stability, large flow rate, long service life. It is widely used in special inks such as textiles in the field.
Specification
| Model | WL22-1 | WL23-4 | WL33-1 |
| Working Medium | Ink | ||
| Operating Temperature | -5～50℃ | ||
| Nominal Diameter | Ø0.8mm | ||
| Medium Temperature | 5～50℃ | ||
| 0.5MPa Flow Rate | ≥25L/min | ||
| Min. Operating Frequency | Cycle/Day | ||
| Lubrication | Not Lubrication | ||
| Working-Pressure | 0～0.5MPa | ||
| Voltage Range | DC24V | ||
| Allowable Voltage | ±10% | ||
| Power | 4W±0.2W | ||
| Electrical Entry | Lead Wire Type、Play The Soles Of The Type | ||
| Connection Mode | Plate Connection Type | ||
Flowing Character

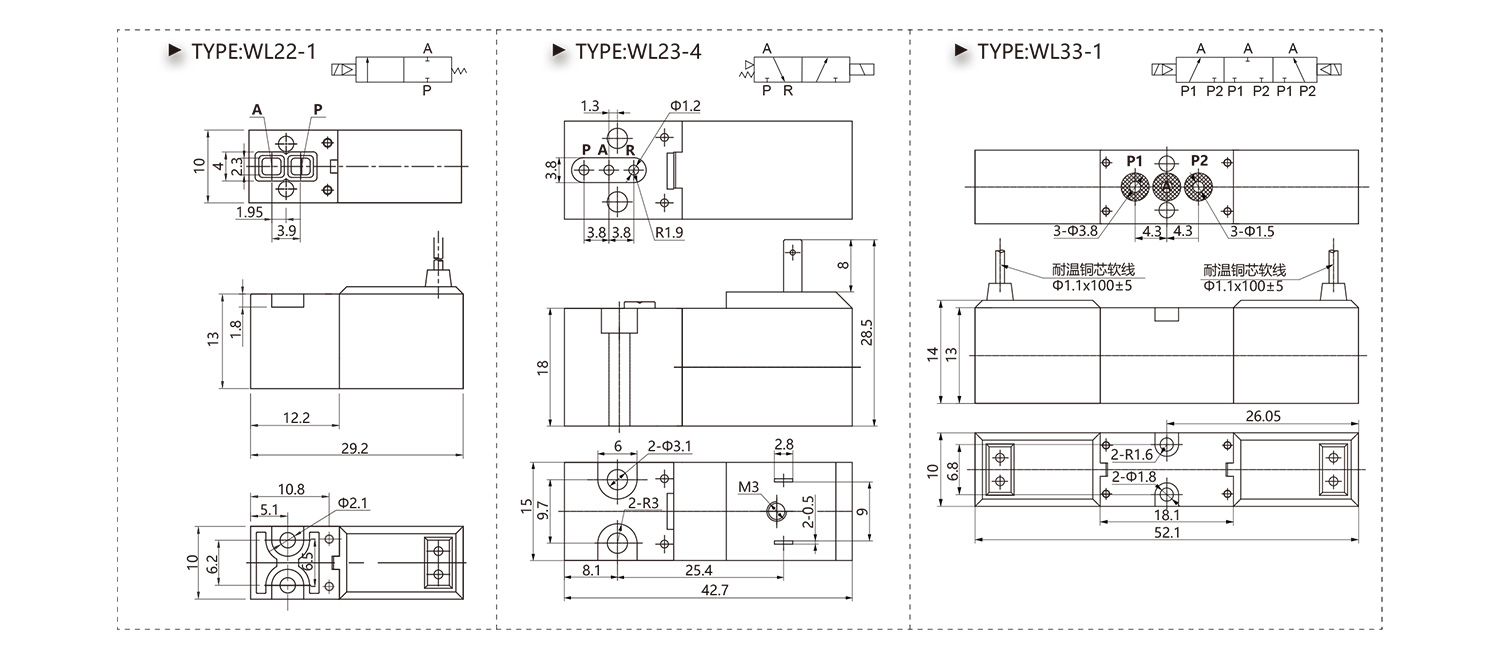

Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China WL Series Ink Dedicated Miniature Solenoid Valve Suppliers and WL Series Ink Dedicated Miniature Solenoid Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our WL Series Ink Dedicated Miniature Solenoid Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
