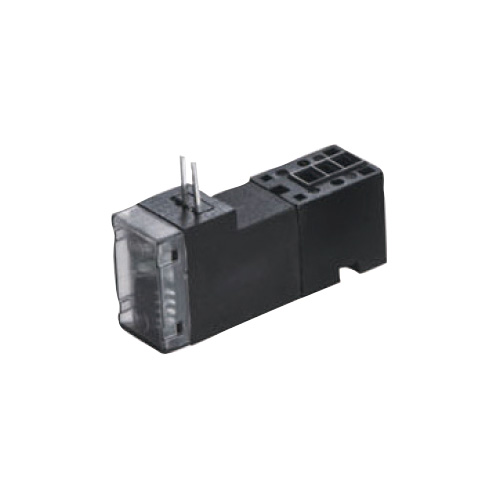

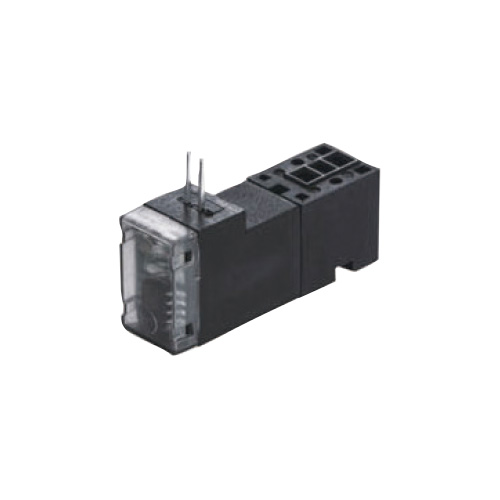

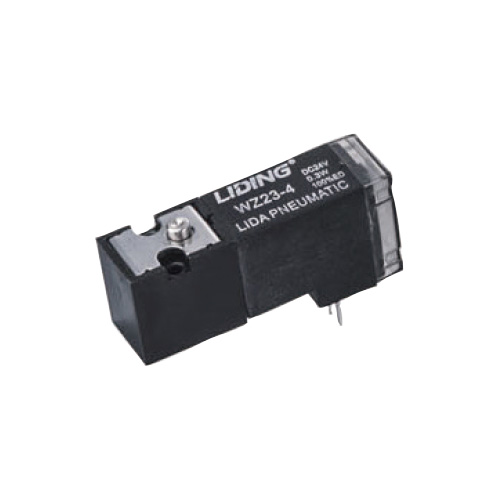

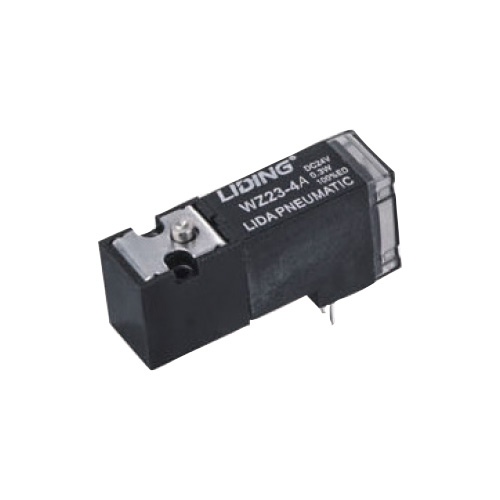

WZ Series Mini-Valve With Low Power And Large Flux
Product Details

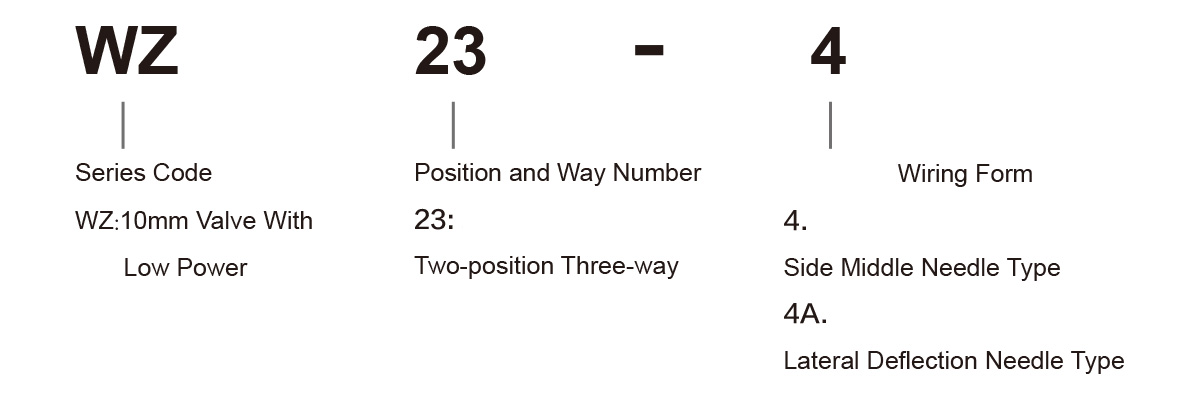

Ordering Code

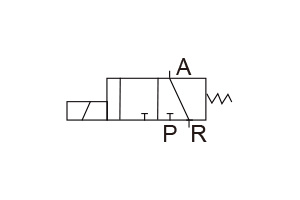

Graphic Symbol
Synopsis
The valve is a new product designed by our company. It is a WI valve with ultra-low energy consumption. The coil power is reduced to (4W) 0.3W after saving energy by high frequency square wave. The valve body is made of high-quality engineering plastics. It is refined by special sealing material and selection process. It has simple appearance, beautiful appearance, small volume, sensitive reversal, good stability and high frequency. Low power consumption, lower temperature rise, large flow, long life, widely used in machinery manufacturing, textile and other fields.
Specification
Model | WZ23-4 | WZ23-4A |
Working Medium | 40 Micron Filtered Air | |
Operating Temperature | -5~50°C | |
Nominal Diameter | Ø1mm | |
0.5 MPa Flow Rate | ≥30L/min | |
Response time(ms) | ≤10ms | |
Max. Operating Frequency | Cycle/Sec | |
Min. Operating Frequency | Cycle/Day | |
Lubrication | Not Lubrication | |
Manual Override | Not Lubrication | |
Working-Pressure | 0~0.7MPa | |
Voltage Range | DC24V | |
Allowable Voltage | ±10% | |
Power Consumption | 4W/0.3W | |
Connection Mode | Plate Connection Type |

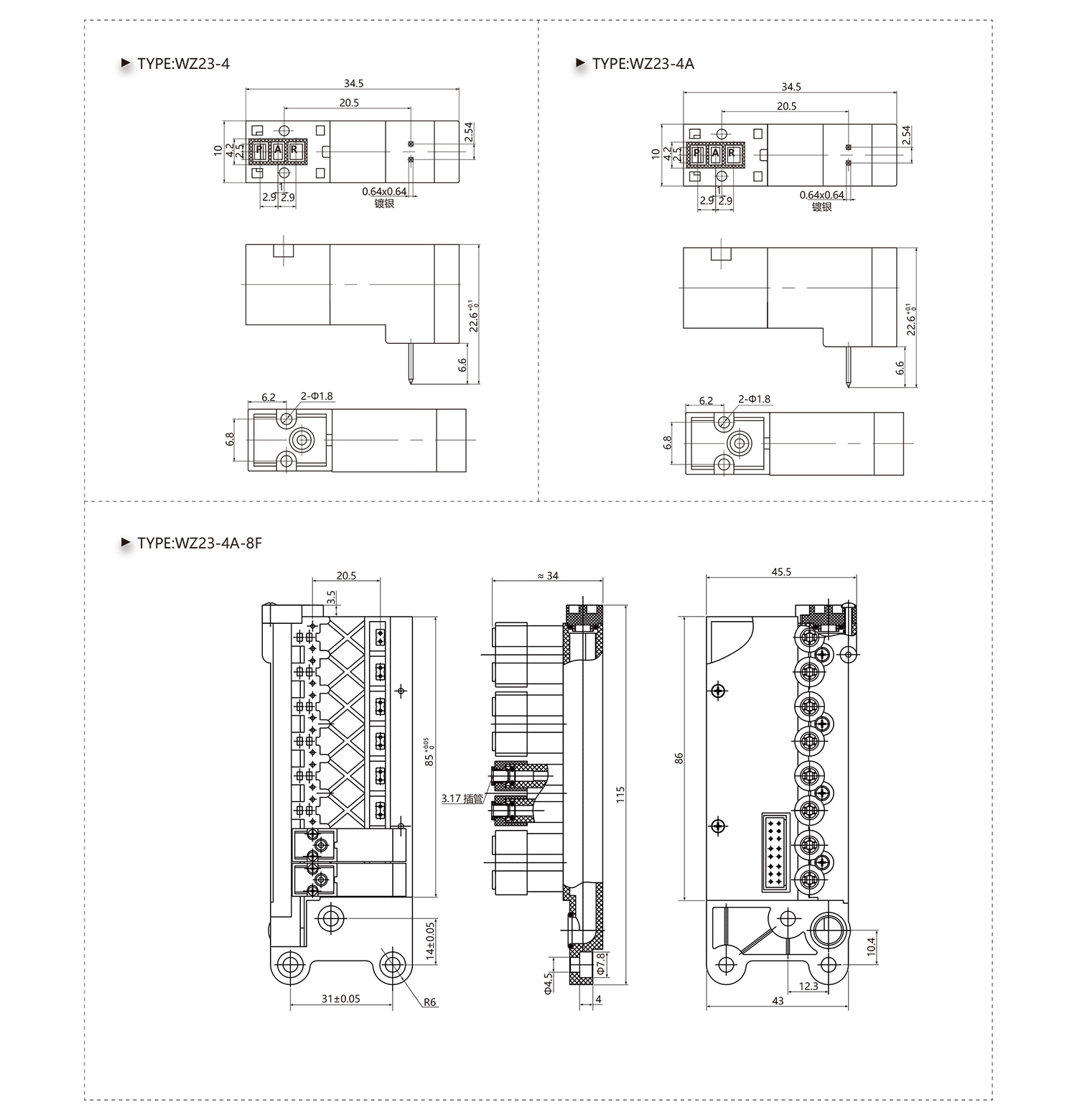

Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China WZ Series Mini-Valve With Low Power And Large Flux Suppliers and WZ Series Mini-Valve With Low Power And Large Flux company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our WZ Series Mini-Valve With Low Power And Large Flux are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
