Non-Return Valve Suppliers

Non-Return Valve

Non-Return Valve

Product Details

0
Views: 1,359

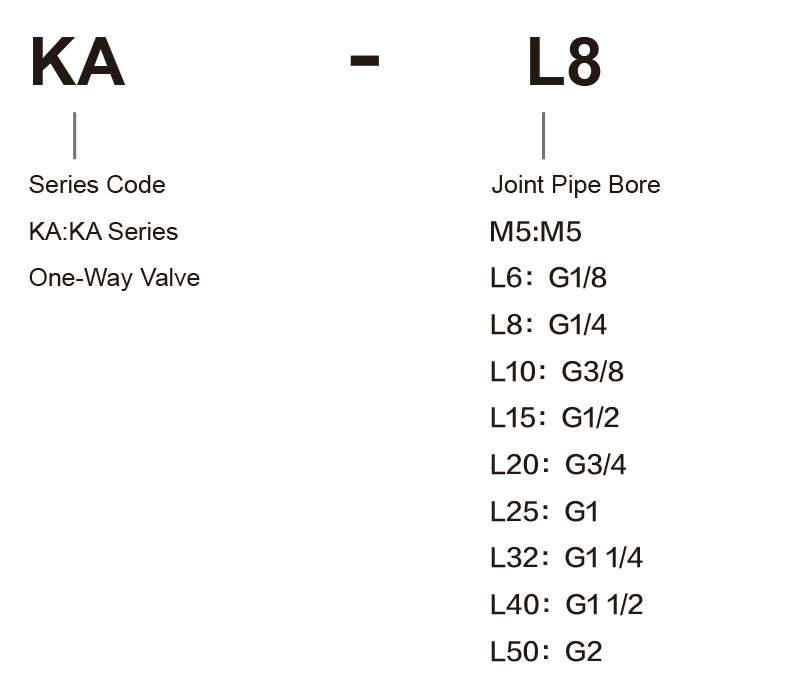

Ordering Code

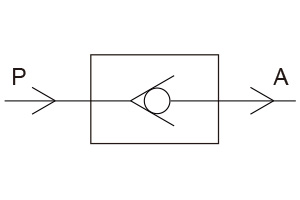

Graphic Symbol





Specification



Model KA-M5          KA-L6 KA-L8 KA-L10 KA-L15 KA-L20 KA-L25 KA-L32 KA-L40 KA-L50
Working Medium 40 Micron Filtered Air
Joint Pipe Bore M5         G1/8 G1/4 G3/8 G1/2  G3/4 G1 G1-1/4 G1-1/2 G2
Operating Temperature 0~60℃
Working-Pressure 0.05~1 .OMPa
Max.Pressure Resistance 1.5MPa

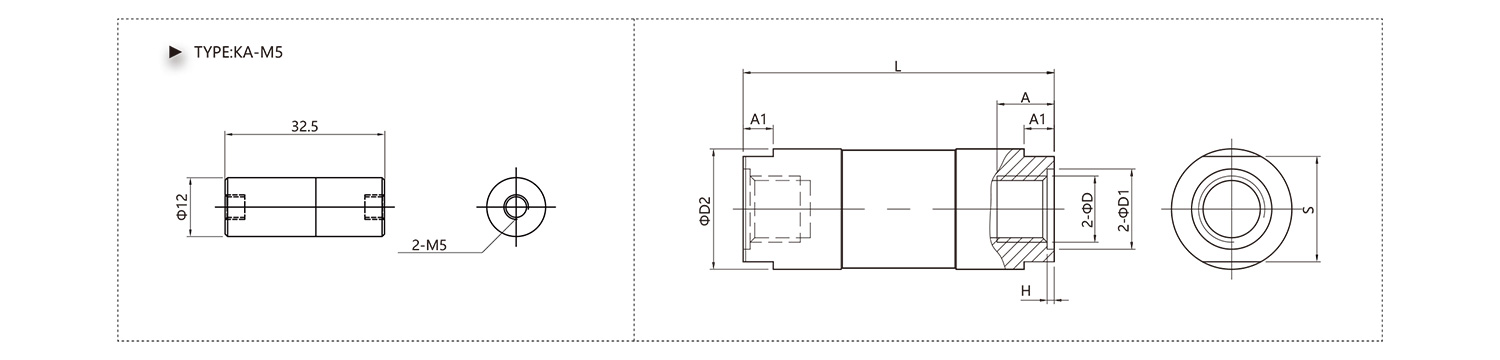

Overall Dimension



Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Non-Return Valve Suppliers and Non-Return Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Non-Return Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
