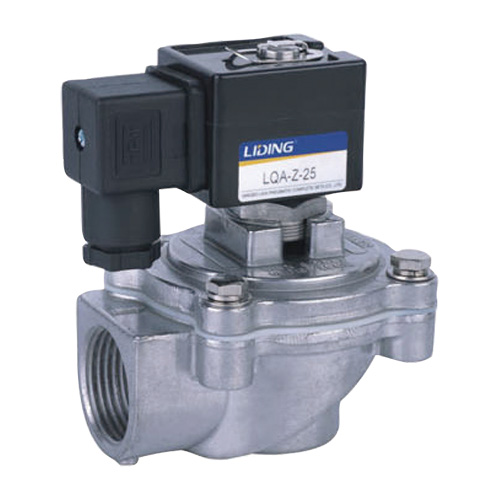

Pulse Valve
Product Details

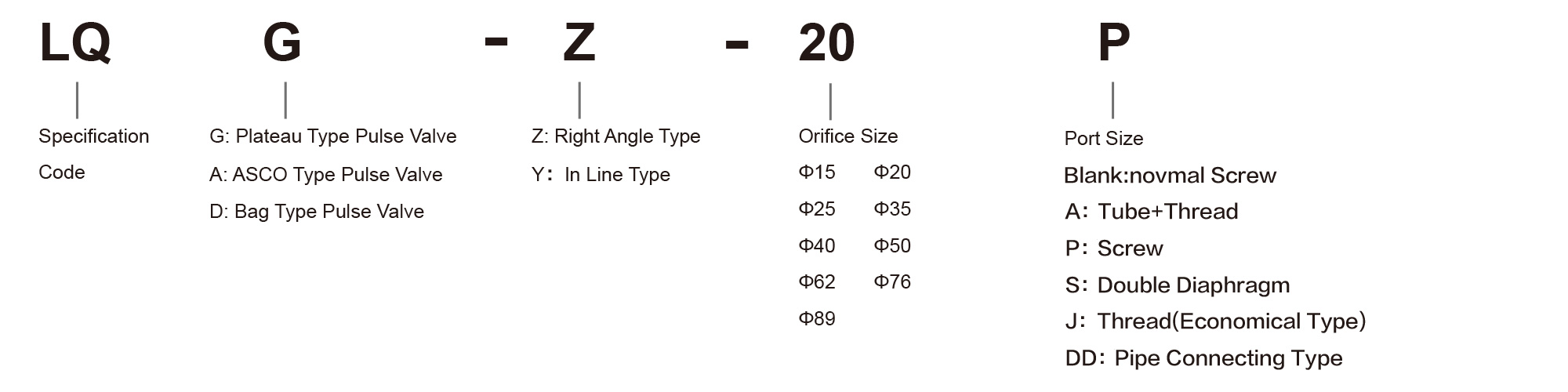

Ordering Code
Specification
| Model | LQG-Z-15 | LQG-Z-20A | LQG-Z-25 | LQG-Z-35 | LQG-Z-40S | LQG-Z-40DD | LQG-Z-50S | LQG-Z-62S | LQG-Z-76S | LQG-Y-89S |
| LQG-Z-20 | LQG-Y-25 | LQG-Z-35 | LQA-Z-40S | LQG-Z-40DD | LQG-Y-50S | LQG-Y-62S | LQG-Y-76S | LQG-Y-89S | ||
| LQA-Z-20J | LQG-Z-25DD | LQD-Z-40S | LQA-Z-50S | LQA-Z-62S | LQA-Z-76S | |||||
| LQA-Z-20 | LQA-Z-25J | LQD-Z-50S | LQD-Z-62S | LQD-Z-76S | ||||||
| LQD-Z-20 | LQA-Z-25 | LQD-Y-50 | LQD-Y-62S | |||||||
| Working Medium | 40 Micron Filtered Air | |||||||||
| Working-Pressure | 0.3~0.8MPa | |||||||||
| Operating Temperature | -25~55℃ | |||||||||
| Operating Temperature | <85% | |||||||||
| Voltage | AC110V/AC220V/DC24V | |||||||||
| Diaphragm Life | Over One Million Times | |||||||||
| Joint Pipe Bore | G1/2 | G3/4 | G1 | G1-1/2 | Φ50 | G2 | G2-1/2 | G3 | Φ89 | |

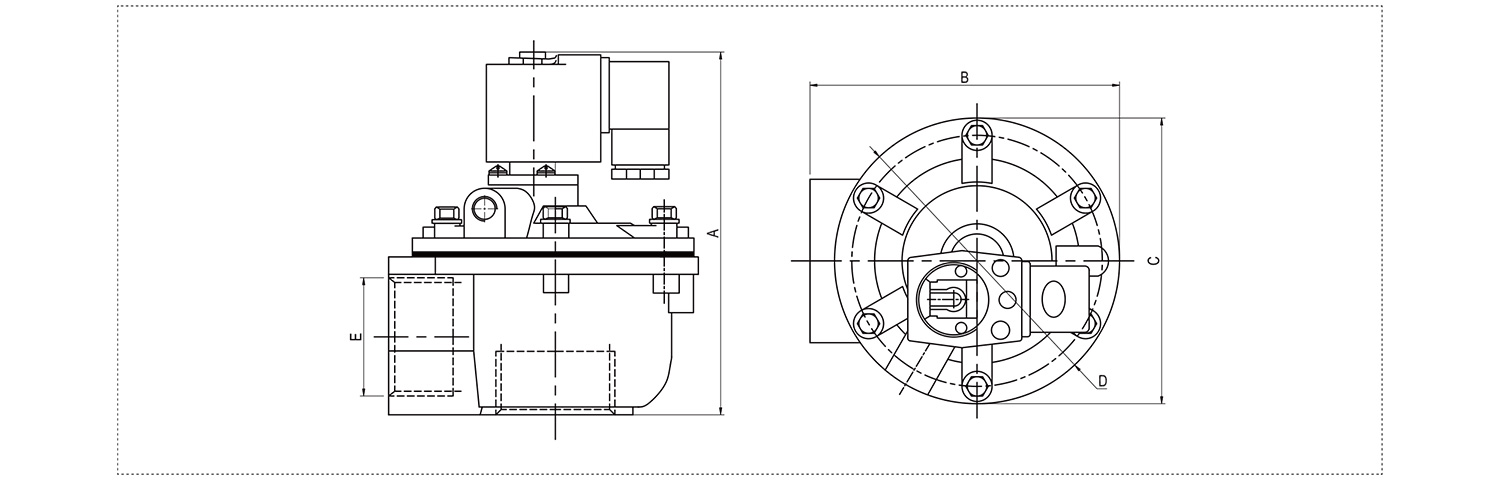

Overall Dimension
| Model | A | B | C | D | E |
| LQG-Z-15 | 125 | 103 | － | Ø93 | G1/2 |
| LQG-Z-20A | 186 | 145 | － | Ø90 | G3/4 |
| LQG-Z-20 | 125 | 103 | － | Ø93 | |
| LQA-Z-20J | 123 | 88 | 77 | － | |
| LQA-Z-20 | 110 | 88 | 77 | － | |
| LQD-Z-20 | 128 | 88 | Ø80 | － | G1 |
| LQG-Z-25 | 124 | 104 | 82.5 | － | |
| LQG-Y-25 | 141 | 94 | － | Ø92 | |
| LQG-Z-25DD | 190 | 129 | 82.5 | － | |
| LQA-Z-25J | 123 | 88 | 77 | － | |
| LQA-Z-25 | 110 | 88 | 77 | － |
| Model | A | B | C | D | E |
| LQD-Z-25 | 136 | 108 | Ø96 | － | － |
| LQG-Z-35 | 142 | 121 | － | Ø112 | G1-1/2 |
| LQG-Z-35 | 125 | 103 | － | Ø93 | |
| LQG-Z-40S | 175 | 138 | － | Ø125 | |
| LQA-Z-40S | 163 | 132 | Ø136 | － | |
| LQD-Z-40S | 184 | 131 | Ø112 | － | |
| LQG-Z-45DD | 236 | 179 | Ø126 | － | Ø50 |
| LQG-Z-50S | 202 | 204 | － | Ø185 | G2 |
| LQG-Y-50S | 178 | 200 | － | Ø159 | |
| LQA-Z-50S | 206 | 165 | Ø165 | － | |
| LQD-Z-50S | 206 | 180 | Ø160 | － |
| Model | A | B | C | D | E |
| LQD-Z-50 | 188 | 178 | 202 | － | G2 |
| LQG-Z-62S | 225 | 210 | － | Ø185 | G2-1/2 |
| LQG-Y-62S | 197 | Ø227 | － | Ø185 | |
| LQA-Z-62S | 206 | 167.5 | Ø165 | － | |
| LQD-Z-62S | 226 | 204 | Ø188 | － | |
| LQD-Y-62S | 196 | 209 | 237 | － | |
| LQG-Z-76S | 238 | 230 | － | Ø200 | G3 |
| LQG-Y-76S | 205 | Ø249 | － | Ø200 | |
| LQA-Z-76S | 187 | 225 | 195 | － | |
| LQD-Y-76S | 200 | 219 | 249 | － | |
| LQG-Y-89S | 190 | Ø200 | － | Ø158 | Ø89 |
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Pulse Valve Suppliers and Pulse Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Pulse Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
