Shuttle Valve
Product Details

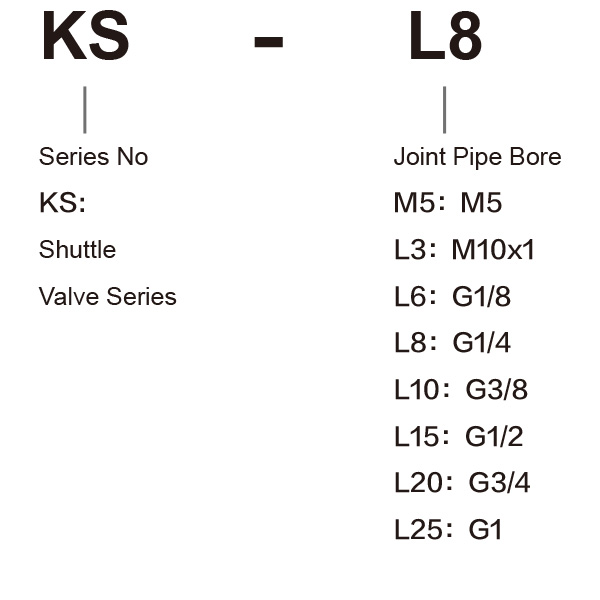

Ordering Code

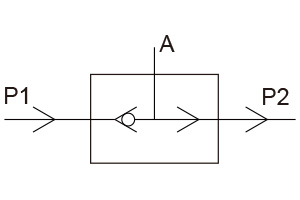

Graphic Symbol
Specification
| Model | KS-M5 | KS-L3 | KS-L6 | KS-L8 | LS-L10 | KS-L15 | KS-L20 | KS-L25 |
| Working Medium | 40 Micron Filtered Air | |||||||
| Joint Pipe Bore | M5 | M10×1 | G1/8 | G1/4 | G3/8 | G1/2 | G3/4 | G1 |
| Operating Temperature | 0～60℃ | |||||||
| Working-Pressure | 0.5～0.8MPa | |||||||
| Max.Pressure Resistance | 1.2MPa | |||||||

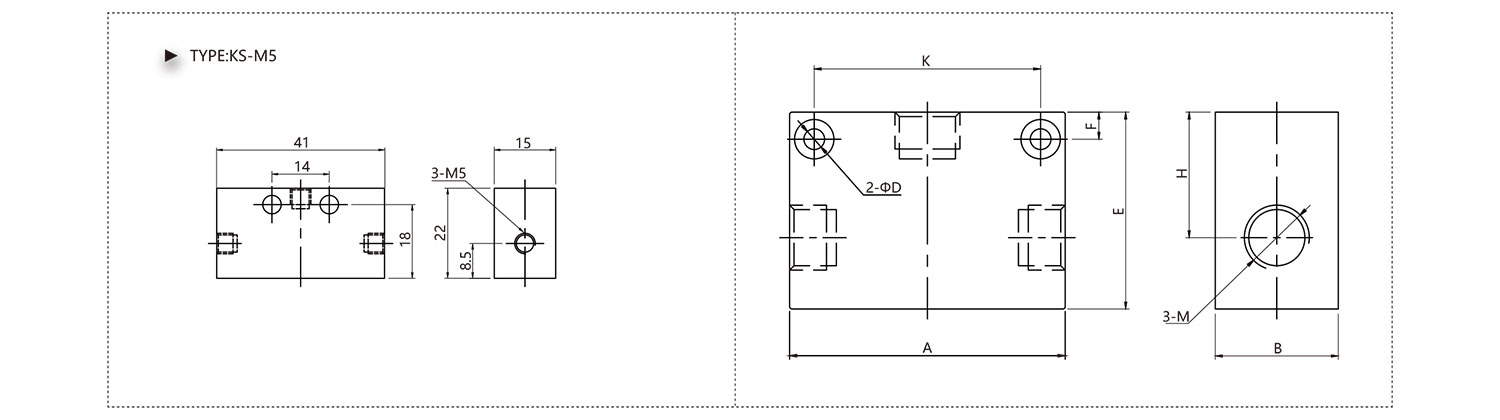

Overall Dimension
Dimension Sheet
| Model | Aperture | A | B | D | E | F | H | K | M |
| KS-L3 | 3 | 38 | 18 | 3.6 | 26 | 4 | 16 | 20 | M10x1 |
| KS-L6 | 6 | 56 | 25 | 4.8 | 40 | 9 | 26 | 36 | M10x1 (G1/8) |
| KS-L8 | 8 | 56 | 25 | 4.8 | 40 | 9 | 26 | 36 | M12x1.25 (G1/4) |
| KS-L10 | 10 | 70 | 34 | 7 | 50 | 10 | 32 | 48 | M16x1.5 (G3/8) |
| KS-L15 | 15 | 70 | 34 | 7 | 50 | 10 | 32 | 48 | M20x1.5 (G1/2) |
| KS-L20 | 20 | 95 | 50 | 7 | 75 | 10 | 48 | 72 | M27x2 (G3/4) |
| KS-L25 | 25 | 95 | 50 | 7 | 75 | 10 | 48 | 72 | M33x2 (G1) |
