Special Valve Set 3V
Product Details

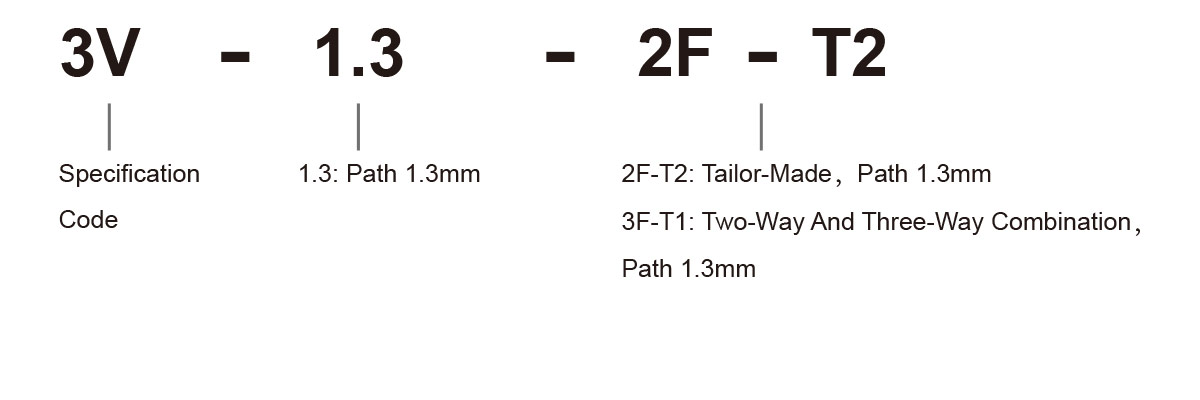

Ordering Code
Specification
|
Model |
3V1.3-2F-T2 |
3V1.3-3F-T1 | |||
|
Working Medium |
40 Micron Filtered Air |
||||
|
Motion Pattern |
Two-Position Three-Way Normally Closed |
||||
|
Path(mm) |
1.3 |
||||
|
Working-Pressure |
0~0.8MPa |
Two-Way | 0~0.3MPa | Three-Way | 0~0.7MPa |
|
Power Consumption |
DC:4.8W |
||||
|
Connection Threads |
G1/8 |
||||
|
Material of Oil Seal |
NBR |
||||

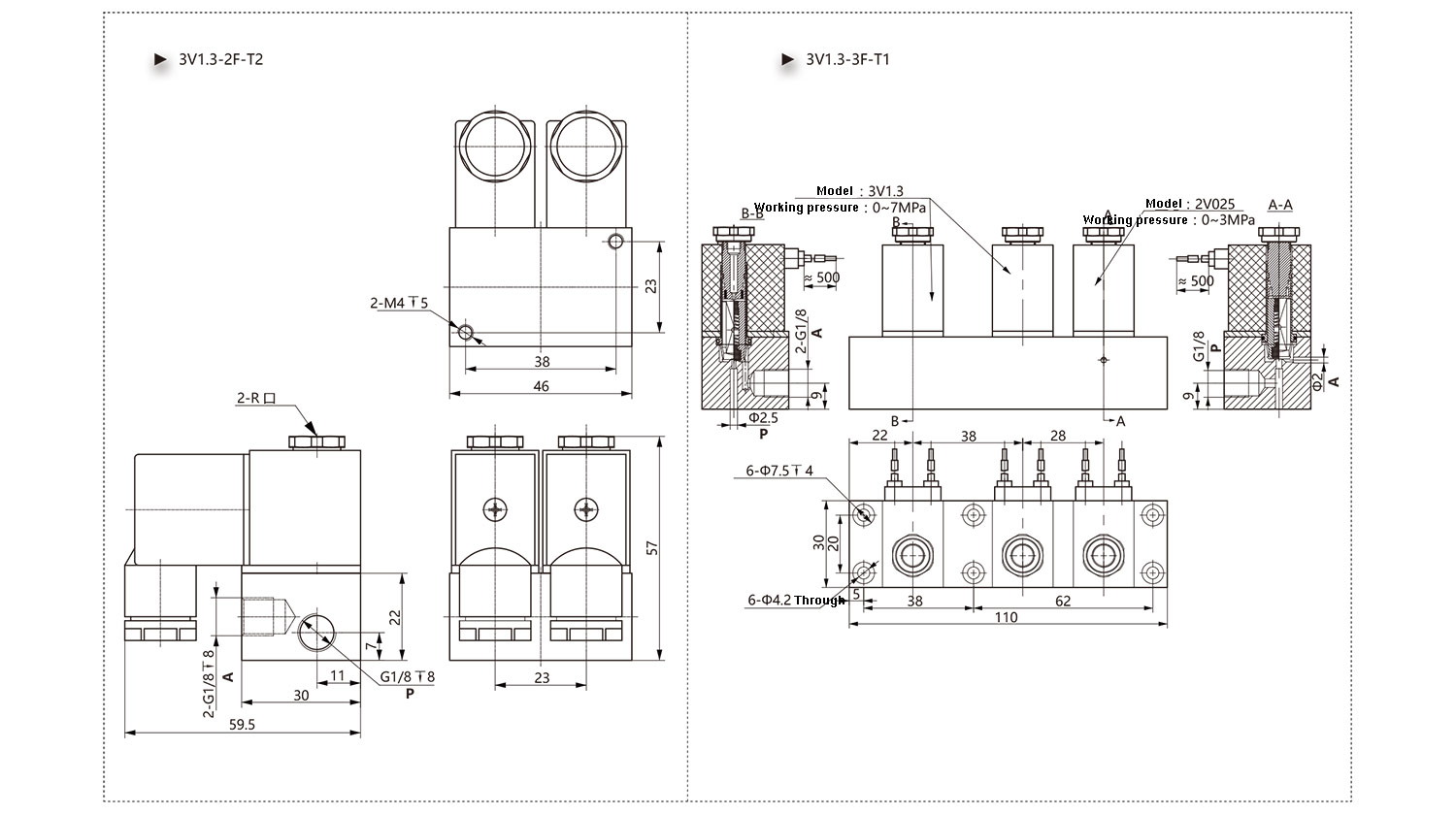

Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China Special Valve Set 3V Suppliers and Special Valve Set 3V company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our Special Valve Set 3V are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
