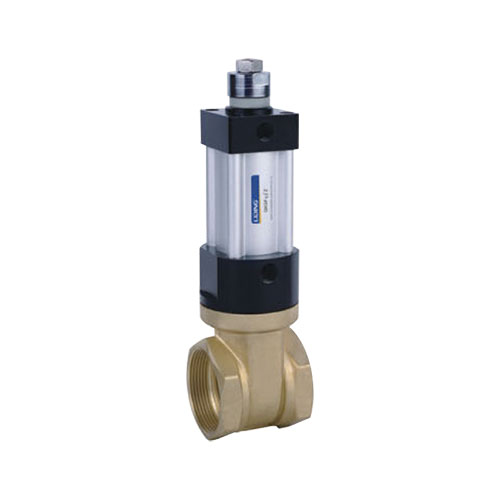

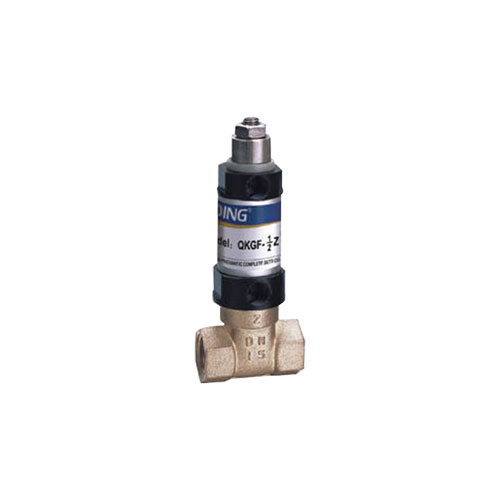

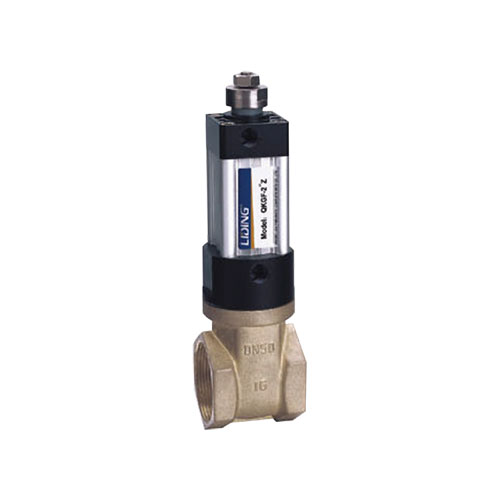

QKGF-Z Series Pneumatic Control Pipe Valve
Product Details

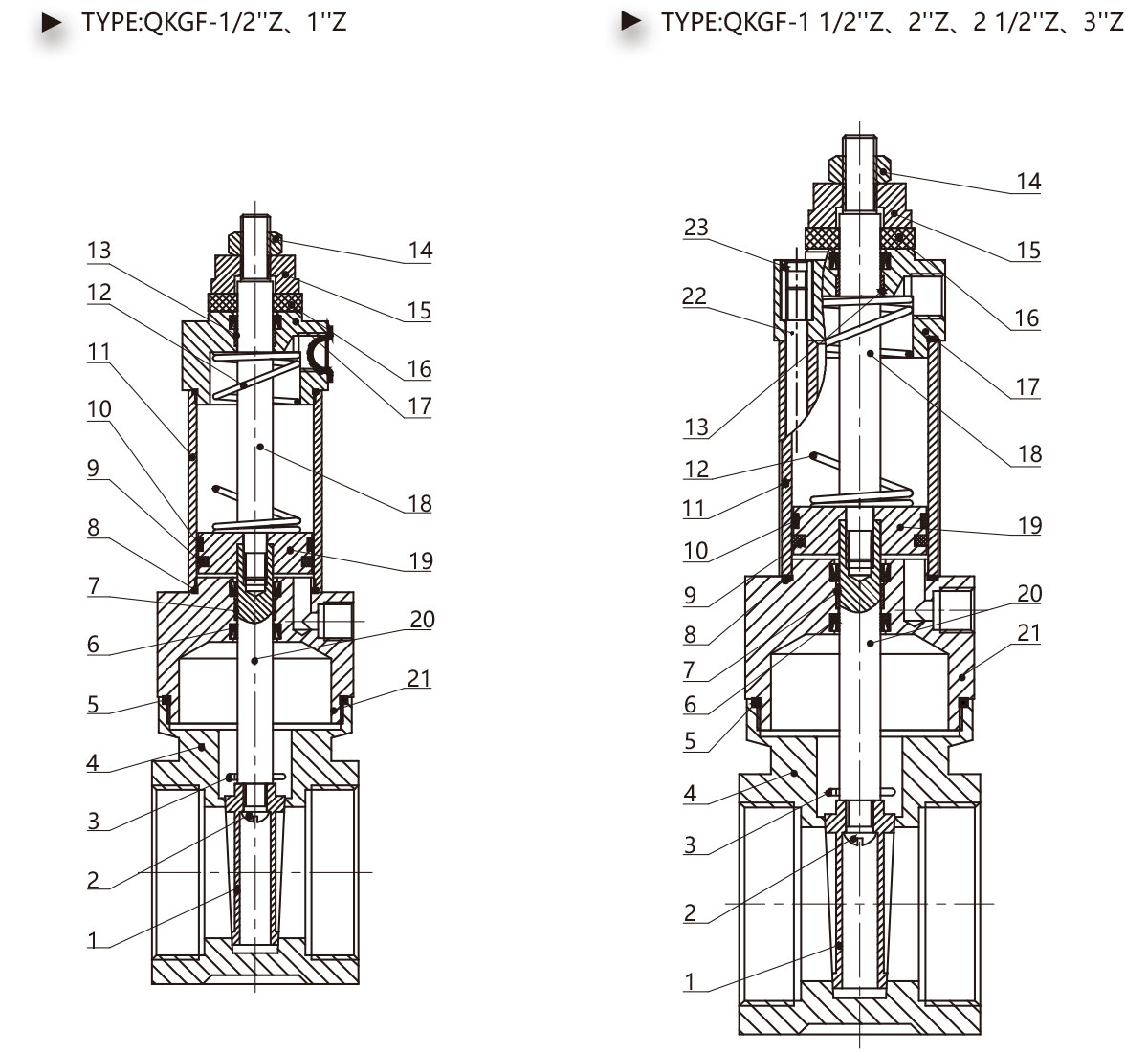

Inner Constuction
| Seria Numbe |
Name |
| 1 | Plate |
| 2 | Bolt |
| 3 | Pin |
| 4 | Valve Body |
| 5 | Valve Body O-Ring |
| 6 | Y-Ring Seal |
| 7 | Bearing |
| 8 | Tube O-Ring |
| 9 | C-Ring Seal |
| 10 | Wear-Ring |
| 11 | Aluminum Cylinder Tube |
| 12 | Spring |
| 13 | Bearing |
| 14 | Nut |
| 15 | Adjust Nut |
| 16 | Buffer Cushion |
| 17 | Behind Cover |
| 18 | Behind Piston Rod |
| 19 | Piston |
| 20 | Front Piston Rod |
| 21 | Front Cover |
| 22 | Tie Rod |
| 23 | Tie Rod Nut |
Specification
| Model | QKGF-1/2"Z | QKGF-1"Z | QKGF-1 1/2"Z | QKGF-2"Z | QKGF-2 1/2"Z | QKGF-3"Z |
| Aperture of Flow Rate | 15 | 25 | 40 | 50 | 65 | 80 |
| Joint Pipe Bore | In=Out=G1/8 | |||||
| Controling Medium | 40 Micron Filtered Air | |||||
| Working Medium | Water、Oil、Air、Pulpy Liquid Medium Ect. | |||||
| Operating Temperature | -40～100℃ | |||||
| Controling-Pressure | 0.25～0.8MPa | |||||
| Working-Pressure | 0.1～1 MPa | ﹣ | ||||

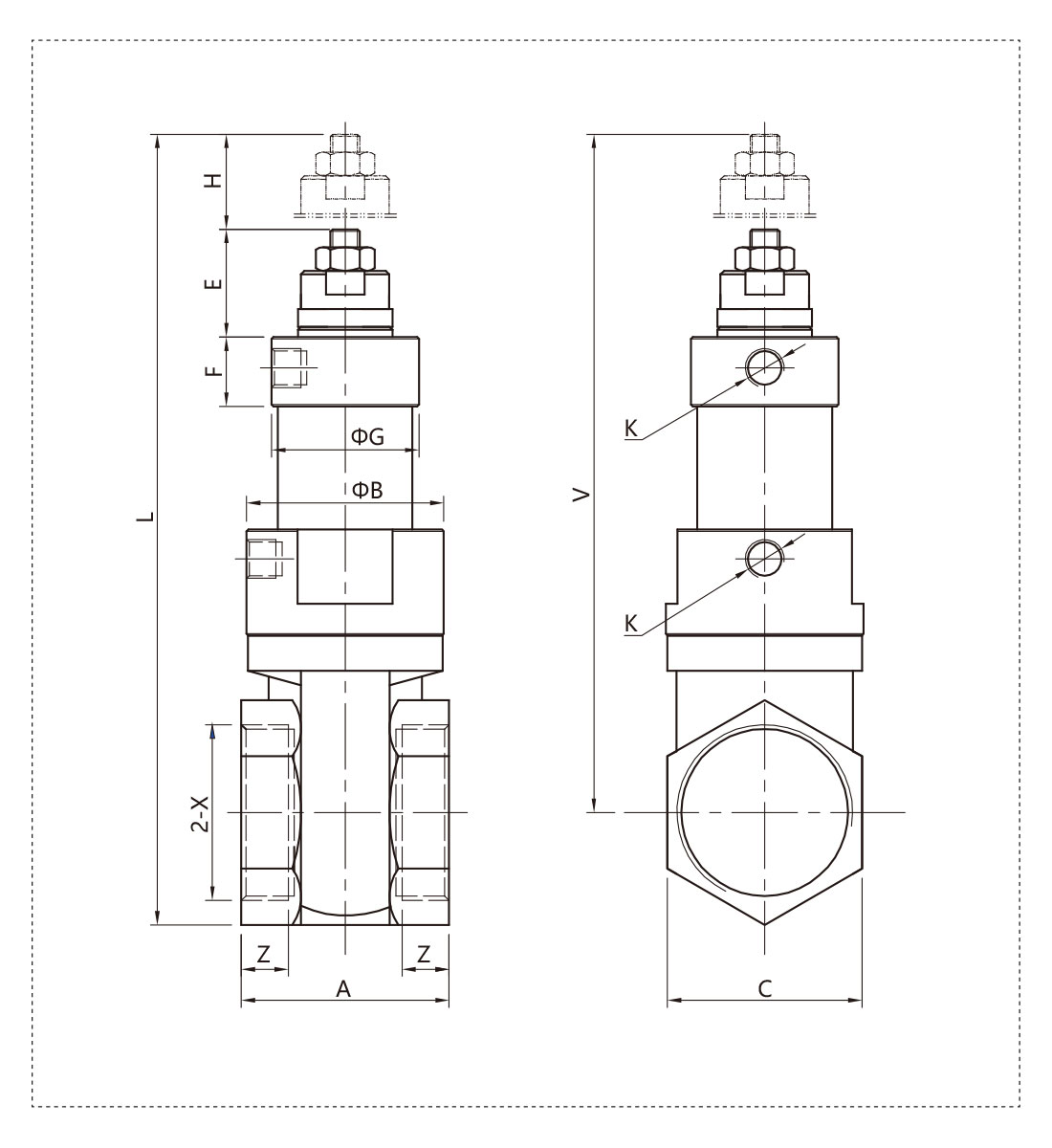

Overall Dimension
Dimension Shee
|
Model |
A |
B |
C |
E |
F |
G |
L |
V |
K |
H |
X |
Z |
|
QKGF-1/2''Z |
49 |
35 |
25 |
22 |
12 |
31 |
140 |
126 |
G1/8" |
12 |
G1/2" |
13 |
|
QKGF-1''Z |
55 |
39 |
38 |
24 |
13 |
34 |
179 |
157 |
G1/8" |
21 |
G1" |
16 |
|
QKGF-1 1/2''Z |
62 |
56 |
54 |
28 |
22 |
49 |
259 |
218 |
G1/8" |
33 |
G1 1/2" |
16 |
|
QKGF-2''Z |
69 |
67 |
66 |
33 |
27 |
49 |
306 |
268 |
G1/4" |
43 |
G2" |
18 |
|
QKGF-2 1/2''Z |
88 |
82 |
84 |
35 |
31 |
62 |
366 |
318 |
G1/4" |
54 |
G2 1/2" |
20 |
|
QKGF-3''Z |
95 |
96 |
96 |
52 |
42.5 |
74 |
450 |
395 |
G3/8" |
60 |
G3" |
22 |

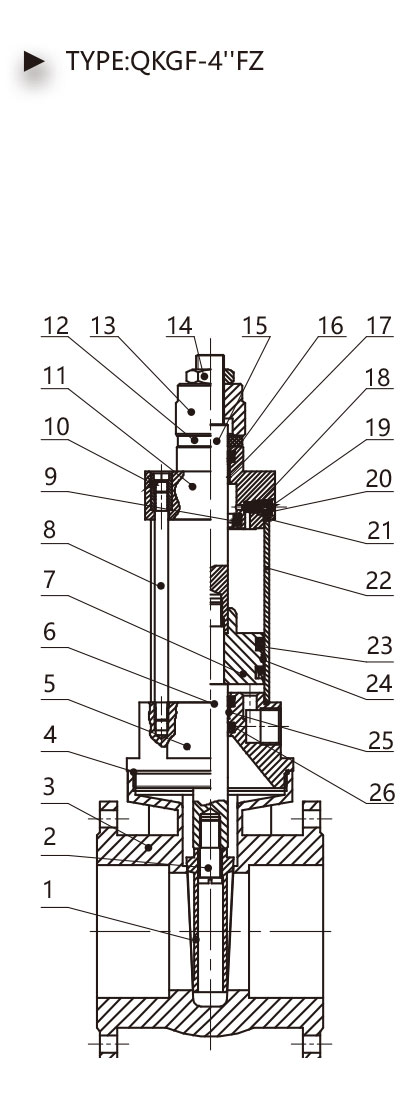

Inner Constuction
| Serial Numbe |
Name |
| 1 | Plate |
| 2 | Connecting Bolt |
| 3 | Valve Body |
| 4 | O-Ring Seal |
| 5 | Front Cover |
| 6 | Front Piston Rod |
| 7 | Piston |
| 8 | Tie Rod |
| 9 | Buffer Ring |
| 10 | Tie Rod Nut |
| 11 | Behind Cover |
| 12 | Buffer Cushion |
| 13 | Adjust Nut |
| 14 | Nut |
| 15 | Behind Piston Rod |
| 16 | Dustproof Ring |
| 17 | Bearing |
| 18 | Buffer Bolt |
| 19 | Snap Cushion Ring |
| 20 | O-Ring Seal |
| 21 | O-Ring Seal |
| 22 | Cylinder Tube |
| 23 | Y-Ring Seal |
| 24 | Wear-Ring |
| 25 | Bearing |
| 26 | Y-Ring Seal |

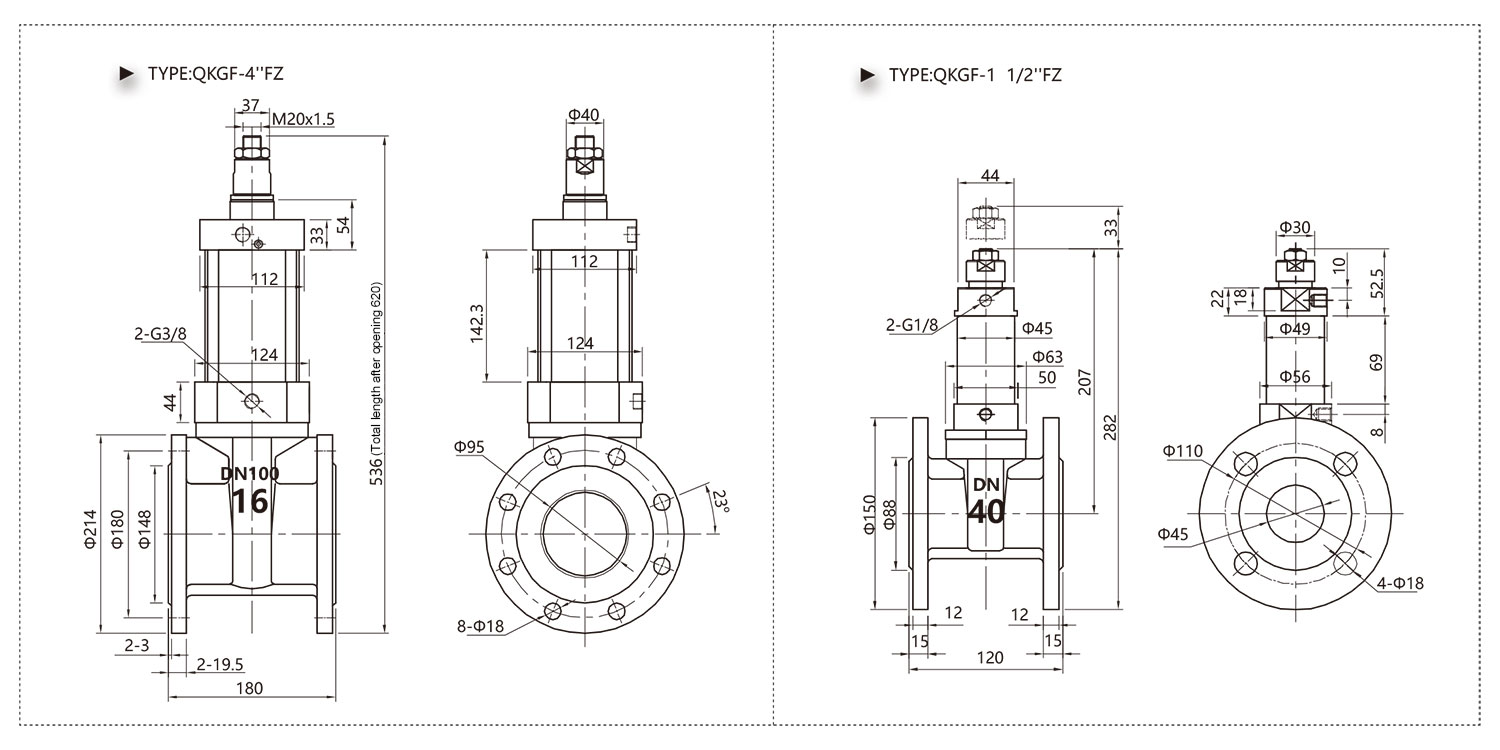

Overall Dimension
Our company area has 10000 square and adopted the ISO9001:2015 quality management system certification, the United Kingdom QEC certification and CE certification. As a professional China QKGF-Z Series Pneumatic Control Pipe Valve Suppliers and QKGF-Z Series Pneumatic Control Pipe Valve company,we has participated in the many national standard system revision work like' direction control valve' pneumatic pipe joint test method" and so on. Otherwise, our products have won more than 30 countries registered patents, including 3 invention patents, 20 new utility models. Our QKGF-Z Series Pneumatic Control Pipe Valve are widely used in knitting, medical, food, packaging, petrochemical, metallurgy, coating, vehicles and other mechanical equipment industry.
